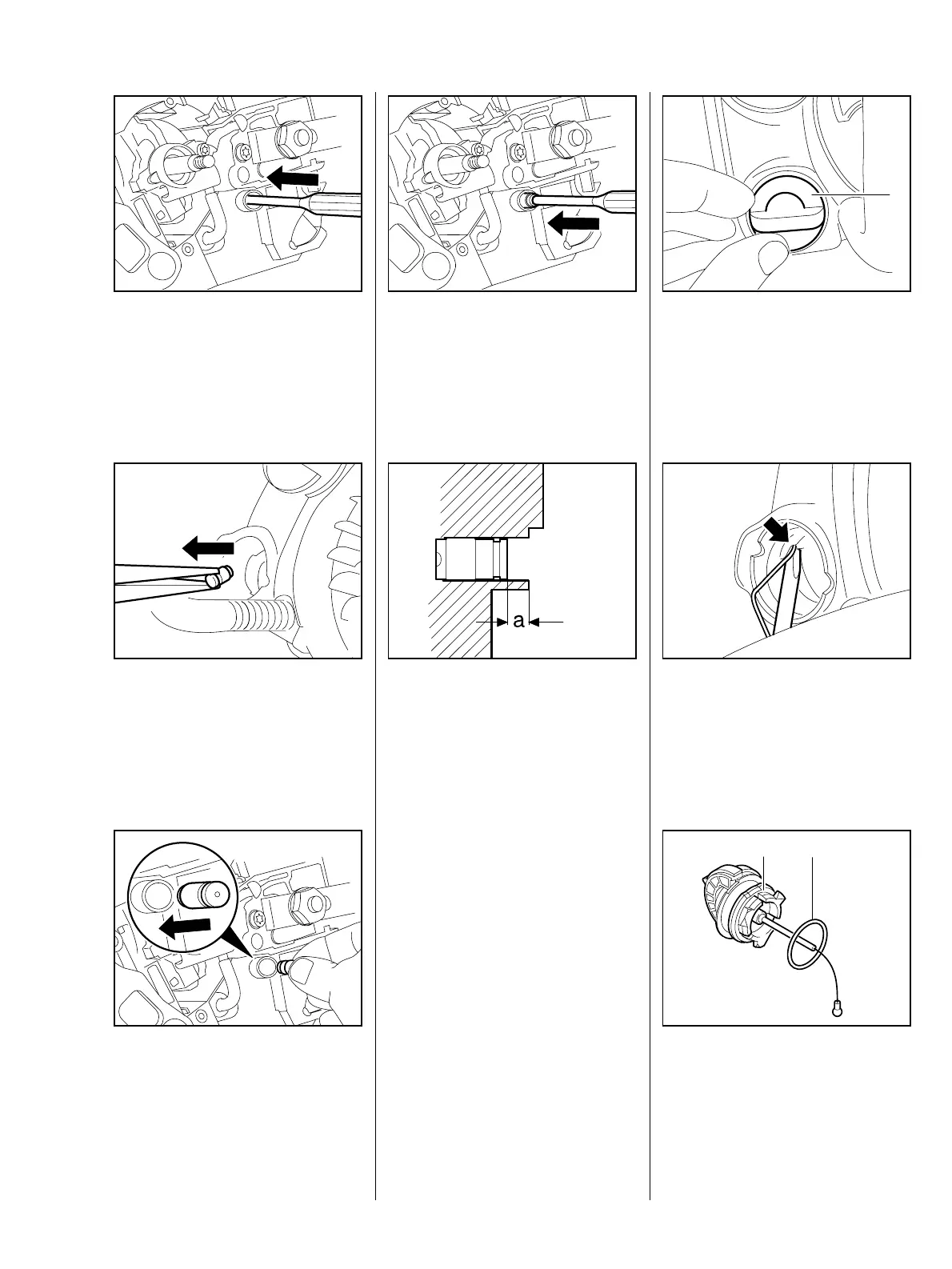

71MS 192 T
: Carefully drive the valve out of
the tank wall into the tank with a
drift dia. 6 mm.
217RA193 TG
: Remove the old valve from the oil
tank.
217RA194 TG
Ensure that the parts are installed
correctly.
: Carefully fit the valve in the hole
in the engine housing.
217RA195 TG
: Carefully drive the valve out into
the hole in the engine housing
with a drift dia. 6 mm, working
from the outside.
217RA196 TG
: Fit a new valve in the hole
a = approx. 8...10 mm.
– Reassemble remaining parts in
reverse order.
217RA339 TG
: Lift up the safety latch and
unscrew the tank filler cap (1).
217RA311 TG
1
: Prise the nipple out from inside
the tank (arrow).
217RA312 TG
: Examine the filler cap (1), cord
and sealing ring (2) and replace if
necessary.
The filler cap is supplied complete
with cord and sealing ring.
2
217RA313 TG
1
13.5 Oil Tank Filler Cap

Stihl MS 192 T Specifications

General

Engine Displacement	30.1 cc
Recommended bar length	30 cm
Engine Power	1.3 kW
Guide Bar Length	30-35 cm
Fuel Capacity	0.27 liters
Chain Oil Capacity	0.22 liters
Chain pitch	3/8"
