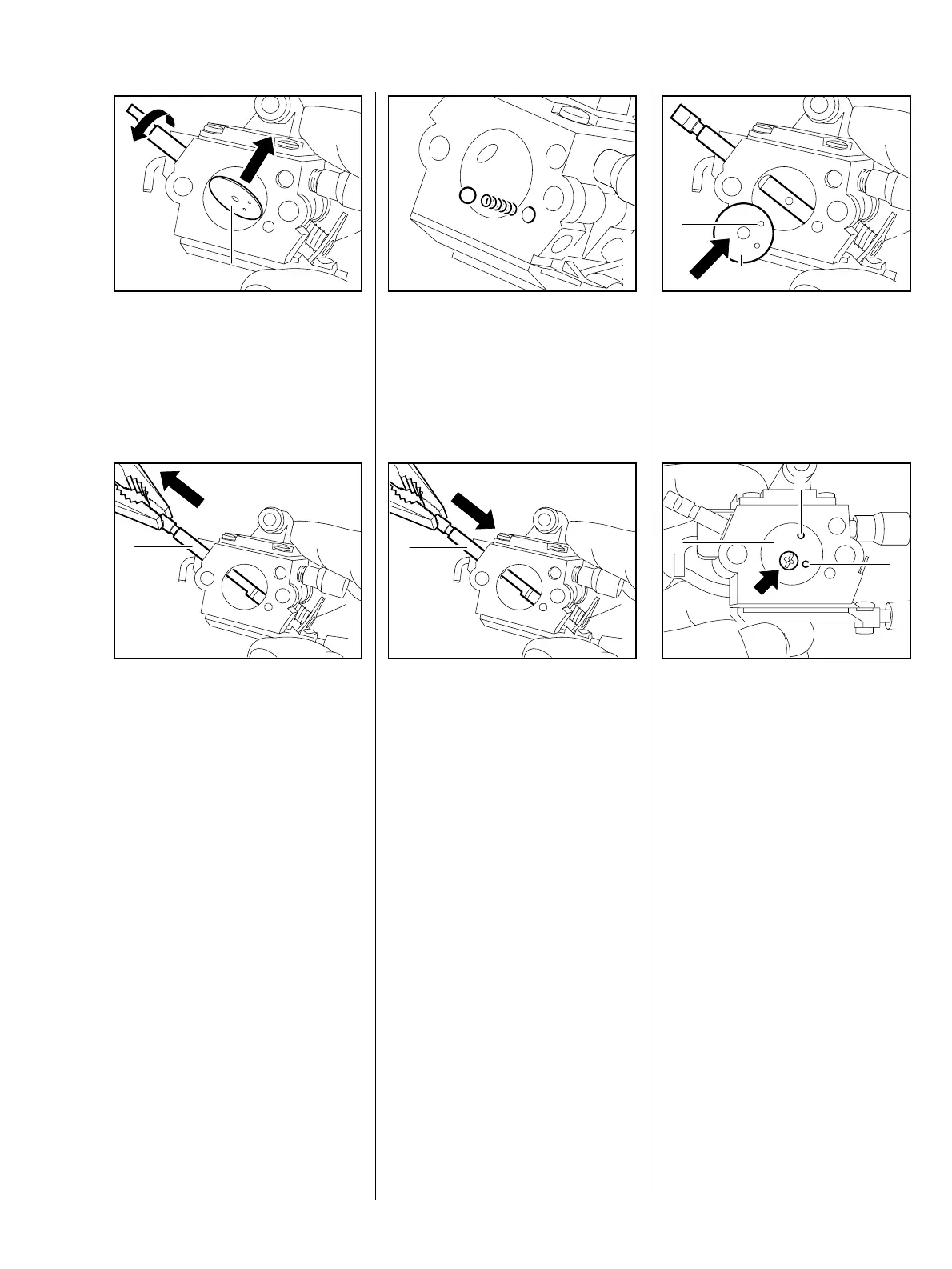

79MS 192 T
: Turn the choke shaft
anticlockwise with a suitable tool
and remove the choke
shutter (1).
1
217RA346 TG
Take care that the ball and spring do
not pop out when removing the
choke shaft (1).
– Wear safety glasses
: Pull out the choke shaft (1) and
clean it with the guides.
217RA216 TG
1
Examine the choke shaft for
signs of damage and replace it if
necessary.
: Examine the ball and spring and
replace if necessary.
217RA363 TG
Ensure that the spring and ball are
correctly fitted before installing the
choke shaft.
: Slide the choke shaft (1) into the
carburetor body until it engages.
217RA215 TG
1
Turn the choke shaft until the flat
area is visible.
: Fit the choke shutter (1) with the
hole (2) at the front.
.
2
1
217RA217 TG
The choke shutter (3) must be
installed so that hole (1) is above
and hole (2) axially parallel with the
choke shaft.
Secure the screw with Loctite,
b 16
3
1
2
217RA218 TG
: Fit the new screw (arrow) in the
shaft and tighten it moderately.
Close the choke shutter (3) and
centre it in the bore of the
carburetor body.
Tighten down the screw.
Check correct functioning and
easy movement.
