Stihl MS 192 T Manual

86 MS 192 T

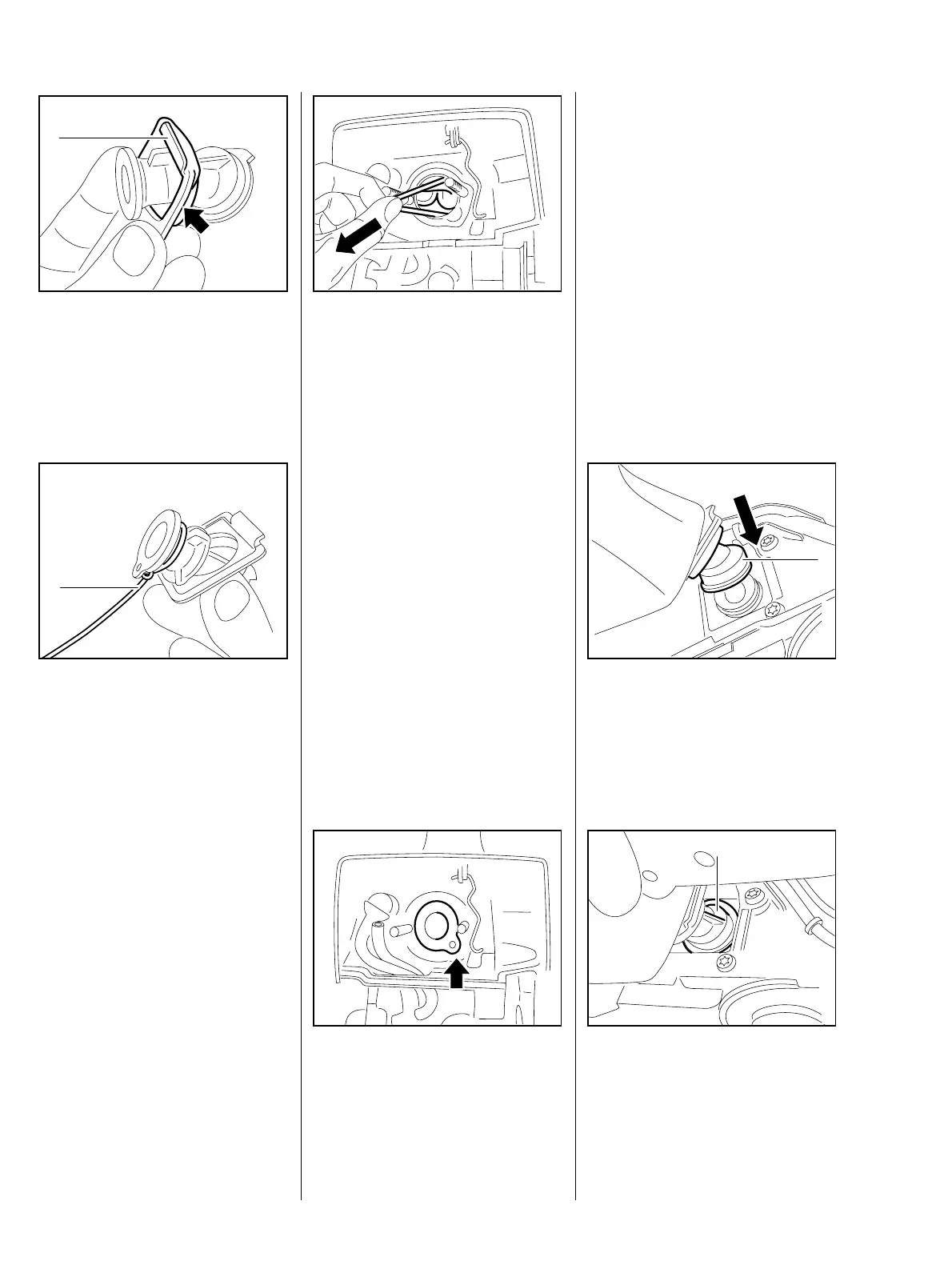

: Before installing the intake elbow,
slide the supporting plate onto
the elbow so that the rebate
(arrow) and tab (1) face the
carburetor.
217RA267 TG
1
: To draw the elbow flange into the
intake port of the tank housing,
wrap a piece of string (1)
approx. 15 cm long round the
elbow and guide the ends of the
string through the intake port.
– Position the elbow on the handle
1
217RA268 TG
housing.
: Draw the ends of the string
through the intake port with the
elbow flange.
– Coat with STIHL Press Fluid,
b 16
In this way, the elbow flange is fitted
217RA269 TG
through the intake port of the tank
housing without damaging it.
– Ensure that the flange is correctly
seated in the handle housing.
The tab on the elbow flange (arrow)
must be aligned so that the hole is
lined up with the opening in the
handle housing.
217RA270 TG
The tab on the elbow flange must
not cover the opening in the handle
housing otherwise the impulse hose
will not operate correctly.
: Push the elbow (1) onto the
intake port (arrow).
217RA263 TG
1
: Ensure that the elbow (1)
completely encloses the intake
port.
217RA271 TG
1
