MS 192 T, MS 192 TC
English
39

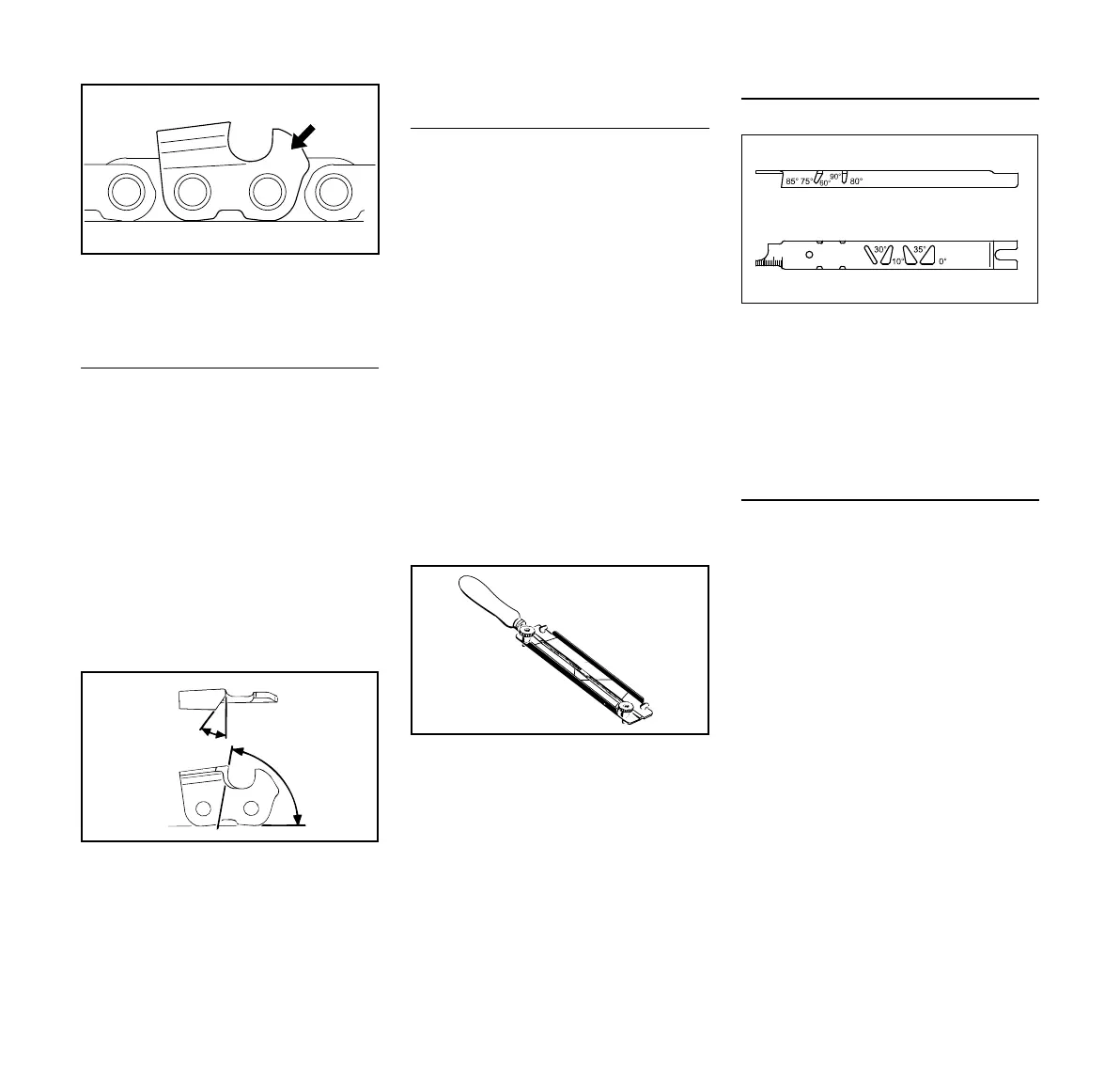

The chain pitch (a) is marked on the
depth gauge end of each cutter.
Use only special saw chain
sharpening files. Other files have the
wrong shape and cut.
Select file diameter according to chain
pitch – see table “Sharpening Tools”.
You must observe certain angles when
resharpening the chain cutter.
A Filing angle
B Side plate angle
The specified angles A and B are
obtained automatically if the
recommended files or sharpening tools
and correct settings are used.
The angles must be the same on all
cutters. If the angles are uneven: Chain
will run roughly, not in a straight line,
wear quickly and finally break.
As these requirements can be met only
after sufficient and constant practice:
N Use a file holder
A file holder must be used for manual
resharpening (see table "Sharpening
Tools"). The correct filing angles are
marked on the file holder.
For checking angles
Use a STlHL filing gauge (special
accessory, see table "Sharpening
Tools"). This is a universal tool for
checking the filing and side plate angles,
depth gauge setting, cutter length and
groove depth. It also cleans the guide
bar groove and oil inlet holes.
File correctly
N Select sharpening tools according
to chain pitch.
N Clamp the bar in a vise if necessary.
N Lock the chain – push hand guard
forward.
N To rotate the chain – pull hand
guard against handle to disengage
the chain brake On models with
Quickstop Plus, also press down
the throttle trigger lockout lever.
N Sharpen the chain frequently, take
away as little metal as possible –
two or three strokes of the file are
usually enough.
Mark (a) Chain pitch
inch mm
1/4 or 1 1/4 6,35
P, PM or 6 3/8 P 9,32
325 or 2 0.325 8,25
3/8 or 3 3/8 9,32
404 or 4 0.404 10,26
Chain type Angle (°)
AB
Rapid Micro (RM) 30 75
Rapid Super (RS) 30 60
Picco Micro (PM) 30 75
Rapid Micro X (RMX, rip-
ping chain)
10 75
Rapid Micro X (RMX, rip-
ping chain)
10 75
Cutter shapes
Micro = Semi-chisel
Super = Full chisel
