MS 192 T, MS 192 TC
English
40

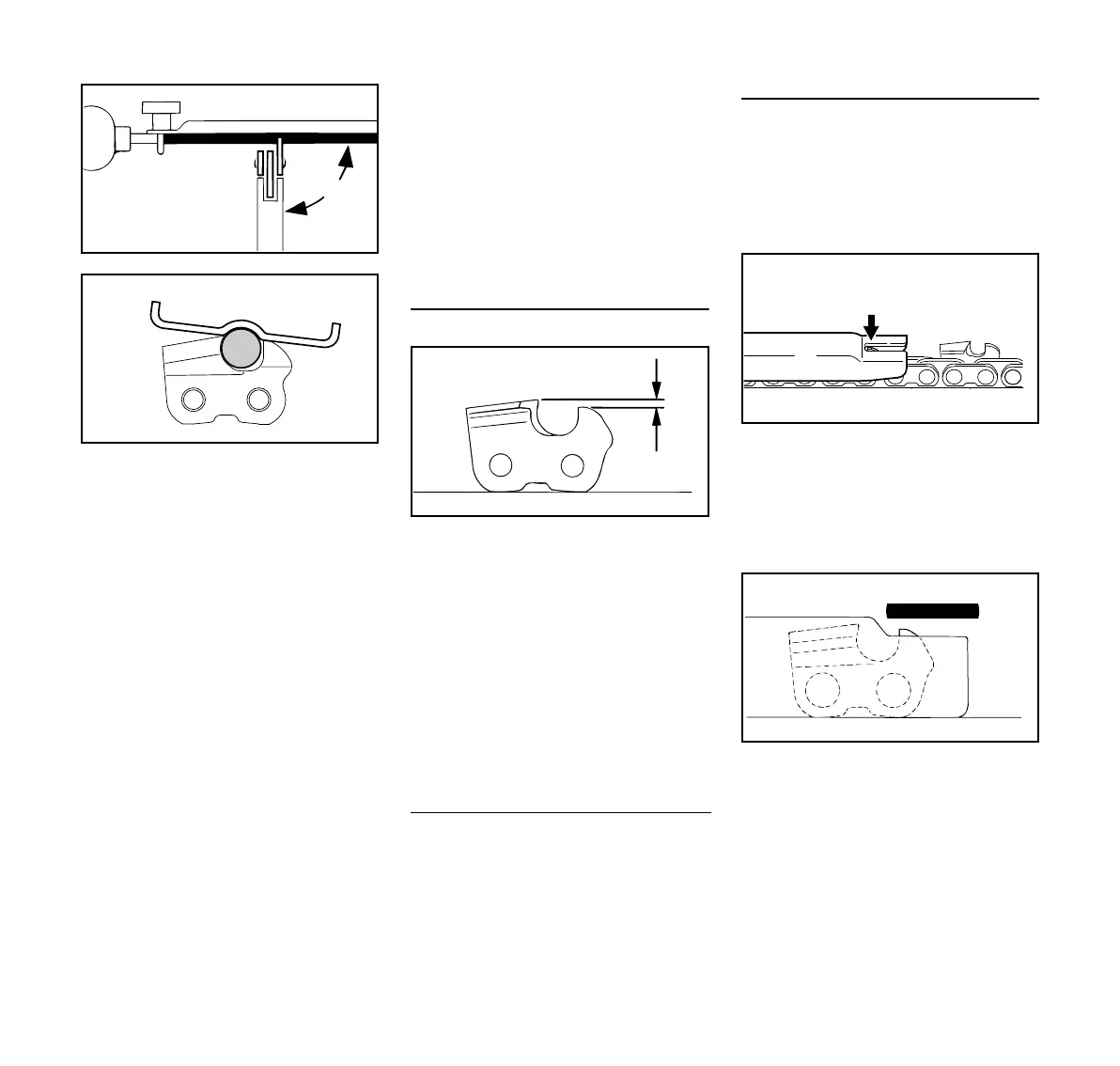

N Hold the file horizontally (at a right
angle to the side of the guide bar)
and file according to the angles
marked on the file holder. Rest the
file holder on the top plate and depth
gauge.
N Always file from the inside to the
outside of the cutter.
N The file only sharpens on the
forward stroke – lift the file off the
cutter on the backstroke.
N Avoid touching the tie straps and
drive links with the file.
N Rotate the file at regular intervals
while filing to avoid one-sided wear.
N Use a piece of hardwood to remove
burrs from the cutting edge.
N Check angles with the filing gauge.
All cutters must be the same length.
If the cutters are not the same length,
they will have different heights. This
makes the chain run roughly and can
cause it to break.
N Find the shortest cutter and then file
all other cutters back to the same
length. It is best to have this work
done in the workshop on an electric
grinder.
Depth gauge setting
The depth gauge determines the height
at which the cutter enters the wood and
thus the thickness of the chip removed.
a Specified distance or setting
between depth gauge and cutting
edge.
This setting may be increased by
0.2 mm (0.008") for cutting softwood in
the mild weather season – no frost.
Lowering depth gauges
The depth gauge setting is reduced
when the chain is sharpened.
N Use a filing gauge to check the
setting every time you sharpen the
chain.
N Place a filing gauge (1) that
matches the chain pitch on the
chain and press it against the cutter
– if the depth gauge projects from
the filing gauge, the depth gauge
has to be lowered.
N File down the depth gauge until it is
level with the filing gauge.
Chain pitch Depth gauge
setting (a)
inch (mm) mm (inch)
1/4 (6,35) 0,65 (0.026)
3/8 P (9,32) 0,65 (0.026)
0.325 (8,25) 0,65 (0.026)
3/8 (9,32) 0,65 (0.026)
0.404 (10,26) 0,80 (0.031)
