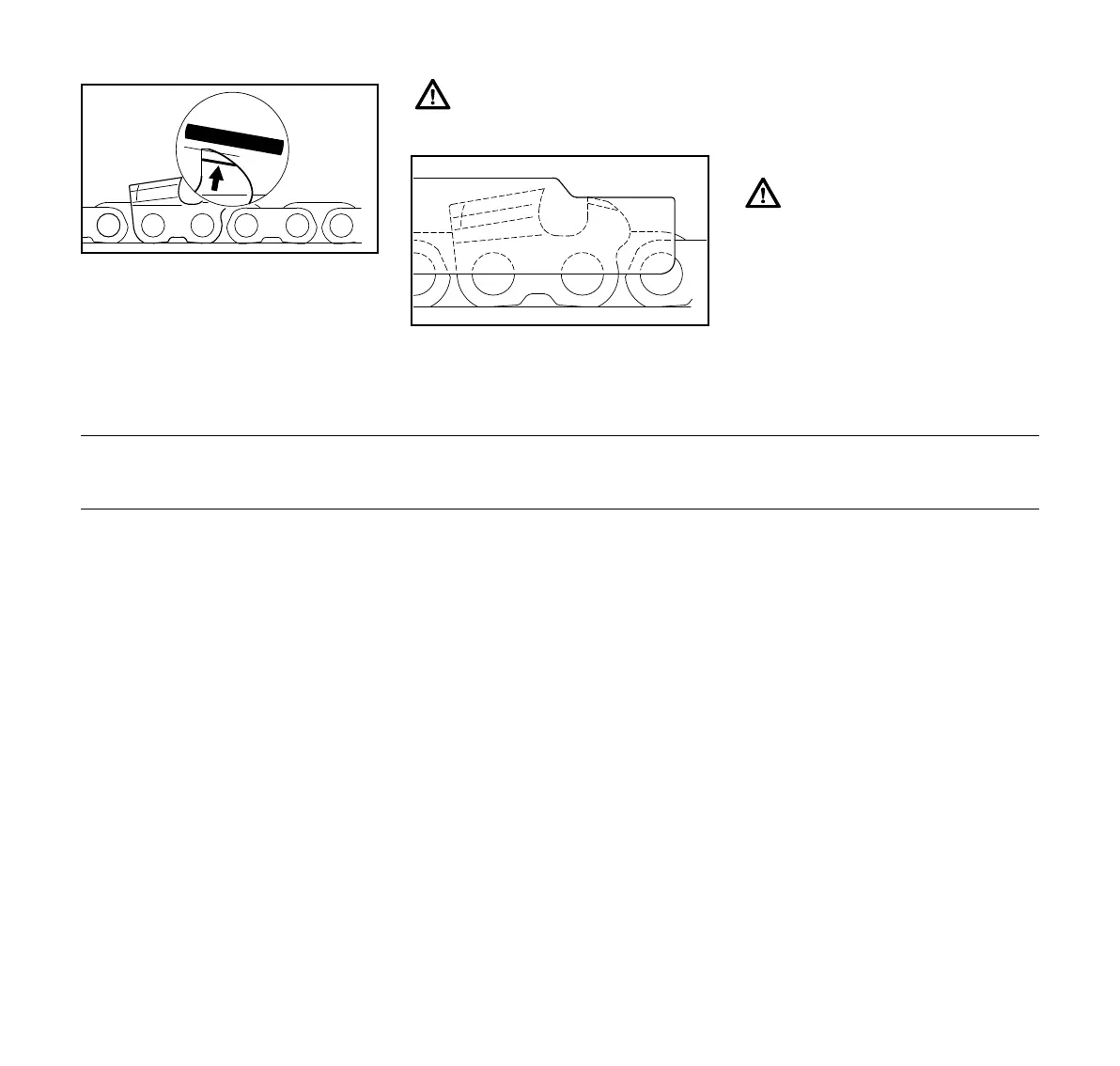

N File the top of the depth gauge
parallel to the stamped service
marking (see arrow) – but do not
lower the highest point of the depth
gauge in this process.
N Place the filing gauge on the chain –
the highest point of the depth gauge
must be level with the filing gauge.
RSC3, RMC3, PMC3, PMMC3
The upper part of the humped drive link
(with service marking) is lowered along
with the depth gauge.
N After sharpening, clean the chain
thoroughly, remove filings or
grinding dust – lubricate the chain
thoroughly.
N Before a long out-of-service period,
clean the chain and store it in a well-
oiled condition.
689BA044 KN
The kickback tendency of the saw
is increased if the depth gauges
are too low.
689BA052 KN
The other parts of the humped
drive link must not be filed since
this may increase the kickback
tendency of the saw.
Sharpening Tools (special accessories)
Chain pitch Round file ^ Round file File holder Filing gauge Flat file Sharpening kit
1)
inch (mm) mm (inch) Part No. Part No. Part No. Part No. Part No.
1/4 (6,35) 4,0 (5/32) 5605 772 4006 5605 750 4327 1110 893 4000 0814 252 3356 5605 007 1027
3/8 P (9,32) 4,0 (5/32) 5605 772 4006 5605 750 4327 1110 893 4000 0814 252 3356 5605 007 1027
0.325 (8,25) 4,8 (3/16) 5605 772 4806 5605 750 4328 1110 893 4000 0814 252 3356 5605 007 1028
3/8 (9,32) 5,2 (13/64) 5605 772 5206 5605 750 4329 1110 893 4000 0814 252 3356 5605 007 1029
0.404 (10,26) 5,5 (7/32) 5605 772 5506 5605 750 4330 1106 893 4000 0814 252 3356 5605 007 1030
1)
consisting of file holder with round file, flat file and filing gauge

Stihl MS 192 TC Specifications

General

Engine Displacement	30.1 cm³
Fuel Capacity	0.27 L
Chain Oil Capacity	0.22 L
Chain pitch	3/8" P
Oilomatic saw chain type	Picco Micro Mini 3 (PMM3)
Power Output	1.3 kW
Guide Bar Length	30-35 cm
Guide bar lengths (recommended)	30-35 cm
