Stihl MS 193 T User Manual

MS 193 T
English
35

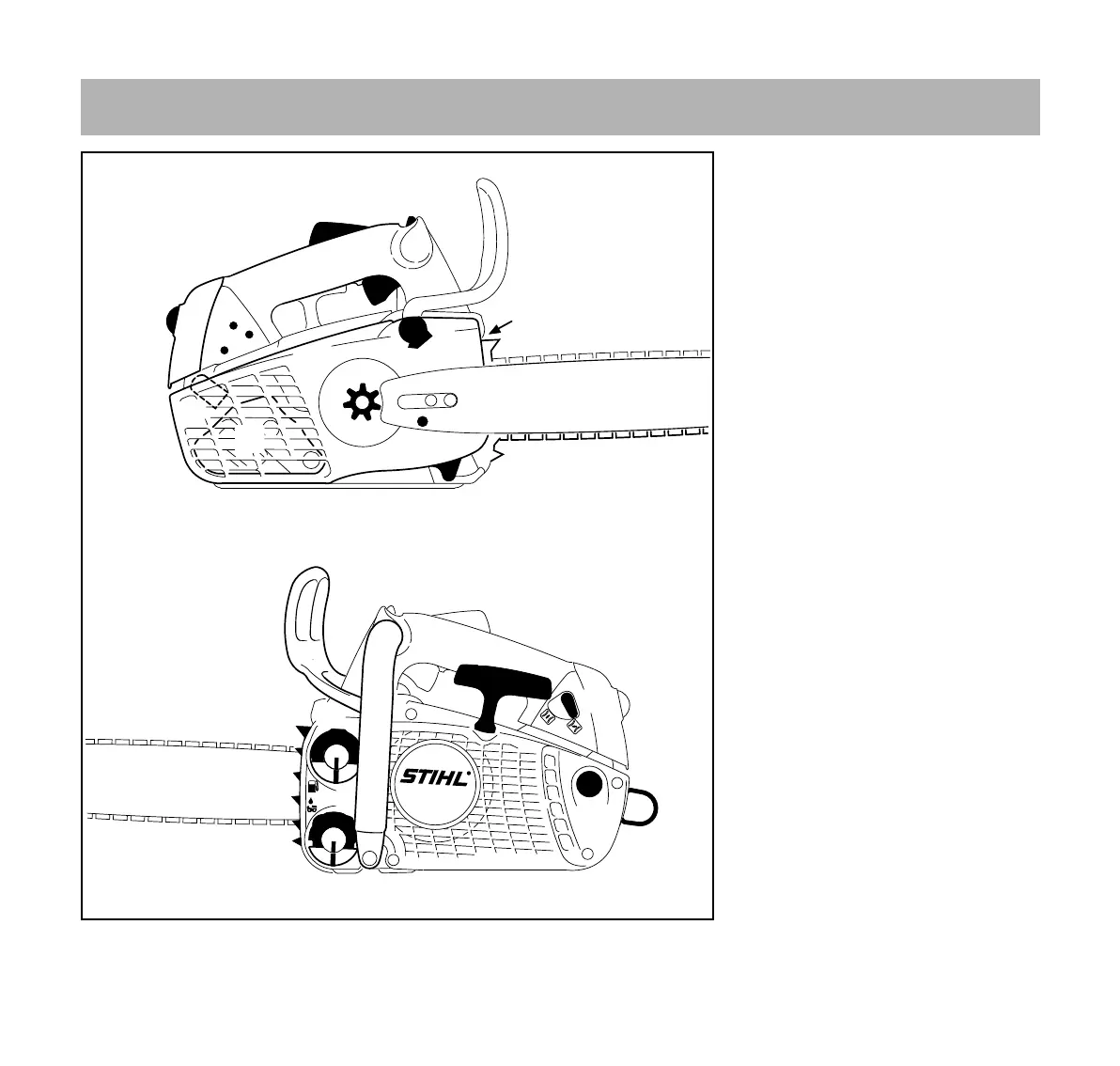

1 Carburetor Box Cover Twist Lock
2 Carburetor Box Cover
3 Carburetor Adjusting Screws
4 Control Handle
5 Throttle Trigger Lockout
6 Master Control Lever
7 Throttle Trigger
8 Chain Brake
9 Chain Sprocket
10 Chain Sprocket Cover
11 Spark Plug Boot
12 Muffler with Spark Arresting Screen
13 Chain Tensioner
14 Chain Catcher
15 Guide Bar
16 Oilmatic Saw Chain
17 Bumper Spike
18 Fuel Filler Cap
19 Oil Filler Cap
20 Hand Guard
21 Front Handle (Handlebar)
22 Starter Grip
23 Choke Lever
24 Fuel Pump
25 Ring for Rope
# Serial Number
Main Parts
3
21
18
17
19
24
25
23
16
8
9
10
4
7
5
13
1
2
6
11
14
15
20
22
#
467BA017 KN
12

Stihl MS 193 T Specifications

General

Engine Power	1.3 kW
Displacement	30.1 cm³
Weight	3.3 kg
Power output	1.3 kW
Guide bar length (recommended)	30-35 cm
Chain Oil Capacity	220 cc
Fuel tank volume	270 cc
Oil tank volume	220 cc
Chain pitch	3/8"
