Stihl MS 210 - Replacing the Starter Rope; Machines with ElastoStart; Machines without ElastoStart or with ErgoStart

49MS 210, MS 210 C, MS 230, MS 230 C, MS 250, MS 250 C
English

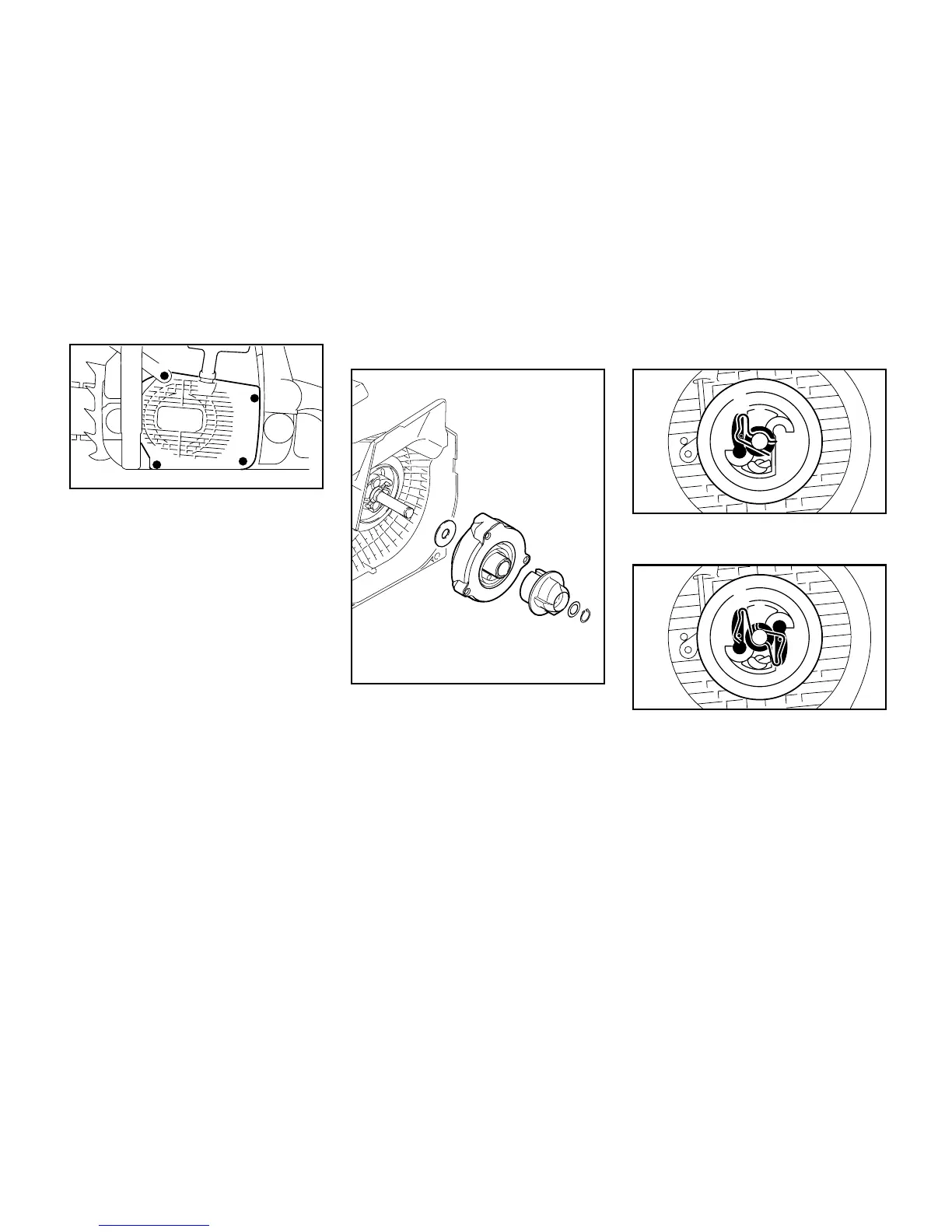

: Remove the screws (1).
: Push the hand guard upward.
: Pull the underside of the fan
housing away from the crankcase
and remove it downward.
Machines with ErgoStart
1)
: Use circlip pliers to carefully remove
circlip (2).
: Remove the washer (3), driver (4),
spring housing (5) and washer (6).
If no suitable circlip pliers are available,
have the starter rope or rewind spring
replaced by your servicing dealer.
1) Special option
Standard rewind starter
Machines with ErgoStart
: Remove the spring clip (7).
: Carefully remove the rope rotor
with washer (8) and pawl (9).
The rewind spring may pop out and
uncoil – take care to avoid injury.
Replacing Starter Rope
and Rewind Spring
1
1
1
1
