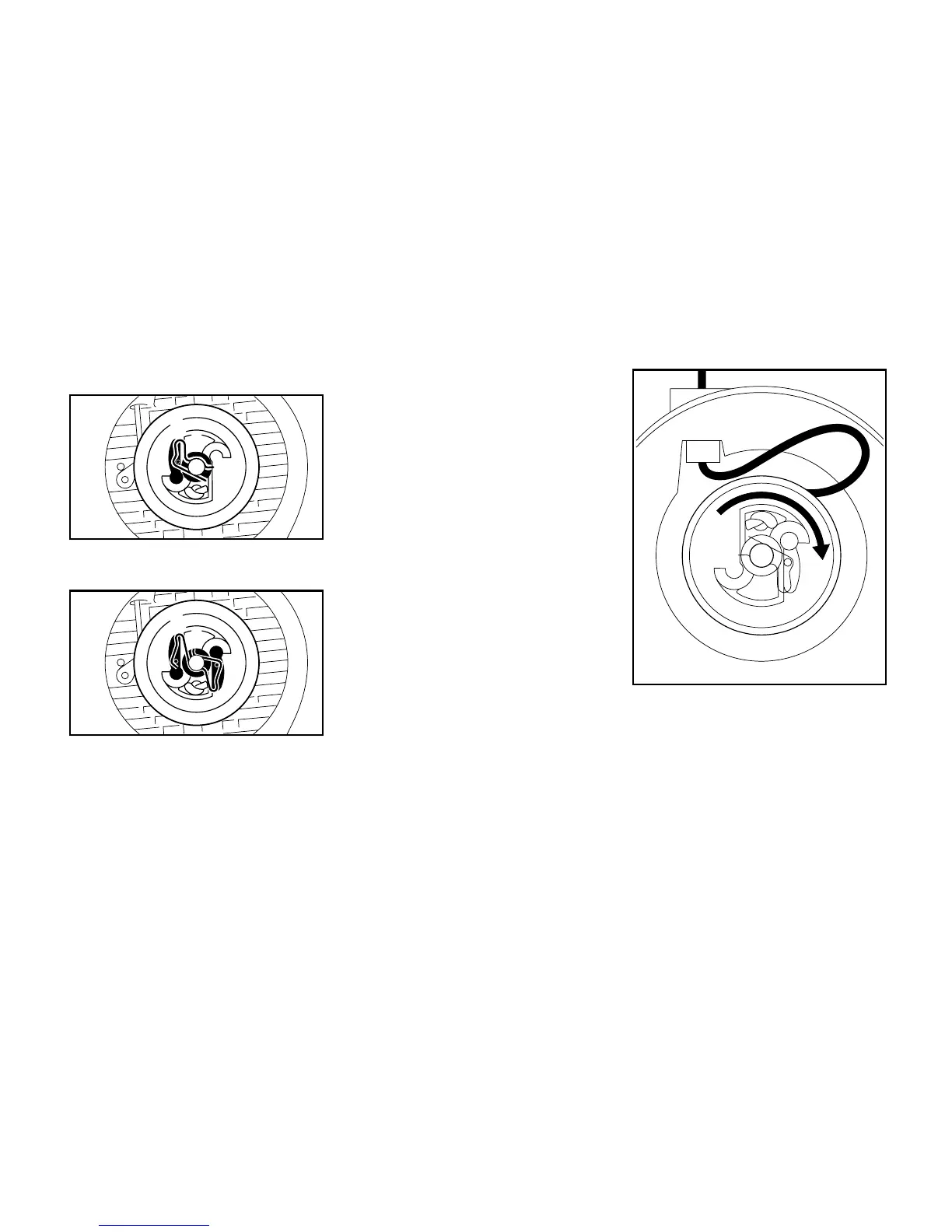

Installing the Rope Rotor
Standard rewind starter
Machines with ErgoStart
: Coat rope rotor bearing bore with
resin-free oil.
: Slip rotor over the starter post – turn
it back and forth to engage anchor
loop of the rewind spring.
: Fit the pawl or pawls (9) in the rope
rotor.
: Fit the washer (8) on the starter
post.
: Use a screwdriver or suitable pliers
to install the spring clip (7) on the
starter post and engage it on the
pawl’s peg – the spring clip must
point clockwise as shown in the
illustration.
Tensioning the Rewind Spring
: Make a loop in the starter rope and
use it to turn the rope rotor six full
revolutions in the direction of the
arrow.
: Hold the rotor steady – pull out and
straighten the twisted rope.
: Release the rope rotor.
: Let go of rope slowly so that it winds
onto the rotor.
7
8
9
208BA013 KN
7
8
9
208BA017 KN
9
108BA014 KN
