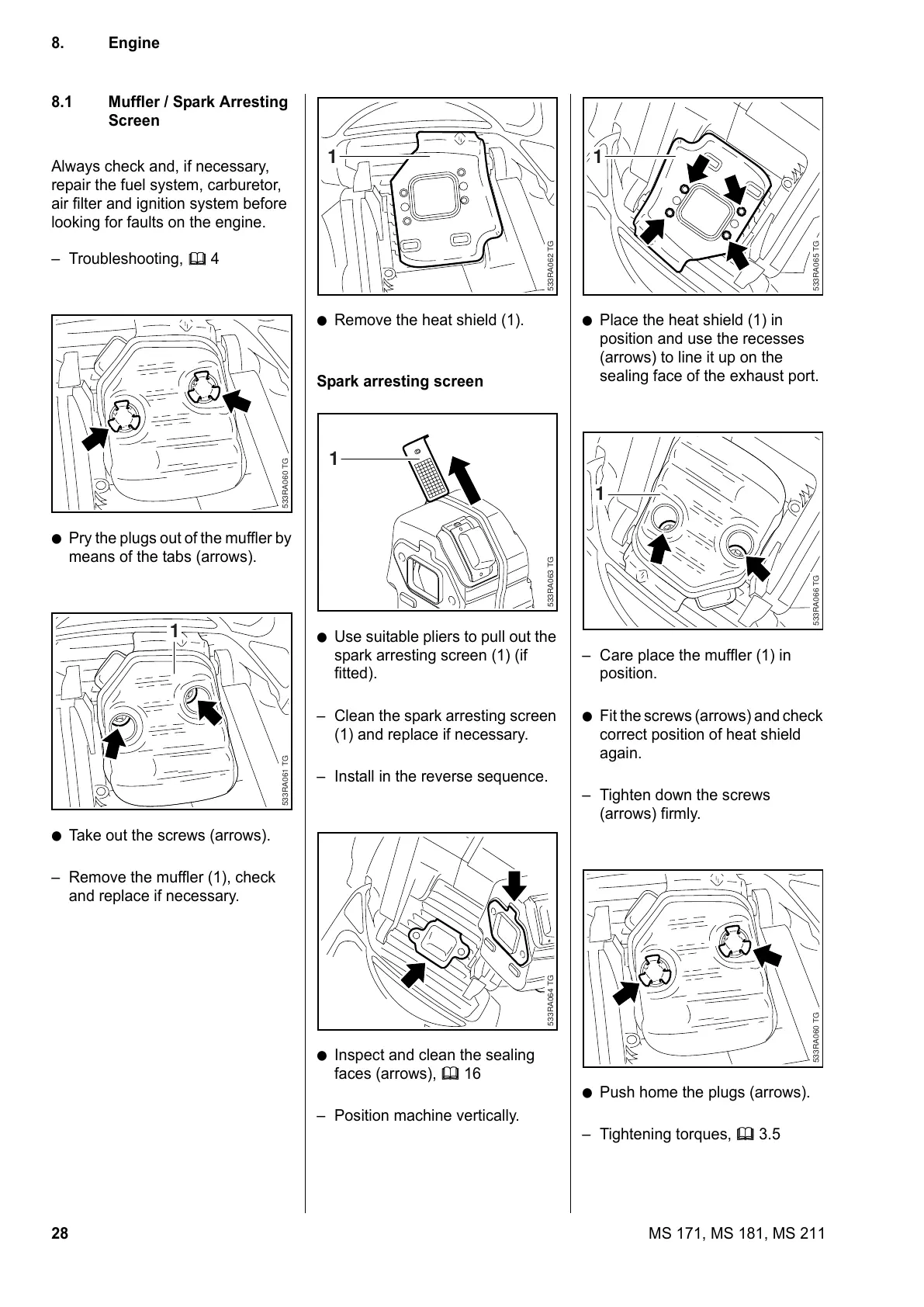

8. Engine
8.1 Muffler / Spark Arresting
Screen
Always check and, if necessary,
repair the fuel system, carburetor,
air filter and ignition system before
looking for faults on the engine.
– Troubleshooting, b 4
: Pry the plugs out of the muffler by
means of the tabs (arrows).
: Take out the screws (arrows).
– Remove the muffler (1), check
and replace if necessary.
533RA060 TG533RA061 TG
1
: Remove the heat shield (1).
Spark arresting screen
: Use suitable pliers to pull out the
spark arresting screen (1) (if
fitted).
– Clean the spark arresting screen
(1) and replace if necessary.
– Install in the reverse sequence.
: Inspect and clean the sealing
faces (arrows), b 16
– Position machine vertically.
533RA062 TG
1
533RA063 TG
1
533RA064 TG
: Place the heat shield (1) in
position and use the recesses
(arrows) to line it up on the
sealing face of the exhaust port.
– Care place the muffler (1) in
position.
: Fit the screws (arrows) and check
correct position of heat shield
again.
– Tighten down the screws
(arrows) firmly.
: Push home the plugs (arrows).
– Tightening torques, b 3.5
533RA065 TG
1
533RA066 TG
1
