66 MS 171, MS 181, MS 211
: Check operation
– short circuit wire connector
must touch the contact spring
(arrow) in position “
0“.
– Install the carburetor, b 14.3
– Install the throttle rod, b 14.6
– Install the handle molding,
b 12.2
– Reassemble all other parts in the
reverse sequence.
– Tightening torques, b 3.5

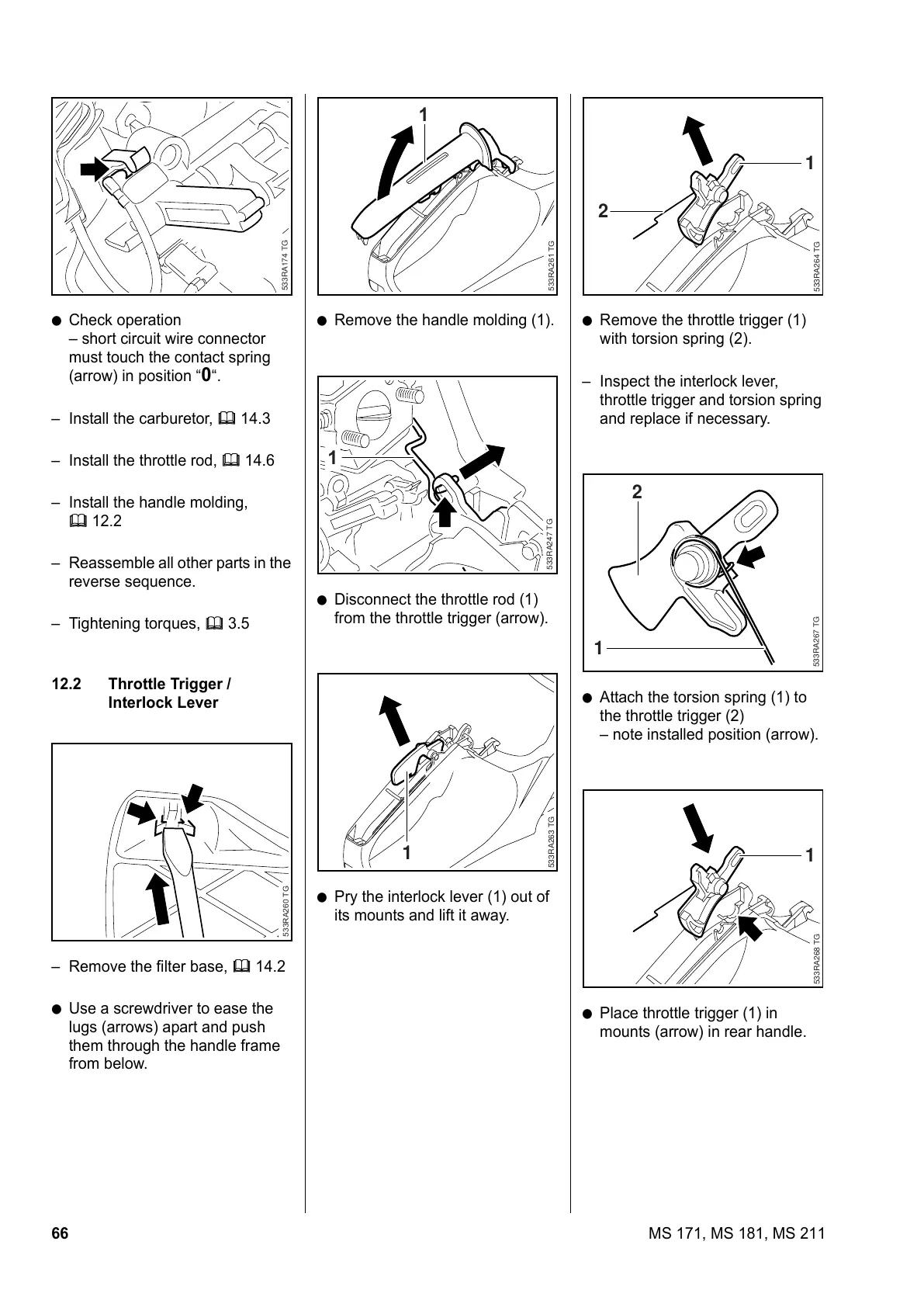

12.2 Throttle Trigger /
Interlock Lever
– Remove the filter base, b 14.2
: Use a screwdriver to ease the
lugs (arrows) apart and push
them through the handle frame
from below.
533RA174 TG
533RA260 TG
: Remove the handle molding (1).
: Disconnect the throttle rod (1)
from the throttle trigger (arrow).
: Pry the interlock lever (1) out of
its mounts and lift it away.
533RA261 TG
1
533RA247 TG
1
533RA263 TG
1
: Remove the throttle trigger (1)
with torsion spring (2).
– Inspect the interlock lever,
throttle trigger and torsion spring
and replace if necessary.
: Attach the torsion spring (1) to
the throttle trigger (2)
– note installed position (arrow).
: Place throttle trigger (1) in
mounts (arrow) in rear handle.
