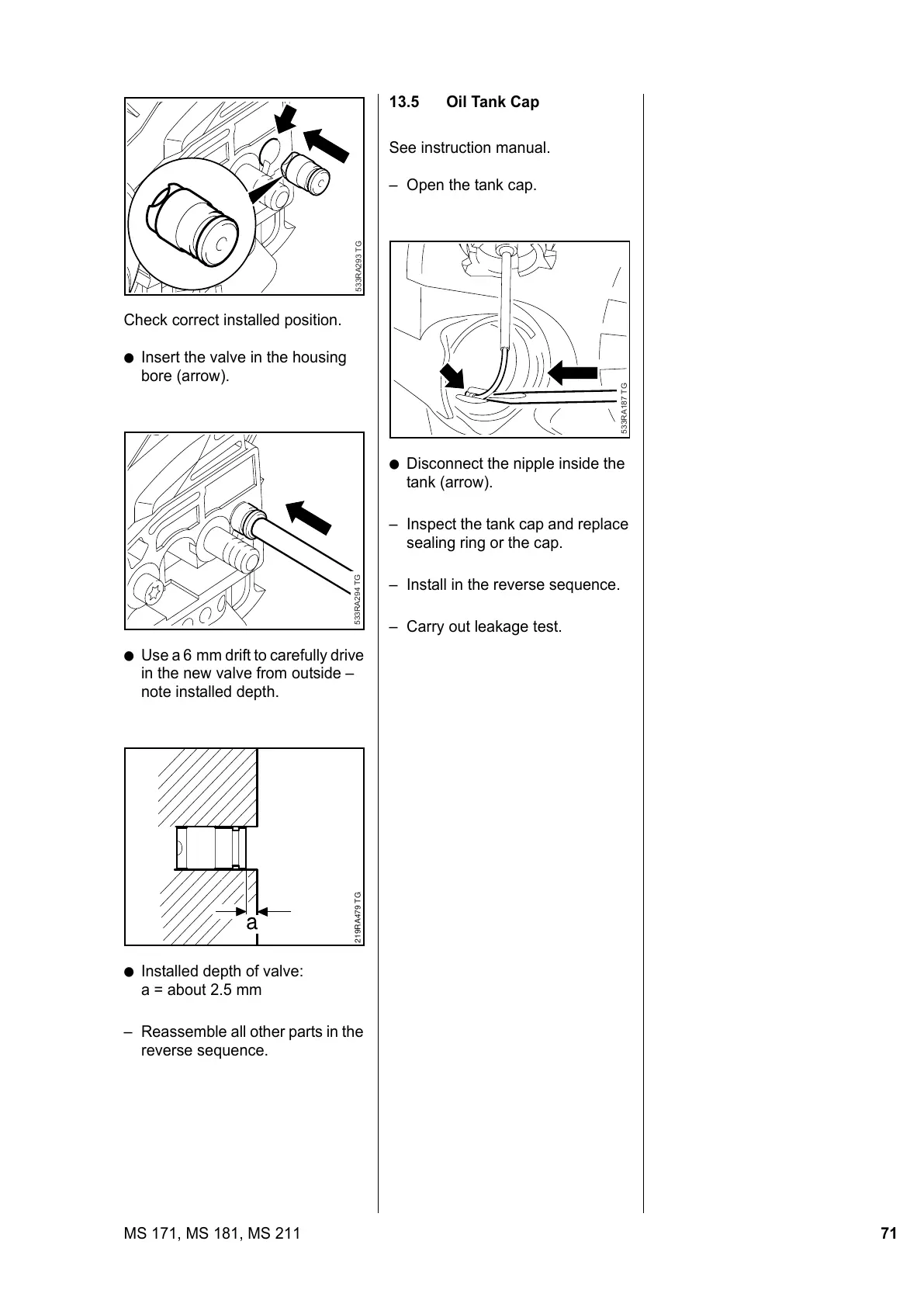

71MS 171, MS 181, MS 211
Check correct installed position.
: Insert the valve in the housing
bore (arrow).
: Use a 6 mm drift to carefully drive
in the new valve from outside –
note installed depth.
: Installed depth of valve:
a = about 2.5 mm
– Reassemble all other parts in the
reverse sequence.
533RA293 TG
533RA294 TG
219RA479 TG
13.5 Oil Tank Cap
See instruction manual.
– Open the tank cap.
: Disconnect the nipple inside the
tank (arrow).
– Inspect the tank cap and replace
sealing ring or the cap.
– Install in the reverse sequence.
– Carry out leakage test.
533RA187 TG
