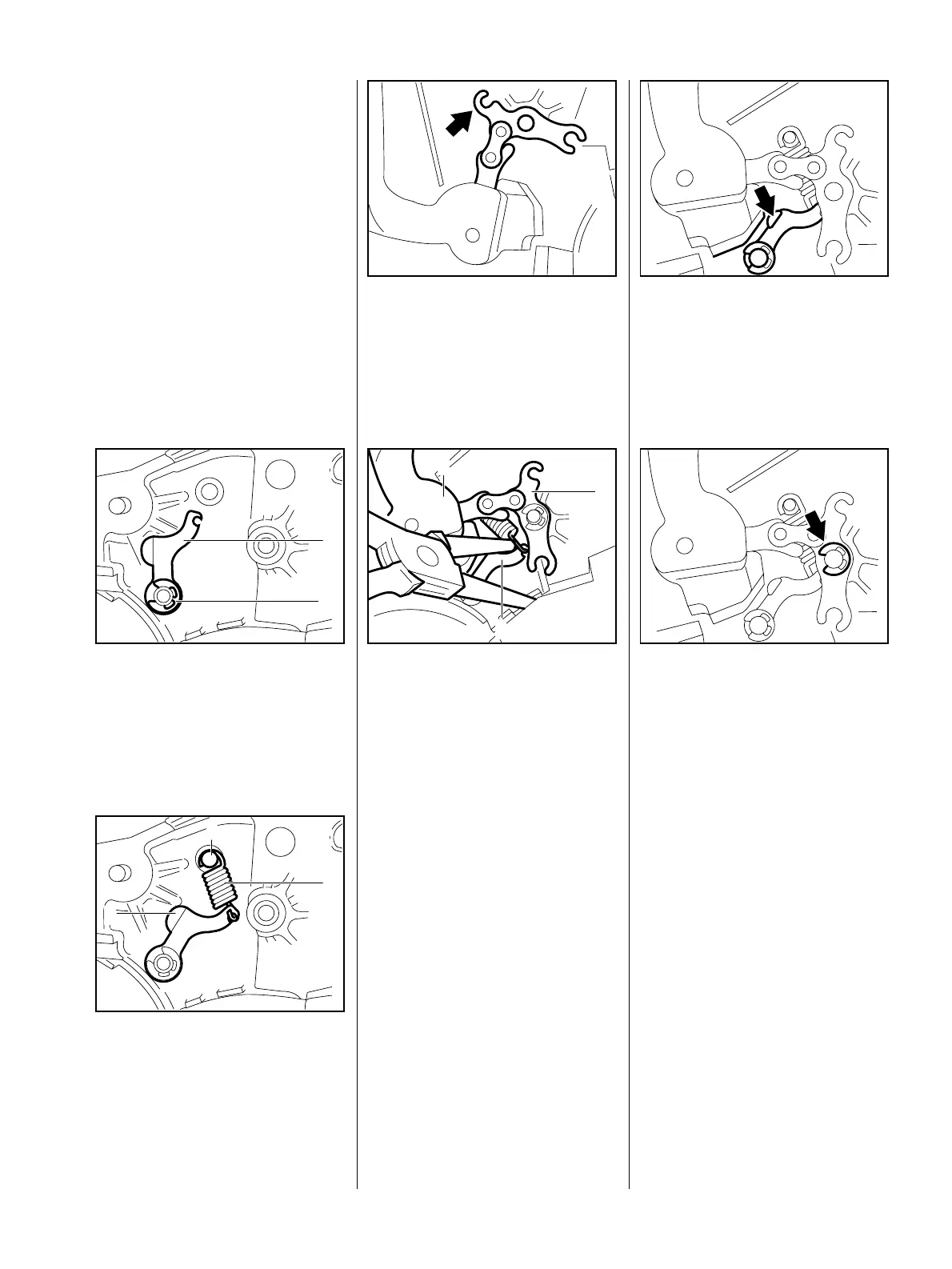

Online version - not for reprint
23MS 270, MS 280
If the brake spring anchor pin was
removed because it was worn, it
must be installed before starting the
following operations – see 5.6.
Push the cam lever (1) into
position.
Fit the E-clip (2).
VA
146RA211
1
2
Attach spring (1) to pivot pin (2)
and cam lever (3).
VA
146RA210
2
3
1
Push the bell crank into the side
of the hand guard.
The short arm of the bell crank must
point to the top of the hand guard.
VA
146RA014
Position the bearing boss of the
hand guard (1) against the pivot
pin and fit the other side of the
hand guard over the housing.
Position the bell crank (2) against
the pivot pin.
VA
146RA015
1
3
2
Press the cam lever (3) slightly
downward and push the hand
guard and bell crank onto their
pivot pins.
Tighten down the hand guard
mounting screw – see 3.5.
Check that cam lever is properly
located on face (arrow) of hand
guard bearing boss.
VA
146RA016
Secure bell crank with E-clip.
Coat the brake band with chain
oil to protect it from corrosion and
help reduce "snatching" during
the first few brake applications.
VA
146RA017
5.4.3 Installing
