As a temporary measure, a dirty
pickup body may be washed in
STIHL cleaner – see 14.
– Examine suction hose for signs of
damage and replace if
necessary.
Installing

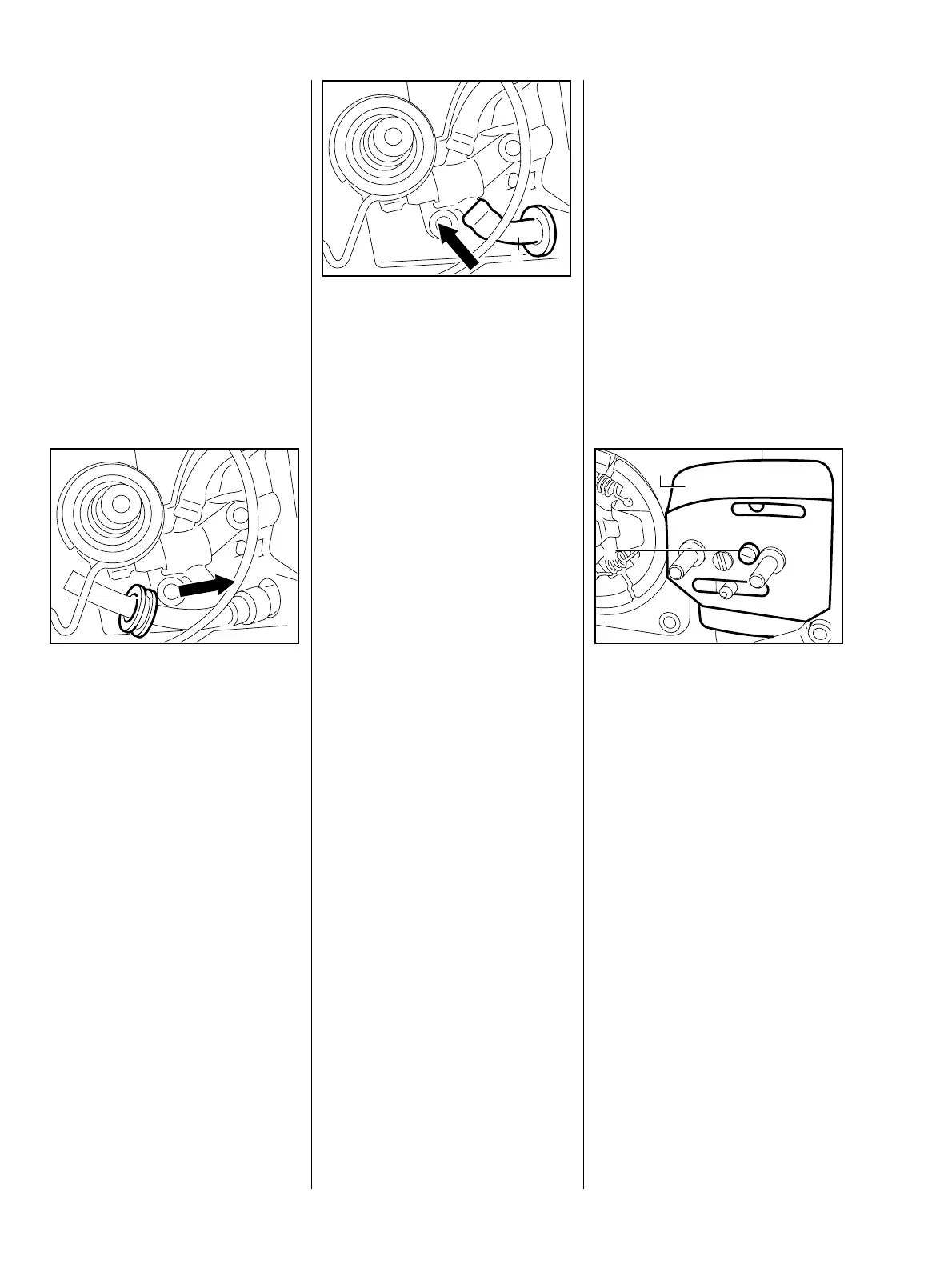

– Push the pickup body into the
suction hose.
 Coat grommet (1) on suction
hose with a little oil.
VA
146RA225
1
 Insert suction hose, pickup body
first, in the crankcase.
 Use a blunt tool to push the
grommet (1) into position in the
crankcase. Make sure the
grommet is properly seated.
 Connect the suction hose to the
oil pump.
VA
146RA226
1
Reassemble all other parts in the
reverse sequence.
Troubleshooting chart – see 4.3.
– Remove the chain sprocket cover
and cutting attachment.
Wear work gloves to protect your
hands from injury.
– Remove the clutch drum/chain
sprocket – see 5.1.
 Take out the screw (1).
 Remove the side plate (2).
– Engage the chain brake by
pushing the hand guard away
from the front handle.
VA
138RA004
1
2
11.2 Delivery Hose
