19MS 270, MS 280

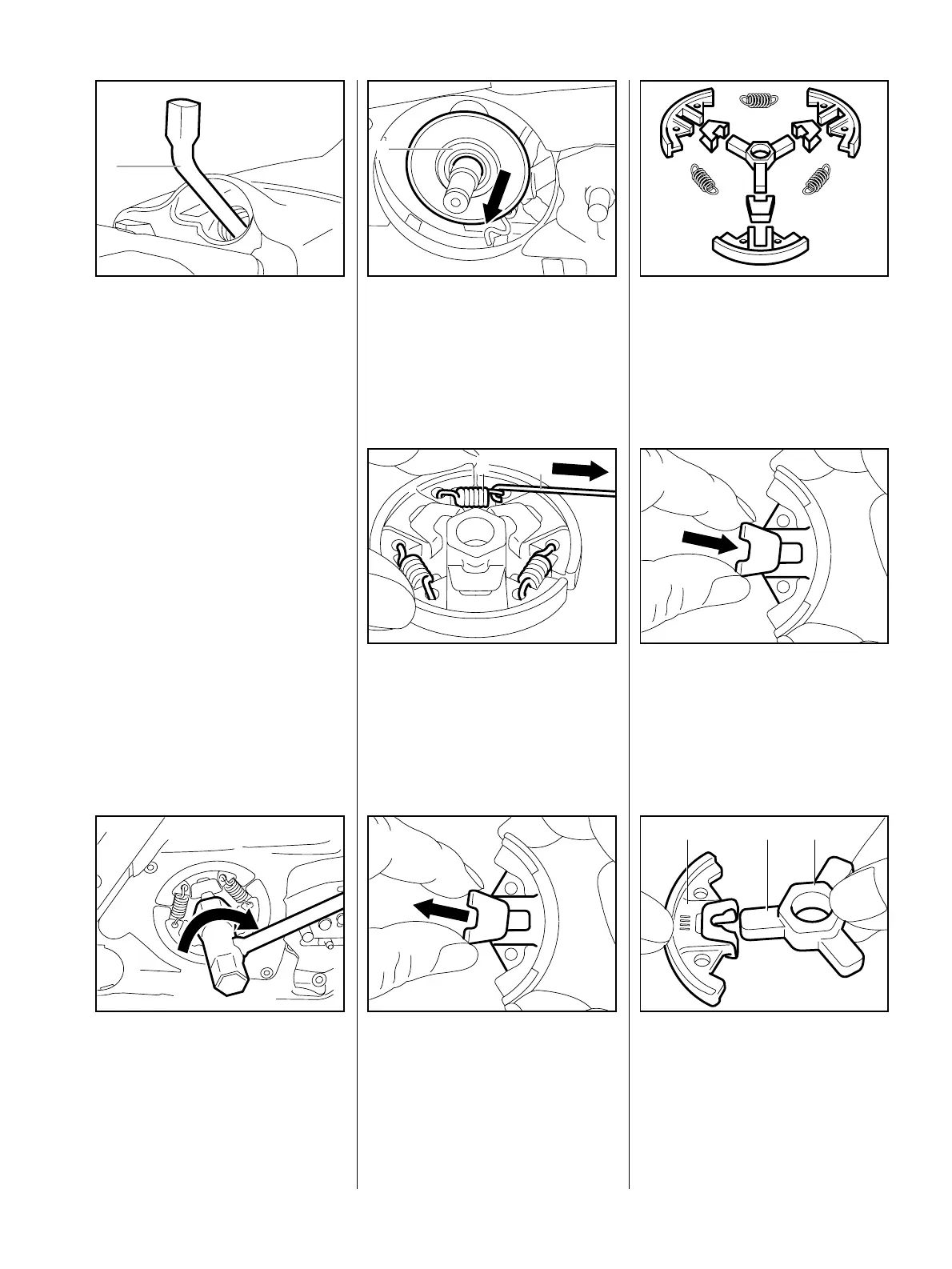

Close the decompression valve,
if fitted.
Push the locking strip (1)
0000 893 5903 into the spark
plug hole so that "OBEN-TOP"
faces up.
VA
146RA004
1
Unscrew the clutch from the
crankshaft clockwise (left-hand
thread).
VA
148RA068
Take the cover washer (1) off the
crankshaft stub.
VA
146RA209
1
TOP
Disassembling the clutch
Use hook (2) 5910 890 2800 to
remove the clutch springs (1).
VA
146RA205
1 2
Pull the clutch shoes off the
carrier.
Pull the retainers off the clutch
shoes.
VA
208RA031
Clean all parts with STIHL
cleaner – see 14.
Replace any damaged parts.
VA
208RA026
Assembling the clutch
Slip the retainers onto the clutch
shoes.
VA
208RA029
Fit the clutch shoes (2) over the
arms (1) of the clutch carrier (3).
VA
146RA208
2 1 3
