41MS 270, MS 280

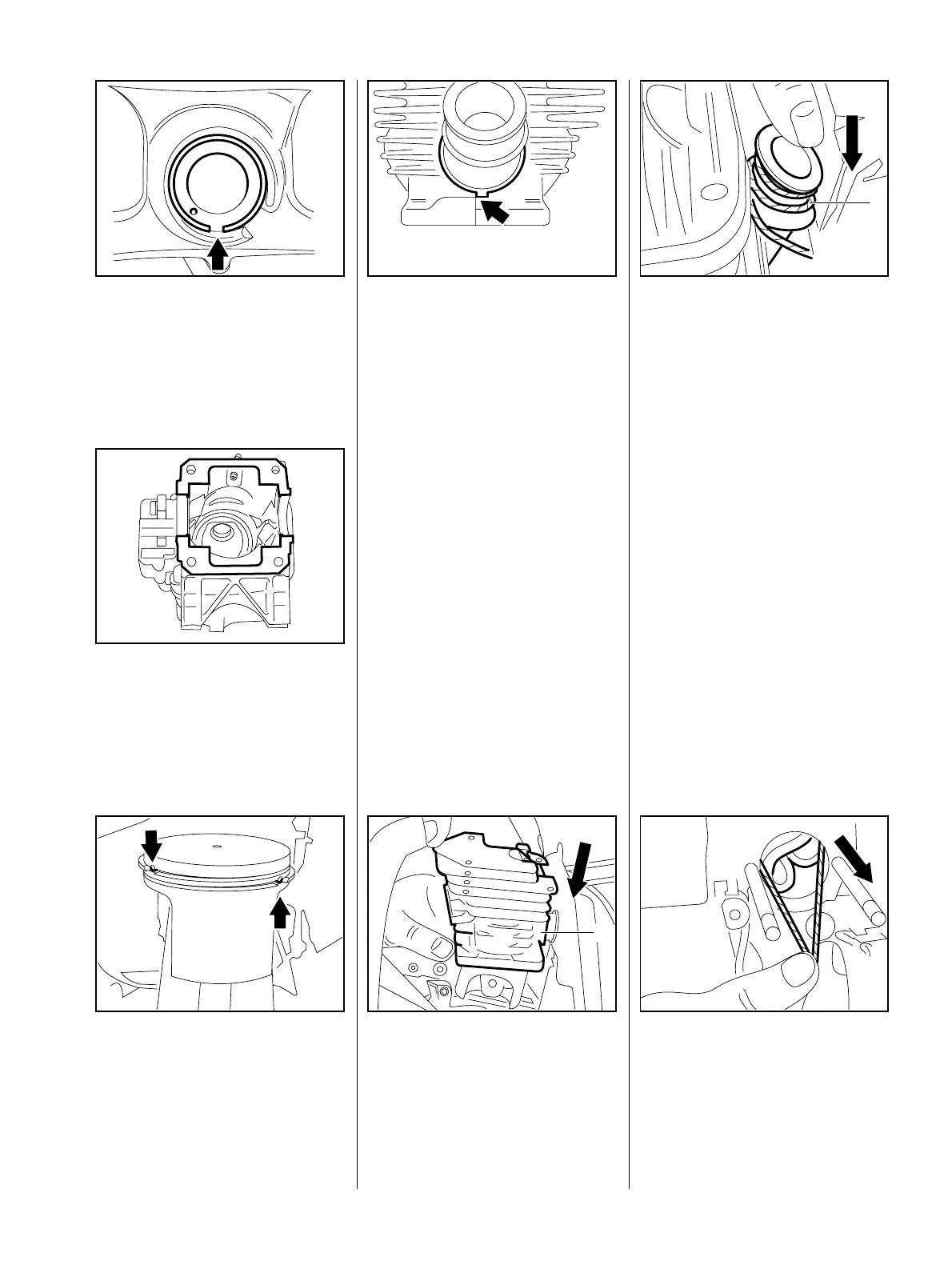

Fit the snap rings so that their gaps
are on the piston's vertical axis (they
must point either up or down – see
arrow).
VA
249RA150
 Coat cylinder sealing face with
Dirko red – see 14.
VA
146RA216
 Position the piston rings in the
grooves so that the radii at the
ring gaps engage the fixing pins
(arrows) in the piston grooves.
upward.
VA
138RA035
– Push the manifold on to the
intake port.
 Fit the clamping ring, note the
installed position (arrow).
– Make sure the piston rings are
properly positioned.
VA
176RA083
– Lubricate the inside of the
cylinder with oil and line it up so
that it is positioned as it will be in
the installed condition.
 Carefully slide the cylinder (1)
over the piston.
VA
146RA063
1
 Wind a piece of string (1) (about
15 cm long) around the back of
the manifold flange and pass the
ends of the string through the
intake opening.
 Press the manifold down.
VA
146RA064
1
 Pull the ends of the string
outward.
The manifold flange is pulled
through the tank housing intake
opening without damaging the
manifold.
VA
146RA065
