98 MS 271 C, MS 291 C

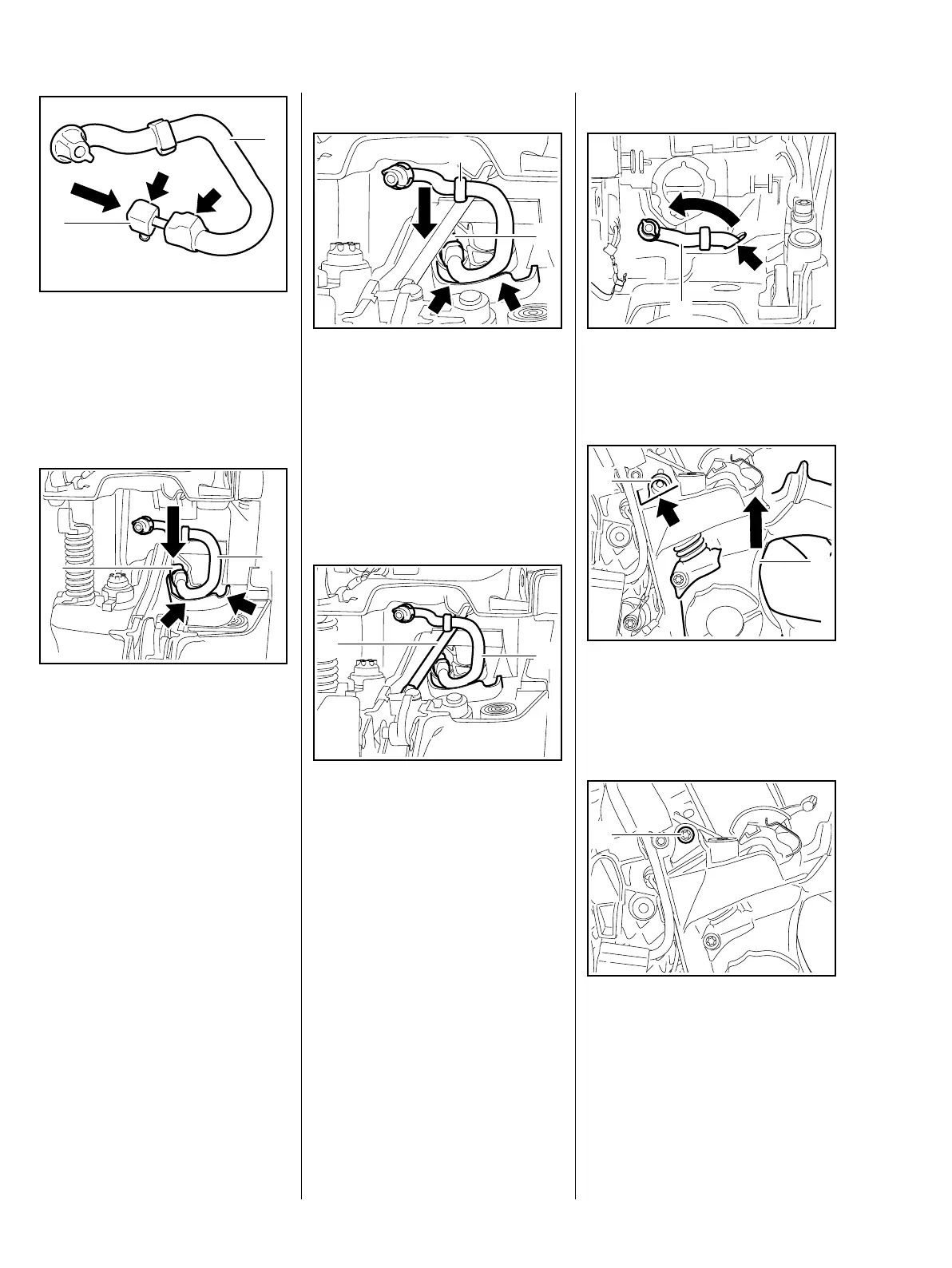

: Line up straight face of
connector (1) with hump on fuel
hose (2) (see arrows).
: Push the connector (1) into the
fuel hose (2) as far as stop.
: Push the connector (2) into the
fuel suction hose.
: Line up the fuel hose (1) and
connector with the
channel (arrows).
5902RA441 TG
2
1
1
2710RA235 TG
2
Machines with QuickStop Super
: Pass the fuel hose (2), connector
first, under the brake cable.
: Push the connector (1) into the
fuel suction hose.
: Line up the fuel hose (2) and
connector with the
channel (arrows).
: Position the fuel hose (1) so that
it is on the right of the brake
cable (2) – as shown in the
illustration.
1
2710RA236 TG
2
1
2710RA237 TG
2
All models
: Push the fuel hose (1) through
the opening (arrow) in the engine
housing.
: Pass the AV spring (2) through
the opening (arrow).
: Lift the tank housing (1).
: Insert and tighten down the
screw (1) firmly.
