RE 232, RE 272 PLUS, RE 282 PLUS
English
11

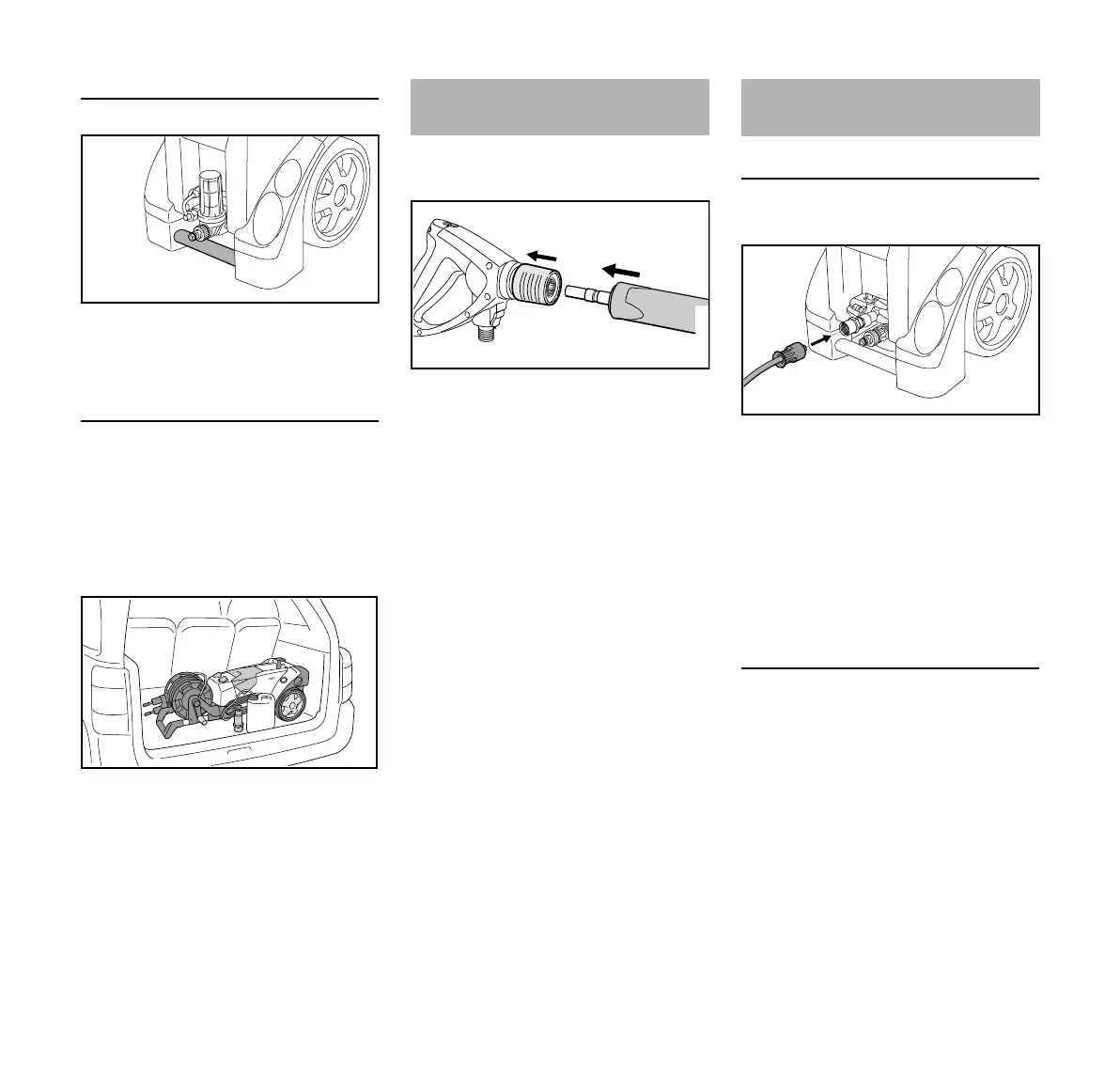

Carrying handle
The pressure washer can be carried
using the carrying handle.
Transporting the machine in and on
vehicles
N Secure the pressure washer in
accordance with the regulations in
force in the country to prevent
tipping over and damage
Lay the pressure washer flat for
transport
N Place the pressure washer on its
back for transport
N Remove the detergent tank – see
"Fitting, removing detergent tank"
N Empty the detergent tank or secure
it so that it cannot tip over
N Remove protective cap from the
spray lance and save for later use
N Pull back and hold the coupling (1)
N Push the spray lance (2) into the
mount on the spray gun, or pull it out
to remove the spray gun,
respectively
N Release the coupling (1)
Machine without hose reel
Connecting the high-pressure hose
N Push high-pressure hose onto the
connector (1)
N Fit and attach the union nut (2) and
tighten it by hand
Disconnecting the high-pressure hose
N Unscrew the union nut (2)
N Pull high-pressure hose off of
connector (1)
Machine with hose reel
The high-pressure hose is already
connected.
6158BA008 KN
0000-GXX-2633-A0
Fitting, removing spray lance
647BA021 KN
1
2
Fitting, removing high-
pressure hose
2
1
6158BA005 KN
