11Cleaning Systems Safety Manual
English
1 Spray head
2 Selector sleeve for working pressure
3 Spray lance
4 Vario-Press valve
5 Lock for high-pressure hose
6 Trigger
7 Safety latch
8 Lock for spray lance
9 High-pressure hose
10 Filling port for fuel
11 Fuel tank
12 Machine cover
13 Pressure gauge
14 Handle on machine cover
15 Indicator for operating condition
16 Pump oil indicator
1)
17 Service indicator
18 Scale inhibitor indicator
1)
19 Fuel indicator
1)
20 Metering valve for detergent
21 Switch / temperature regulator
22 Holder for spray attachment
23 Holder for spray attachment
24 Bracket for power cable
25 Water inflow
26 Swivel wheel with brake
# Rating plate
1) not on RE 521

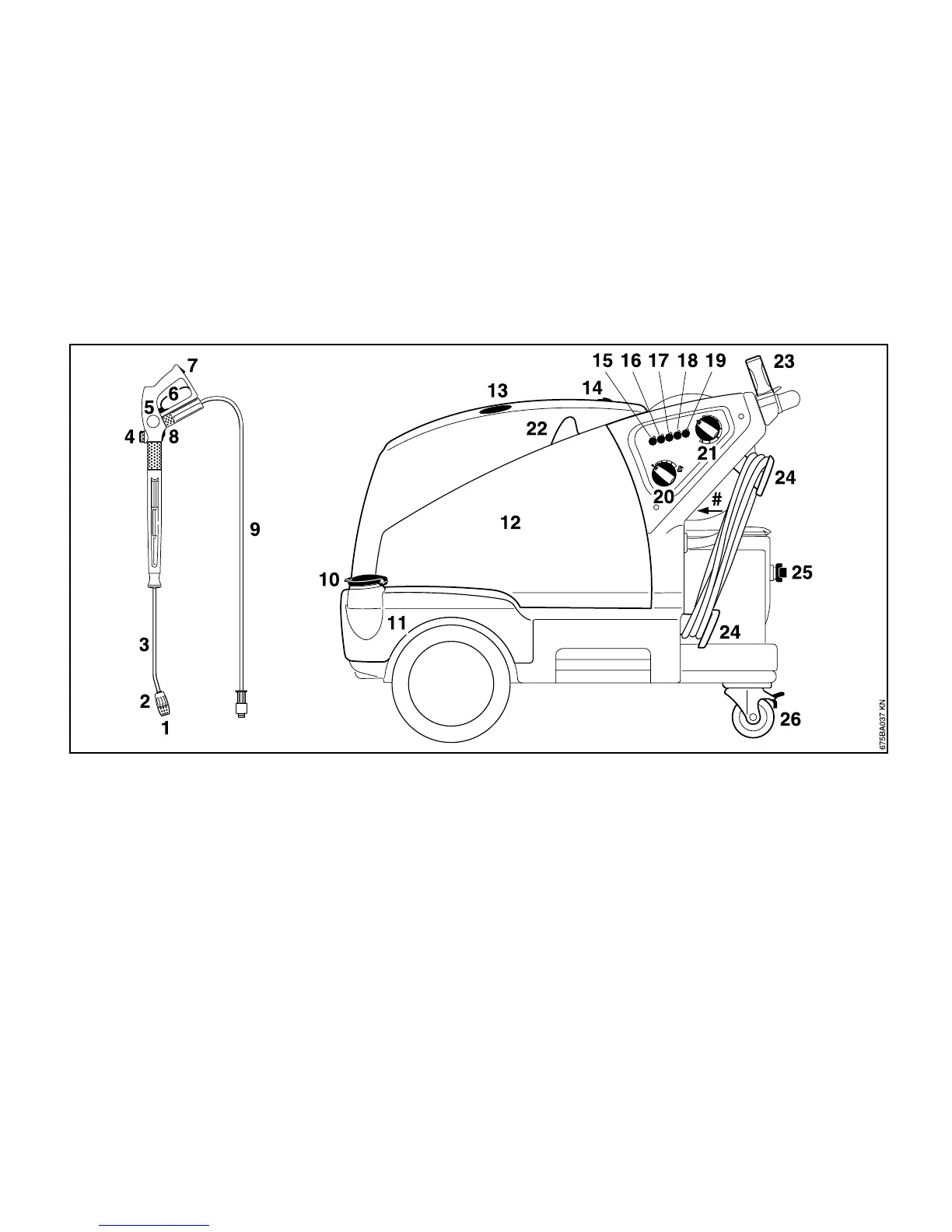

Main parts of the machine
