Exhaust emissions are controlled by the
design of the fundamental engine
parameters and components (e.g.
carburation, ignition, timing and valve or
port timing) without the addition of any
major hardware.
Basic information
The ignition system of this cut-off
machine is equipped with an electronic
maximum speed limiter. The maximum
speed cannot be increased beyond a
specified limit.
The carburetor comes from the factory
with a standard setting.
The carburetor has been adjusted for
optimum performance and fuel
efficiency in all operating states.
Preparing the machine
N Switch off the engine
N Check the air filter – clean or replace
it if necessary
N Check the spark arresting screen in
the muffler (present only in some
countries) – clean or replace it if
necessary
Different standard settings
Different carburetors are installed at the
factory. A different standard setting is
required for each of these carburetors:
Standard setting A
– High speed adjusting screw (H) =
3/4
– Low speed adjusting screw (L) = 1
Standard setting B
– High speed adjusting screw (H) =
3/4
– Low speed adjusting screw (L) = 3/4
N Determine standard setting, to do
so, carefully turn the low speed
adjusting screw (L) clockwise as far
as possible – then turn it back
Is the adjustment range greater than
1 turn?
N continue with "Standard setting A"
Is the adjustment range smaller than
1 turn?
N continue with "Standard setting B"

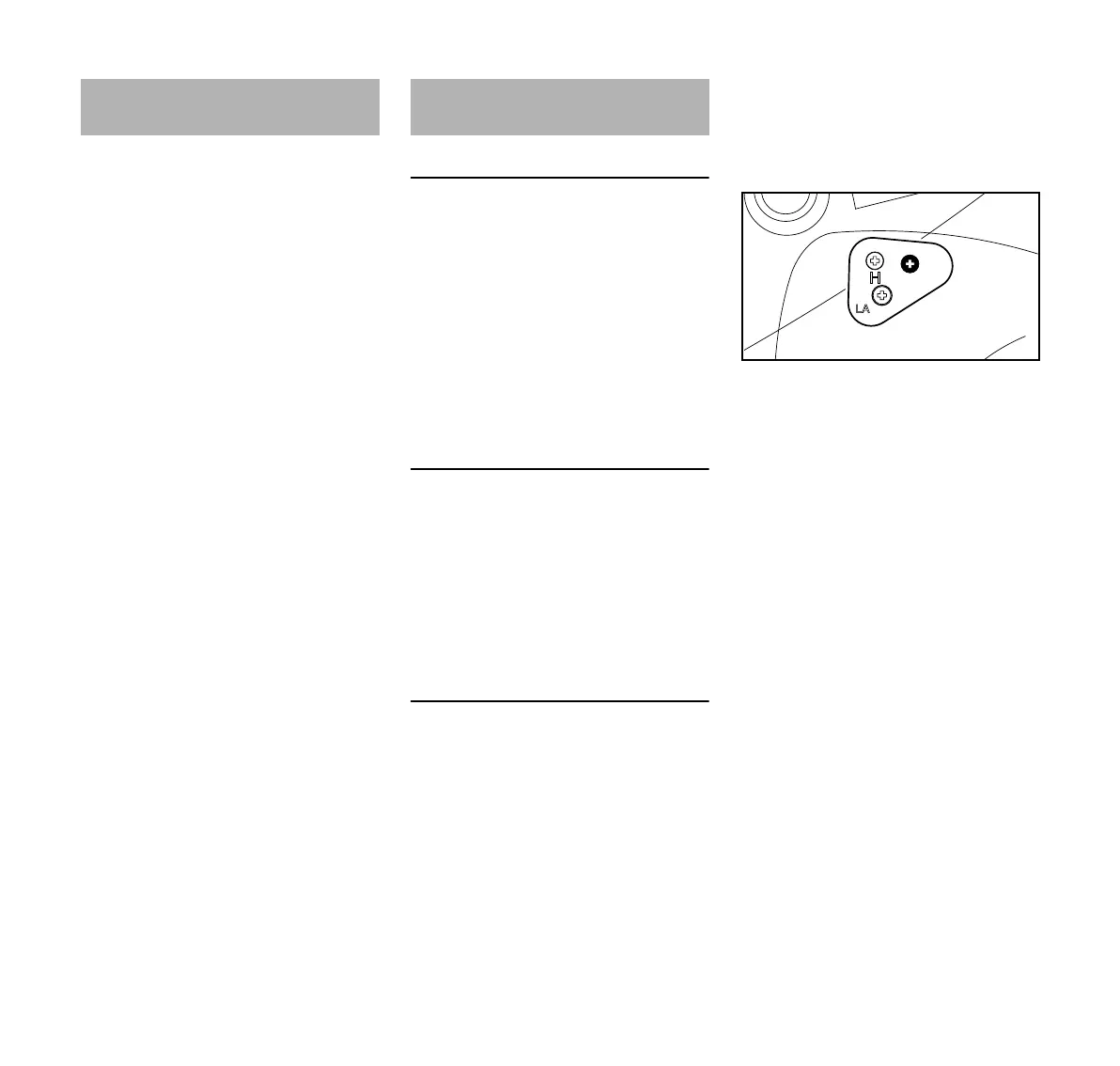

Engine Management Adjusting the Carburetor
L
376BA097 KN
