Stihl TS700 User Manual

TS 700, TS 800
English
39
In some countries, the mufflers are fitted
with a spark arresting screen.
N If engine performance deteriorates,
check the spark arresting screen in
the muffler
WARNING
Wait until engine has cooled completely
before performing the following
operations.
Versions
There are two different spark arresting
screen versions in the muffler.
– Spark arresting screen fastened
with clip
– Spark arresting screen fastened
with screw
Spark arresting screen fastened with
clip
N Use a suitable tool to squeeze ends
of clip (1) together and then lift the
clip away
N Remove the spark arresting screen
(2) from the muffler
N Clean the soiled spark arresting
screen
N If the screen is damaged or heavily
carbonized, fit a new one
N Refit the spark arresting screen in
reverse order of steps
Spark arresting screen fastened with
screw
N Remove screw (1)
N Pull out spark arresting screen (2)
with a suitable tool
N Clean the soiled spark arresting
screen
N If the screen is damaged or heavily
carbonized, fit a new one
N Refit the spark arresting screen in
reverse order of steps
If engine is down on power, difficult to
start or runs poorly at idling speed, first
check the spark plug.
Fit a new spark plug after approx. 100
operating hours or earlier if the
electrodes are badly eroded.
Wrong fuel mix (too much engine oil in
the gasoline), a dirty air filter and
unfavorable running conditions (mostly
at part throttle etc.) affect the condition
of the spark plug. These factors cause
deposits to form on the insulator nose
which may result in trouble in operation.
Removing the spark plug
N Switch off the engine – move stop
switch to STOP or 0
N Unscrew the screw (1) and remove
cap (2) – screw (1) is secured in the
cap (2) to prevent loss

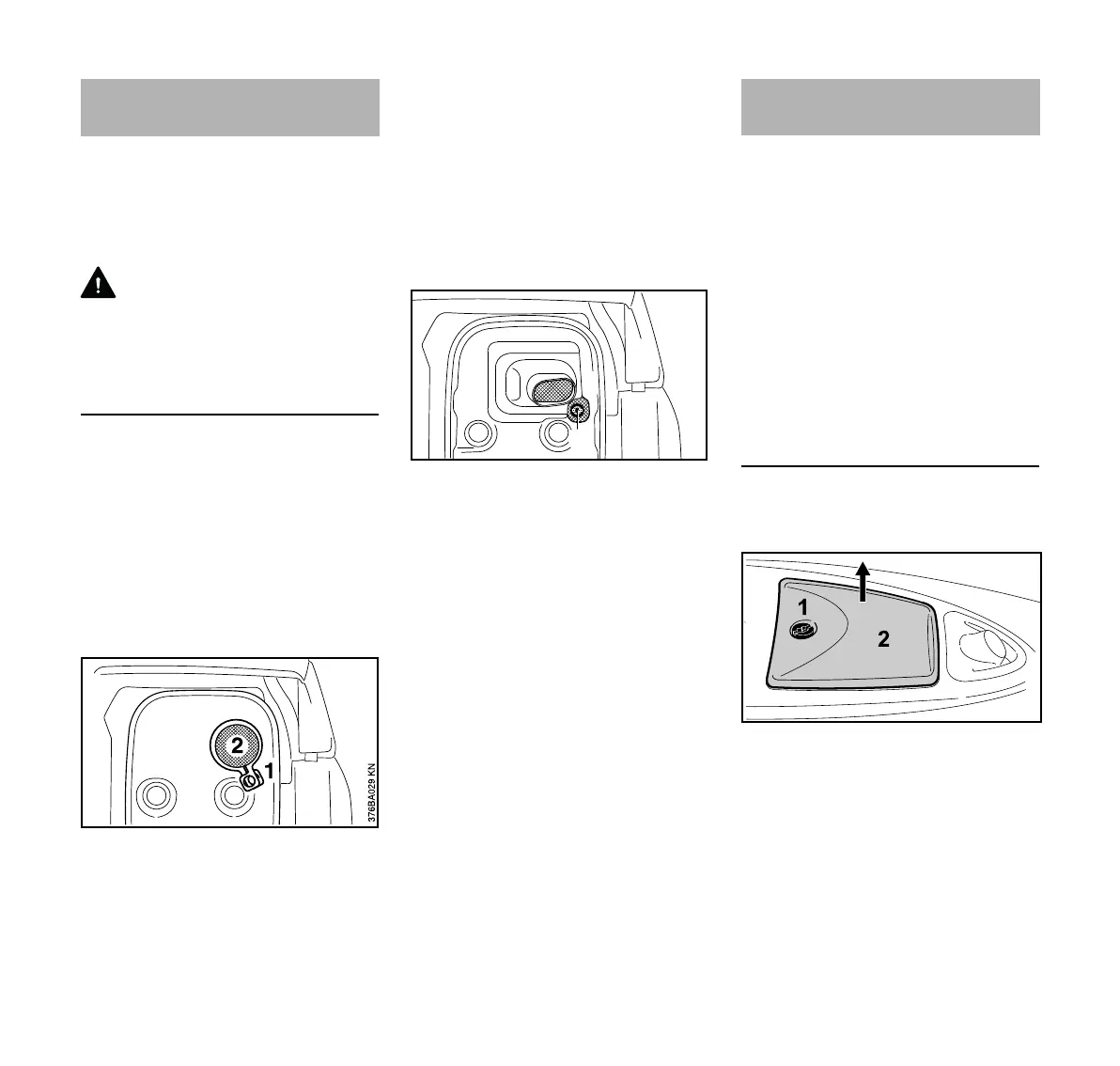

Spark Arresting Screen in
Muffler
1
2
376BA070 KN
Spark Plug
377BA012 KN

Stihl TS700 Specifications

General

Max. Engine Speed	9, 300 rpm
Displacement	98.5 cm³ (6 cu. in.)
Weight	25.6 lbs
Maximum Wheel Size	350 mm
Fuel Capacity	40 oz
Arbor Size	20 mm
Maximum Cutting Depth	125 mm (4.9 in)
