Stinger SPXM1 - Page 11

SPXM1
20
21
StingerElectronics.com StingerElectronics.com
®
PURPLE/WHITE
REVERSE CAMERA TRIGGER INPUT (+)
13PIN DIN FEMALE
WIRED REMOTE
BLACK
GREY
RED
20A
USB
USB
RADIO ANTENNA
RADIO ANTENNA
RED (REAR LINE OUT RIGHT OR SUB-W OUT)
RED (REAR LINE OUT RIGHT OR SUB-W OUT)
WHITE (REAR LINE OUT LEFT OR SUB-W OUT)
WHITE (REAR LINE OUT LEFT OR SUB-W OUT)
RED (FRONT LINE OUT RIGHT)
RED (FRONT LINE OUT RIGHT)
WHITE (FRONT LINE OUT LEFT)
WHITE (FRONT LINE OUT LEFT)
RED (AUX IN RIGHT)
RED (AUX IN RIGHT)
WHITE (AUX IN LEFT)
WHITE (AUX IN LEFT)
REAR/SUB LINE OUT
FRONT LINE OUT
AUX LINE IN
ORANGE/WHITE
GREEN/BLACK
GREEN
RED
WHITE
WHITE/BLACK
GRAY
GRAY/BLACK
BLUE/WHITE
PURPLE/BLACK
PURPLE
BLACK
ANTENNA INPUT
USB INPUT
REVERSE INPUT
VIDEO INPUT
1
23
4
56
78
9
101112
1
2
3
4
5
6
7 8
9
10
11 12
YELLOW - CAMERA / VIDEO INPUT
SWITCH 1 (12V+) WHITE/RED
SWITCH 2 (12V+) GRAY/RED
SWITCH 3 (12V+) GREEN/RED
SWITCH 4 (12V+) PURPLE/RED
PIN WIRE COLOR DESCRIPTION
1 GREEN REAR LEFT SPEAKER +
2 GREEN/BLACK REAR LEFT SPEAKER -
3 ORANGE/WHITE ILLUMINATION +
4 WHITE FRONT LEFT SPEAKER +
5 WHITE BLACK FRONT LEFT SPEAKER -
6 RED ACC 12V+
7 GRAY FRONT RIGHT SPEAKER +
8 GRAY/BLACK FRONT RIGHT SPEAKER -
9 BLUE/WHITE REMOTE/AMP TURN ON
10 PURPLE REAR RIGHT SPEAKER +
11 PURPLE/BLACK REAR RIGHT SPEAKER -
12 BLACK GROUND (-)
A
A
B
B
ACCESSORY CONTROL WIRING
The SPXM1 has 4 switchable outputs/triggers (FIG. A) that can
be used to control external accessories such as lighting, audio or
any other 12V accessory, when used with the optional SPXSH440
SwitchHub.
SWITCH 1-4 wires are 12V+ outputs and can activated individually
by accessing the ACCESSORY CONTROL source.
WARNING!
Accessory control outputs are 100mA. Do not connect directly to
any accessories or conventional relays. Failure to follow instruc-
tions may result in damage to equipment and void the device
warranty.
FIG. A
PIN SIDE

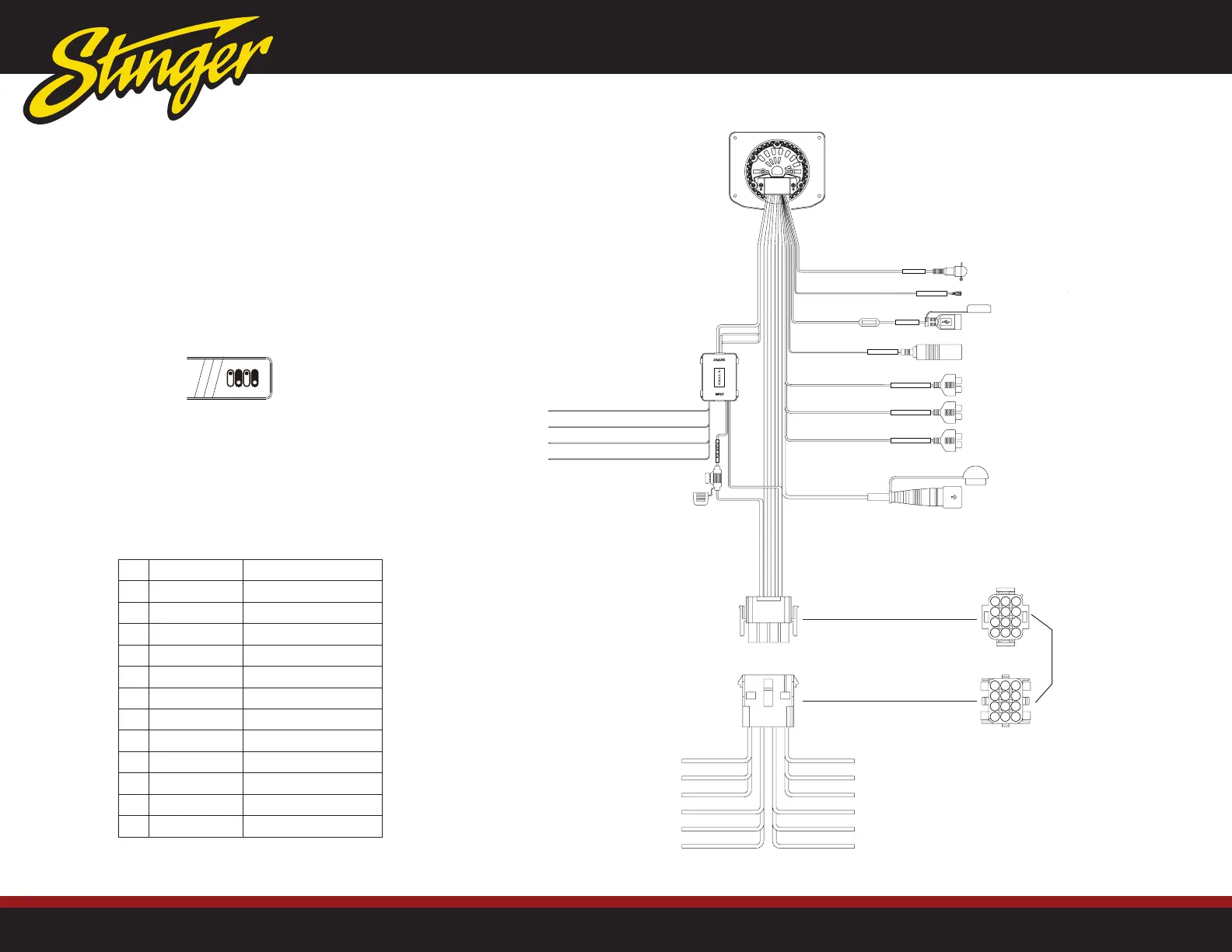

Wiring Diagram
