Cleaning and Maintenance Cont.
To remove the oven door and subsequently the glass as well, please follow the following steps.
Remove oven door

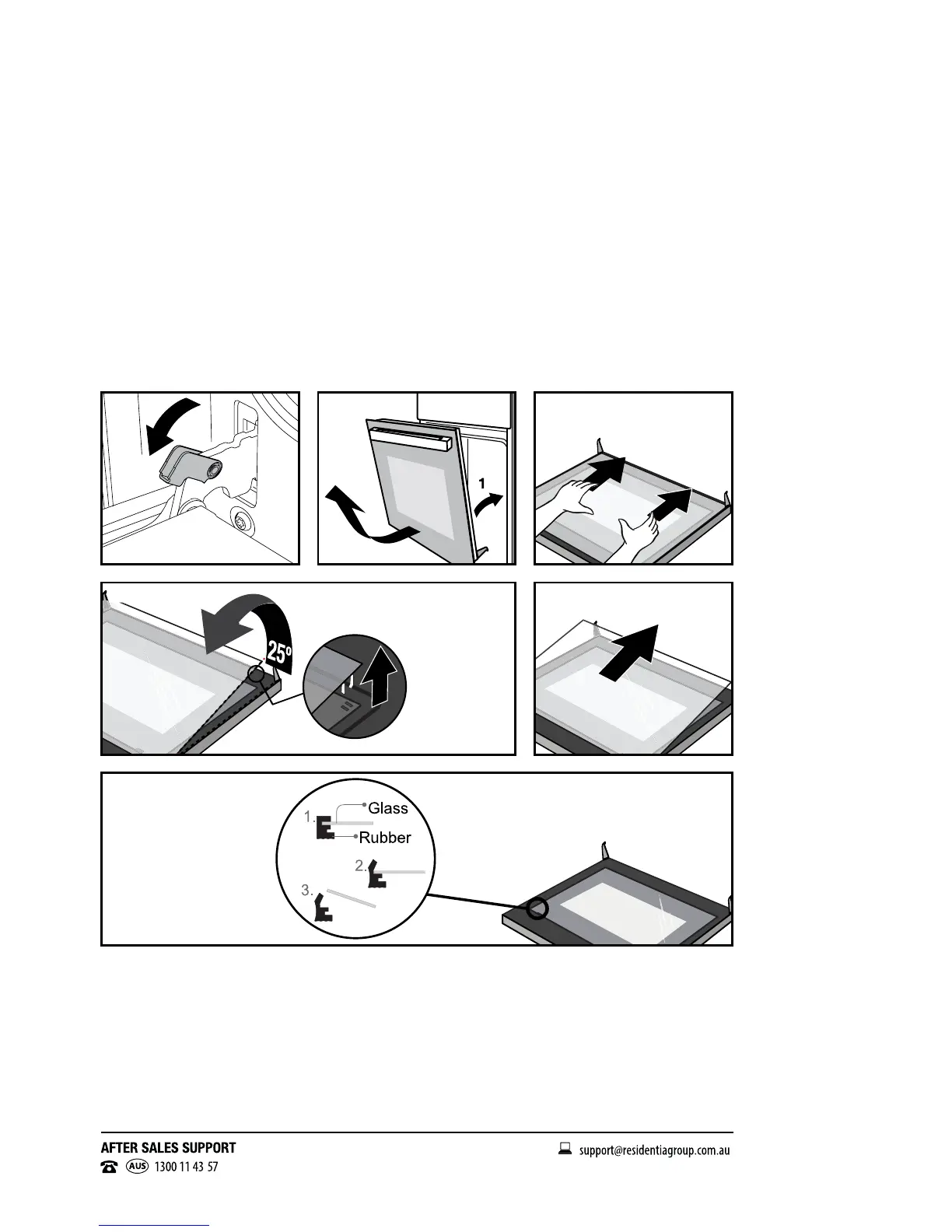

1. Open the oven door completely so that it is horizontal. Pull the buckle at the door hinge backward. (Fig. 5)
2. Close the door to an angle approximately 15°. Lift up and slowly pull the door out from the oven. (Fig. 6)
3. Place the door on a at surface with door top cover facing upwards. Put your hands on the glass and pull
it towards the oven. (Fig. 7)
4. Seperate the glass carefully by lifting it approximately 25°. (Fig. 8)
5. Push the glass into the position indicated by the arrow in Fig. 9. Gently pull the glass out of the socket.
6. After pulling out the inner glass, please take out the middle layer of glass, as shown in Fig. 10.
Put oven door back on
When cleaning is completed, reverse the above procedures to return the door to its original position.
5˚
Fig. 5 Fig. 6
Fig. 7
Fig. 8
Fig. 9
Fig. 10
