Installation
General Installation Warnings:
• The oven must be installed by a licenced electrician.
• Please never try to modify or repair the oven by yourself.
• The oven should be installed with adequate ventilation.
• A suitable isolating switch providing full disconnection from the mains power supply must be incorporated
in the permanent wiring. The switch must be mounted and positioned to comply with the local wiring rules
and regulations. The isolating switch must be of an approved type and provide a 3 mm air gap contact
separation in all poles (or in all active [phase] conductors if the local wiring rules allow for this variation of
the requirements). The isolating switch will be easily accessible to the customer with the oven installed.
• The oven must not be installed behind a decorative door to prevent overheating.
Installation Dimensions

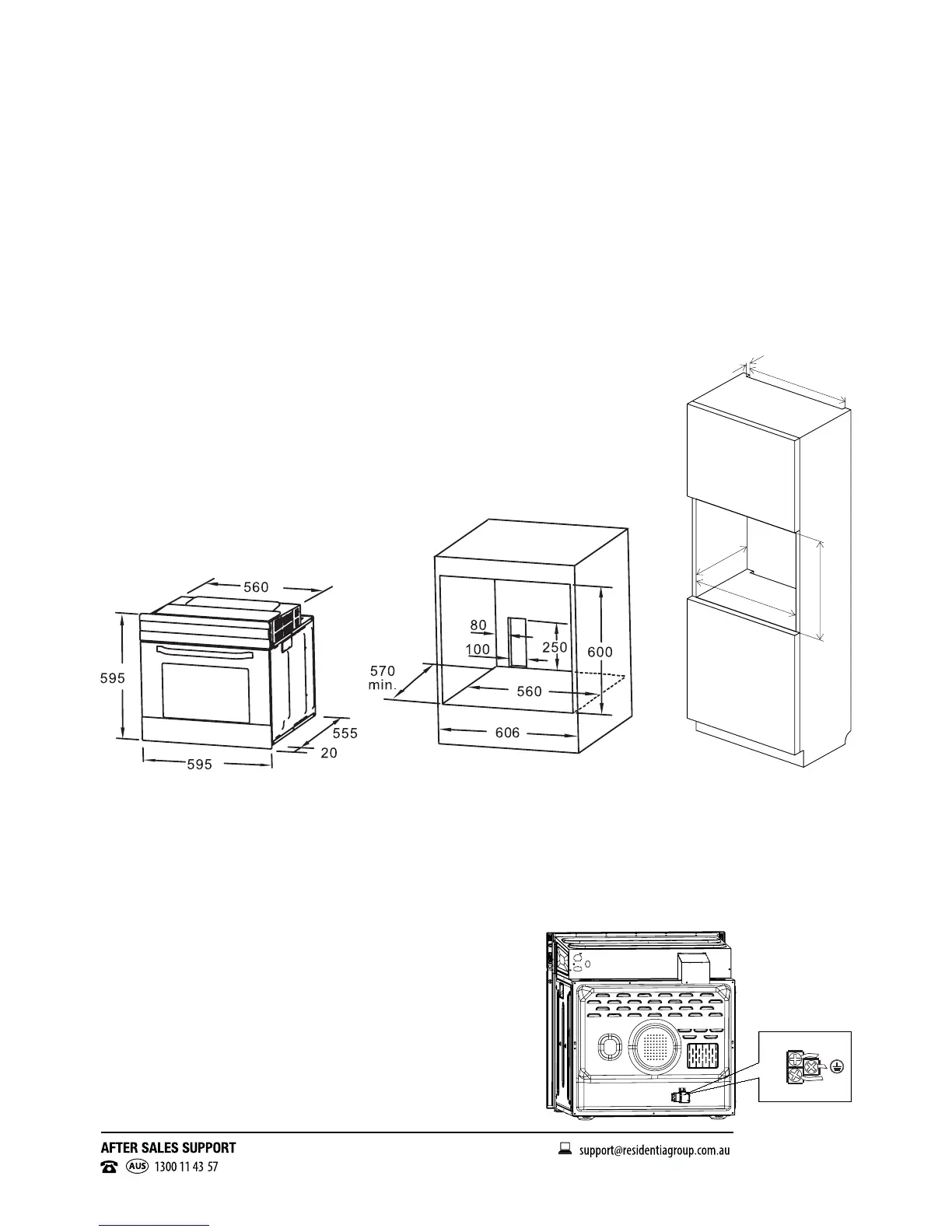

Note. It is a requirement for a ventilation gap to be cut into the
oven cabinet as per the diagrams below.
Oven dimensions
Height: 595mm
Front Width: 595mm
Depth: 575mm
Rear Width: 560mm
Connection of the Oven
This oven must be correctly installed by an appropriately qualied electrician in accordance with all
applicable rules and regulations and following the instructions in this manual.
Do not try to install the oven yourself: doing so will expose you to danger and void the warranty. Improper
installation, adjustment, alteration or service can cause injury or damage. We decline any responsibility for
injury or damage, to persons or property, as a result of improper use or installation.
Important advice for the installer
• Before connecting the appliance, make sure that the
supply voltage marked on the Rating Plate corresponds
with your mains supply voltage.
• WARNING: This appliance must be earthed.
N
L
590-59 5
56 0
560
500
40
600
560
40
570
560
