Stobag Select - Fixing Bracket Distribution: 6 Folding Arms; Select S8130

www.stobag.com
- 12 -
K1 A1 K2 K3 K5 K6 K1A1K2K3
b
d
a
c
e
f
g
h
i
b
d
a
c
e
f
g
W1 K4A2 K6 K5A3W3 W1
j
h
W2 A3 K7 W2 K4 A2
k
l
m
i
j
k
9
Select S8130
140cm 6 x S834
1225 1250 1275 1300 1325 1350 1375 1400 1425 1450 1475 1500 1525 1550 1575 1600 1625 1650 1675 1700 1725 1750 1775 1800
K1 a --- --- --- --- --- --- --- --- --- 15 15 15 20 20 20 25 25 25 30 30 30 35 35 35
A1 b 15 15 15 20 20 20 25 25 25 30 30 30 35 35 35 40 40 40 45 45 45 50 50 50
K2 c 30 30 30 35 35 35 40 40 40 --- --- --- --- --- --- --- --- --- --- --- --- --- --- ---
K3 d --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- ---
W1 e --- --- --- --- --- --- --- --- --- --- --- --- 305 310 315 324 329 334 342 347 352 360 365 370
A2 f 242 247 252 257 262 267 277 282 287 295 300 305 317 322 327 336 341 346 354 359 364 372 377 382
K4 g 257 262 267 272 277 282 292 297 302 310 315 320 332 337 342 351 356 361 369 374 379 387 392 397
W2 h 432 442 452 462 472 482 494 504 514 525 535 545 --- --- --- --- --- --- --- --- --- --- --- ---
K5 i 459 469 479 489 499 509 519 531 541 552 562 572 582 592 602 615 625 635 645 655 665 675 685 695
A3 j 474 484 494 504 514 524 536 546 556 567 577 587 597 608 617 630 640 650 660 670 680 690 700 710
K6 k --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- ---
K7 l --- --- --- --- --- --- --- --- --- --- --- --- 748 760 772 785 797 810 822 835 847 860 872 885
W3 m --- --- --- --- --- --- --- --- --- --- --- --- 762 775 787 800 812 825 837 850 862 875 887 900
150cm 6 x S834
1225 1250 1275 1300 1325 1350 1375 1400 1425 1450 1475 1500 1525 1550 1575 1600 1625 1650 1675 1700 1725 1750 1775 1800
K1 a --- --- --- --- --- --- --- --- --- 15 15 15 20 20 20 25 25 25 30 30 30 35 35 35
A1 b 15 15 15 20 20 20 25 25 25 30 30 30 35 35 35 40 40 40 45 45 45 50 50 50
K2 c 30 30 30 35 35 35 40 40 40 --- --- --- --- --- --- --- --- --- --- --- --- --- --- ---
K3 d --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- ---
W1 e --- --- --- --- --- --- --- --- --- --- --- --- 305 310 315 324 329 334 342 347 352 360 365 370
A2 f 242 247 252 257 262 267 277 282 287 295 300 305 317 322 327 336 341 346 354 359 364 372 377 382
K4 g 257 262 267 272 277 282 292 297 302 310 315 320 332 337 342 351 356 361 369 374 379 387 392 397
W2 h 432 442 452 462 472 482 494 504 514 525 535 545 --- --- --- --- --- --- --- --- --- --- --- ---
K5 i 459 469 479 489 499 509 519 531 541 552 562 572 582 592 602 615 625 635 645 655 665 675 685 695
A3 j 474 484 494 504 514 524 536 546 556 567 577 587 597 608 617 630 640 650 660 670 680 690 700 710
K6 k --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- ---
K7 l --- --- --- --- --- --- --- --- --- --- --- --- 748 760 772 785 797 810 822 835 847 860 872 885
W3 m --- --- --- --- --- --- --- --- --- --- --- --- 762 775 787 800 812 825 837 850 862 875 887 900

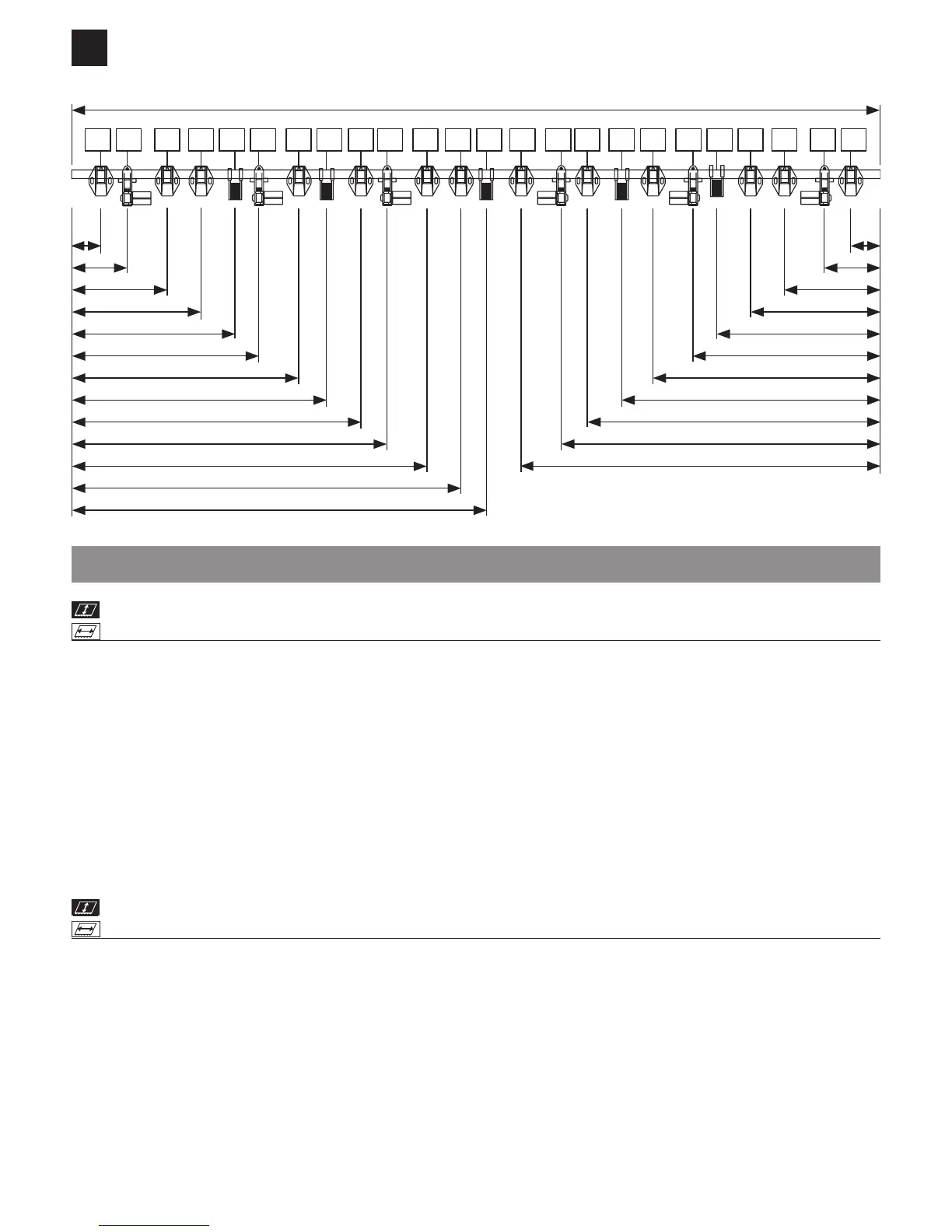

Fixing bracket distribution with 6 folding arms /
TW /
Distribución de los soportes con 6 brazos articulados
Ant.
