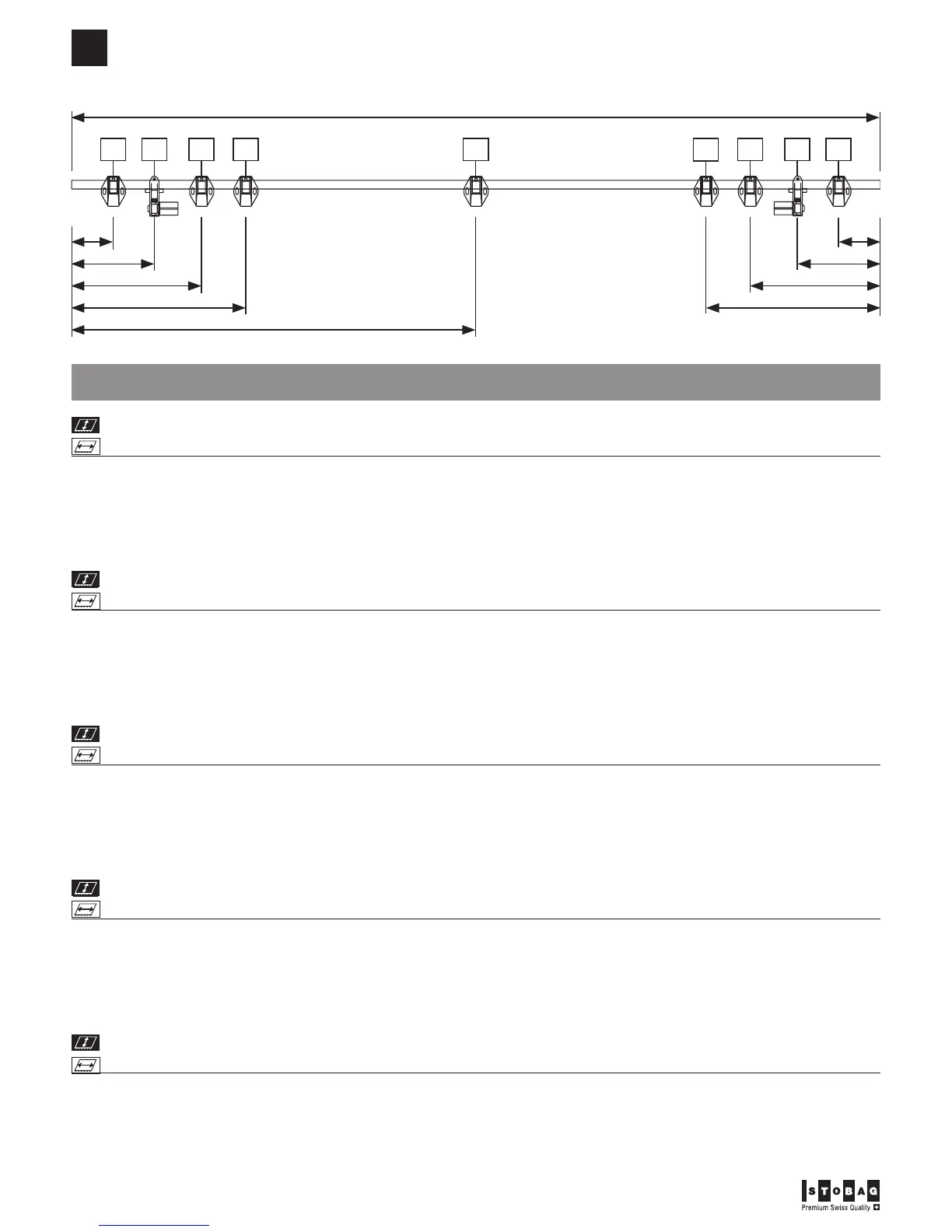

Stobag Select - Fixing Bracket Distribution: 2 Folding Arms; Select S8130; Select Ombramatic S8135

- 7 -
K1
A1 K2 K3 K4 K1A1K2
K3
b
a
d
d
a
c
e
b
c
7
Select S8130 / Select Ombramatic S8135
140cm 2 x S834
175 200 225 250 275 300 325 350 375 400 425 450 475 500 525 550 575 600
K1 a --- --- --- --- --- --- --- --- --- 25 30 35 40 45 50 55 60 65
A1 b 10 10 10 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80
K2 c 25 25 25 25 30 35 40 45 50 --- --- --- --- --- --- --- --- ---
K3 d --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- ---
K4 e --- --- --- --- --- --- --- --- --- --- 212 225 237 250 262 275 285 300
150cm 2 x S834
175 200 225 250 275 300 325 350 375 400 425 450 475 500 525 550 575 600
K1 a --- --- --- --- --- --- --- --- --- 25 30 35 40 45 50 55 60 65
A1 b --- 10 10 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80
K2 c --- 25 25 25 30 35 40 45 50 --- --- --- --- --- --- --- --- ---
K3 d --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- ---
K4 e --- --- --- --- --- --- --- --- --- --- 212 225 237 250 262 275 285 300
160cm 2 x S834
175 200 225 250 275 300 325 350 375 400 425 450 475 500 525 550 575 600
K1 a --- --- --- --- --- --- --- --- --- 25 30 35 40 45 50 55 60 65
A1 b --- 10 10 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80
K2 c --- 25 25 25 30 35 40 45 50 --- --- --- --- --- --- --- --- ---
K3 d --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- ---
K4 e --- --- --- --- --- --- --- --- --- --- 212 225 237 250 262 275 285 300
180cm 2 x S834
175 200 225 250 275 300 325 350 375 400 425 450 475 500 525 550 575 600
K1 a --- --- --- --- --- --- --- --- --- 25 30 35 40 45 50 55 60 65
A1 b --- --- 10 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80
K2 c --- --- 25 25 30 35 40 45 50 --- --- --- --- --- --- --- --- ---
K3 d --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- ---
K4 e --- --- --- --- --- --- --- --- --- --- 212 225 237 250 262 275 285 300
200cm 2 x S834
175 200 225 250 275 300 325 350 375 400 425 450 475 500 525 550 575 600
K1 a --- --- --- --- --- --- --- --- --- --- 25 30 35 40 45 50 55 60
A1 b --- --- --- 10 10 15 20 25 30 35 40 45 50 55 60 65 70 75
K2 c --- --- --- 25 25 30 35 40 45 50 --- --- --- --- --- --- --- ---
K3 d --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- ---
K4 e --- --- --- --- --- --- --- --- --- --- 212 225 237 250 262 275 285 300
TW /
Fixing bracket distribution with 2 folding arms /
Distribución de los soportes con 2 brazos articulados
Ant.
