Stobag Select - Exploded View Wall Installation; Exploded View Wall Installation; Vista Desarrollada: Montaje a Pared; Legend; Legend; Leyenda

www.stobag.com
- 6 -
5
6
S845
RS13/4
S843/1/R
S821/1
RS14/4
S834 L
S834 R
S822
S822
S821/1
S843/1/L
RS19/11
S865/7
S892 L
S894
S892 R

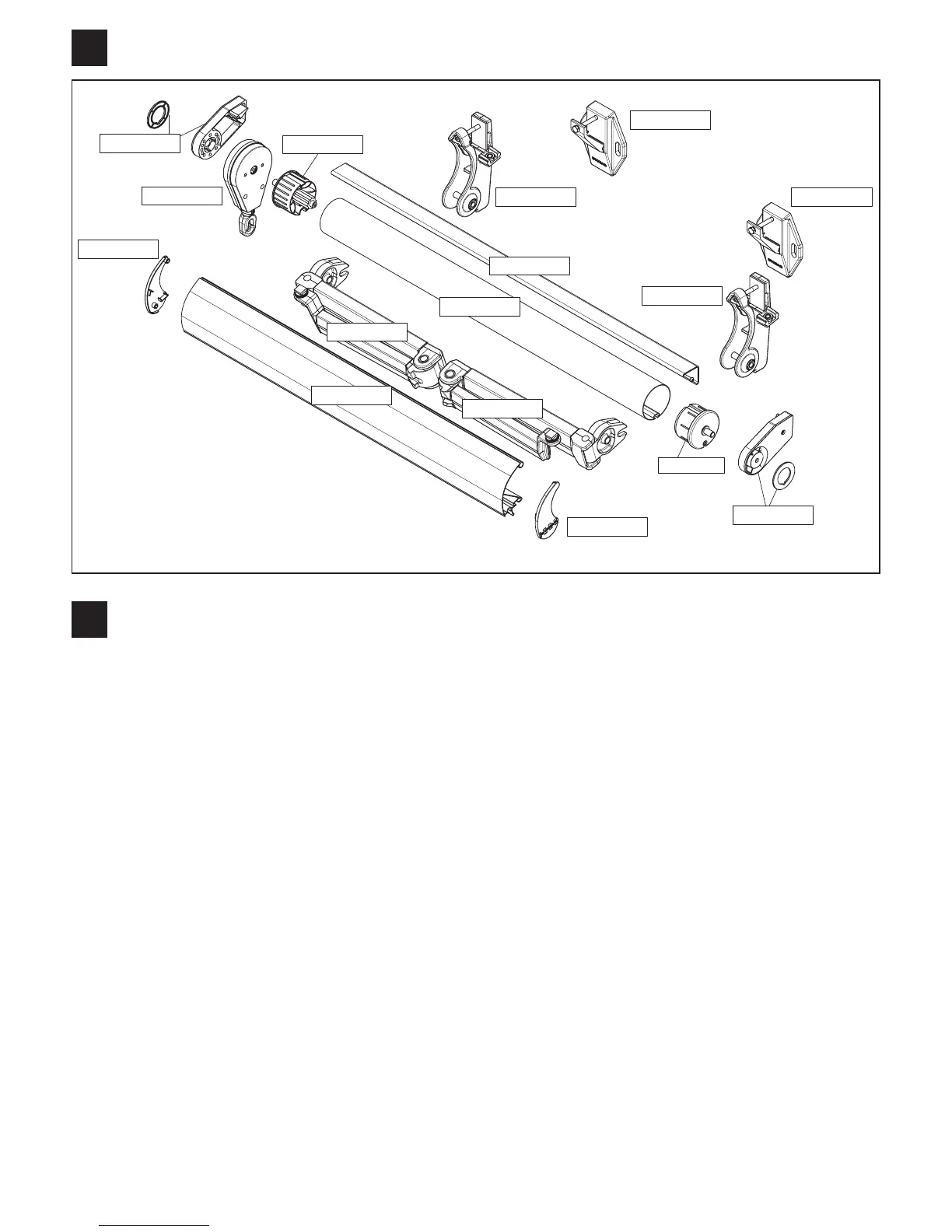

Exploded view wall installation /
S821/1 Fixing bracket
S822 Arm support
S845 Mounting bar
RS13/.. Roller tube
RS14/.. Roller tube gudgeon, round
RS19/.. Roller tube gudgeon, octagonal
S865/7 Gear box
S843/1/lr Set for gearbox bearing and opposed bearing
S834 Folding arm
S894 Front rail
S892 End caps
Legend /
Vista desarrollada: montaje a pared
Soporte
Soporte del brazo
Tubo de carga
Tubo de enrolle
Casquillo
Cubierta muelle
Máquina
Kit de soportes punta / motor
Brazo articulado
Perfil de caída
Tapa embellecedora
Leyenda
