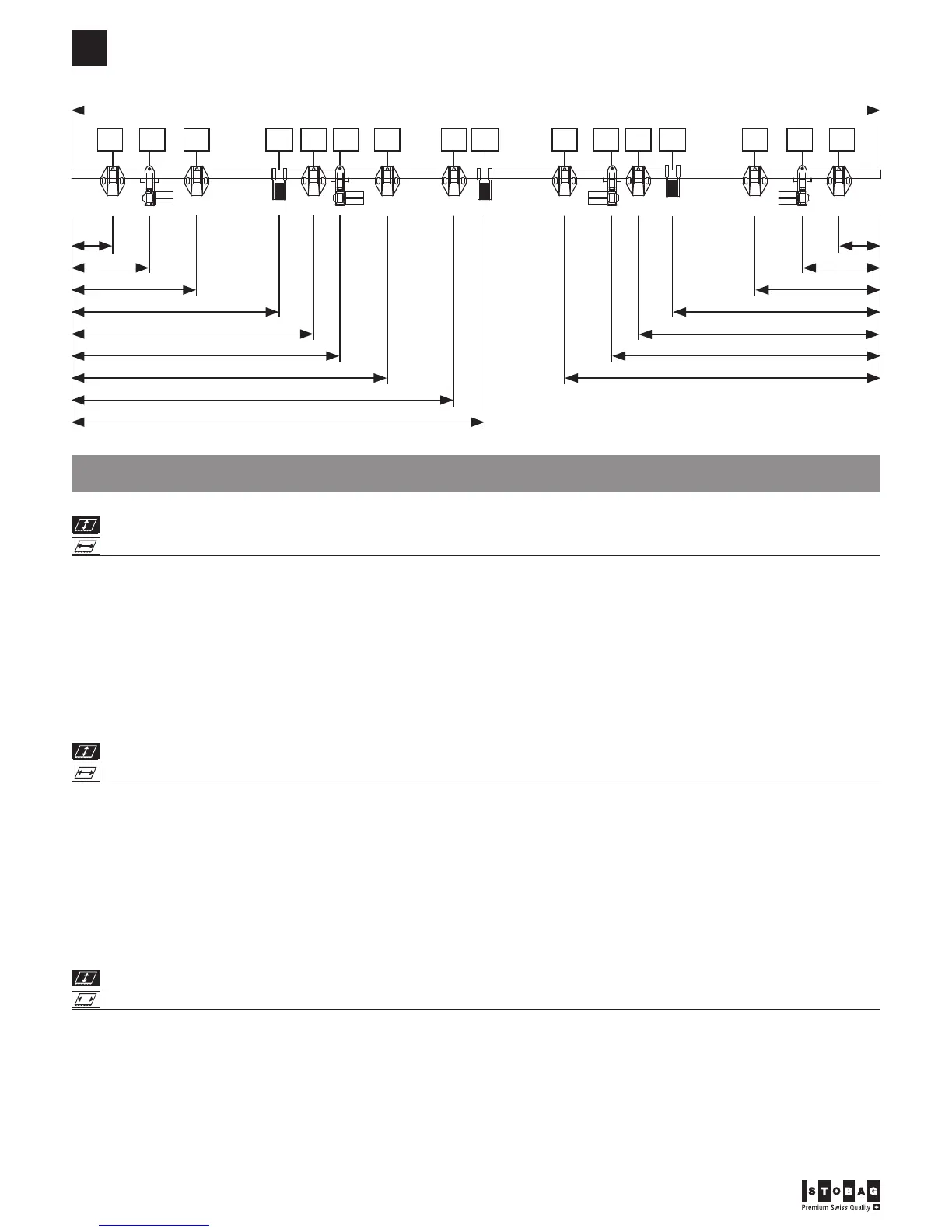

Stobag Select - Fixing Bracket Distribution: 4 Folding Arms; Select S8130

- 9 -
K1 A1 K2 K4 K5 K1A1K2
b
d
a
c
e
f
g
h
i
b
d
a
c
e
f
g
W1 K3 A2 K4 K3A2W2 W1
8
Select S8130
140cm 4 x S834
625 650 675 700 725 750 775 800 825 850 875 900 925 950 975 1000 1025 1050 1075 1100 1125 1150 1175 1200
K1 a --- --- --- --- --- --- --- --- --- --- --- --- --- --- 15 15 20 20 25 25 30 30 35 35
A1 b 10 10 10 10 10 10 15 15 15 20 20 20 25 25 30 30 35 35 40 40 45 45 50 50
K2 c 25 25 25 25 25 25 30 30 30 35 35 35 40 40 --- --- --- --- --- --- --- --- --- --
W1 d --- --- --- --- --- --- --- --- --- --- --- --- 276 285 295 303 313 322 332 340 350 355 365 374
K3 e --- --- --- --- --- --- --- --- --- --- --- --- 288 297 307 315 325 334 344 352 362 370 380 389
A2 f 194 202 210 219 227 235 245 254 262 272 280 289 300 309 319 327 337 346 356 364 374 385 395 404
K4 g 209 217 225 234 242 250 260 269 277 287 295 304 --- --- --- --- --- --- --- --- --- --- --- ---
K5 h 297 310 322 335 347 360 372 385 397 410 422 435 462 475 487 500 512 525 537 550 562 575 587 600
W2 i 312 325 337 350 362 375 387 400 412 425 437 450 --- --- --- --- --- --- --- --- --- --- --- ---
150cm 4 x S834
625 650 675 700 725 750 775 800 825 850 875 900 925 950 975 1000 1025 1050 1075 1100 1125 1150 1175 1200
K1 a --- --- --- --- --- --- --- --- --- --- --- --- --- --- 15 15 20 20 25 25 30 30 35 35
A1 b 10 10 10 10 10 10 15 15 15 20 20 20 25 25 30 30 35 35 40 40 45 45 50 50
K2 c 25 25 25 25 25 25 30 30 30 35 35 35 40 40 --- --- --- --- --- --- --- --- --- ---
W1 d --- --- --- --- --- --- --- --- --- --- --- --- 276 285 295 303 313 322 332 340 350 355 365 374
K3 e --- --- --- --- --- --- --- --- --- --- --- --- 288 297 307 315 325 334 344 352 362 370 380 389
A2 f 194 202 210 219 227 235 245 254 262 272 280 289 300 309 319 327 337 346 356 364 374 385 395 404
K4 g 209 217 225 234 242 250 260 269 277 287 295 304 --- --- --- --- --- --- --- --- --- --- --- ---
K5 h 297 310 322 335 347 360 372 385 397 410 422 435 462 475 487 500 512 525 537 550 562 575 587 600
W2 i 312 325 337 350 362 375 387 400 412 425 437 450 --- --- --- --- --- --- --- --- --- --- --- ---
160cm 4 x S834
625 650 675 700 725 750 775 800 825 850 875 900 925 950 975 1000 1025 1050 1075 1100 1125 1150 1175 1200
K1 a --- --- --- --- --- --- --- --- --- --- --- --- --- --- 15 15 20 20 25 25 30 30 35 35
A1 b 10 10 10 10 10 10 15 15 15 20 20 20 25 25 30 30 35 35 40 40 45 45 50 50
K2 c 25 25 25 25 25 25 30 30 30 35 35 35 40 40 --- --- --- --- --- --- --- --- --- ---
W1 d --- --- --- --- --- --- --- --- --- --- --- --- 276 285 295 303 313 322 332 340 350 355 365 374
K3 e --- --- --- --- --- --- --- --- --- --- --- --- 288 297 307 315 325 334 344 352 362 370 380 389
A2 f 194 202 210 219 227 235 245 254 262 272 280 289 300 309 319 327 337 346 356 364 374 385 395 404
K4 g 209 217 225 234 242 250 260 269 277 287 295 304 --- --- --- --- --- --- --- --- --- --- --- ---
K5 h 297 310 322 335 347 360 372 385 397 410 422 435 462 475 487 500 512 525 537 550 562 575 587 600
W2 i 312 325 337 350 362 375 387 400 412 425 437 450 --- --- --- --- --- --- --- --- --- --- --- ---
Fixing bracket distribution with 4 folding arms /
TW /
Distribución de los soportes con 4 brazos articulados
