Installation – Inset into panel (2212 only)

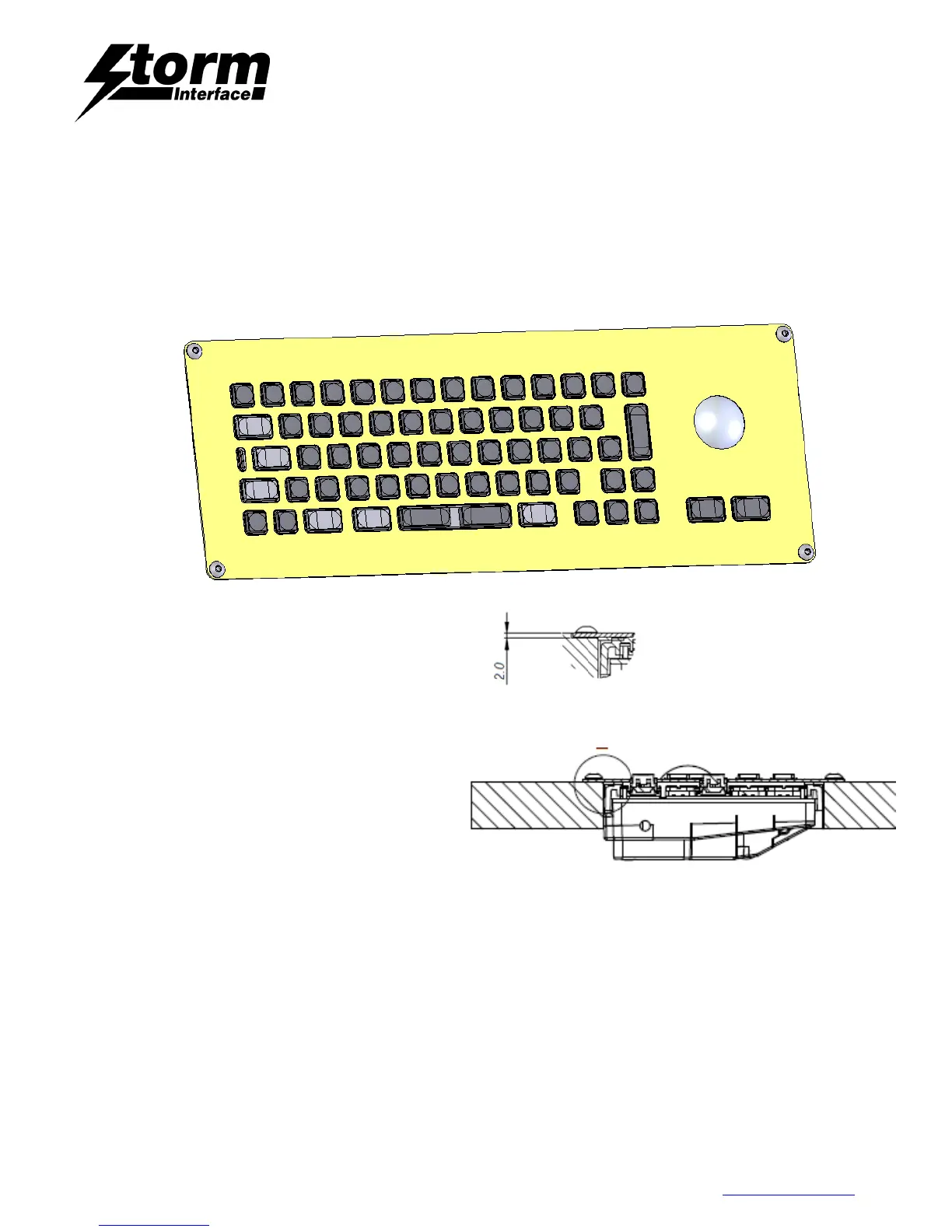

• Machine panel with 4 holes and recess detail if required (see below)
• Fit the adhesive gasket
• Attach keyboard using the supplied 4x M5 x 30 A2 stainless steel socket button head screws, 4x M5 stainless
steel washers and 4x M5 stainless steel nyloc nuts.
Either recess the top plate into the panel (2mm deep rebate)
Or simply drill the 4 holes and the top plate then will be on top of your panel
