Installation and parts
Setting up a treadmill
Carefully remove the treadmill from the shipping container. Make sure that no parts are
missing. When assembling the treadmill, do not tighten the screws all the way before
completing the entire installation.

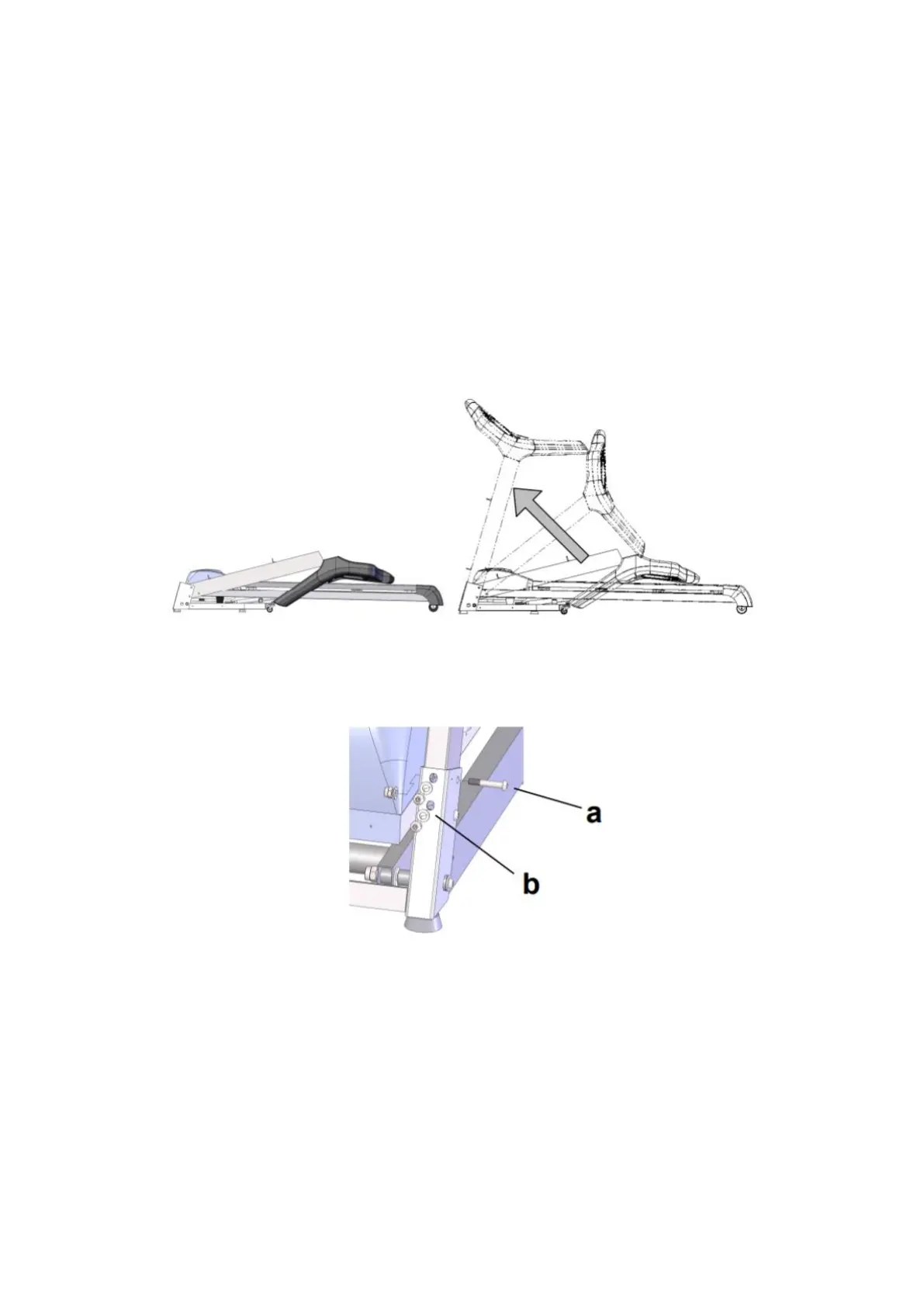

A) Place the machine on a flat surface and erect the vertical beams with the control
panel in the direction shown in the picture below.
B) Use spanner No. 5 and fix the beams to the base of the belt with M8*55 screws (a).
Secure the beams with M8*22 screws (b).
C) Use spanner No. 5 and fix the control panel to the beams with M8*22 screws.
