Strapack i-10 - Inner Adjustment Dials and Fuses; [Heater]; [Heater Temperature Adjustment Dial]; [Heater Adjustment according to varying strap characteristics]

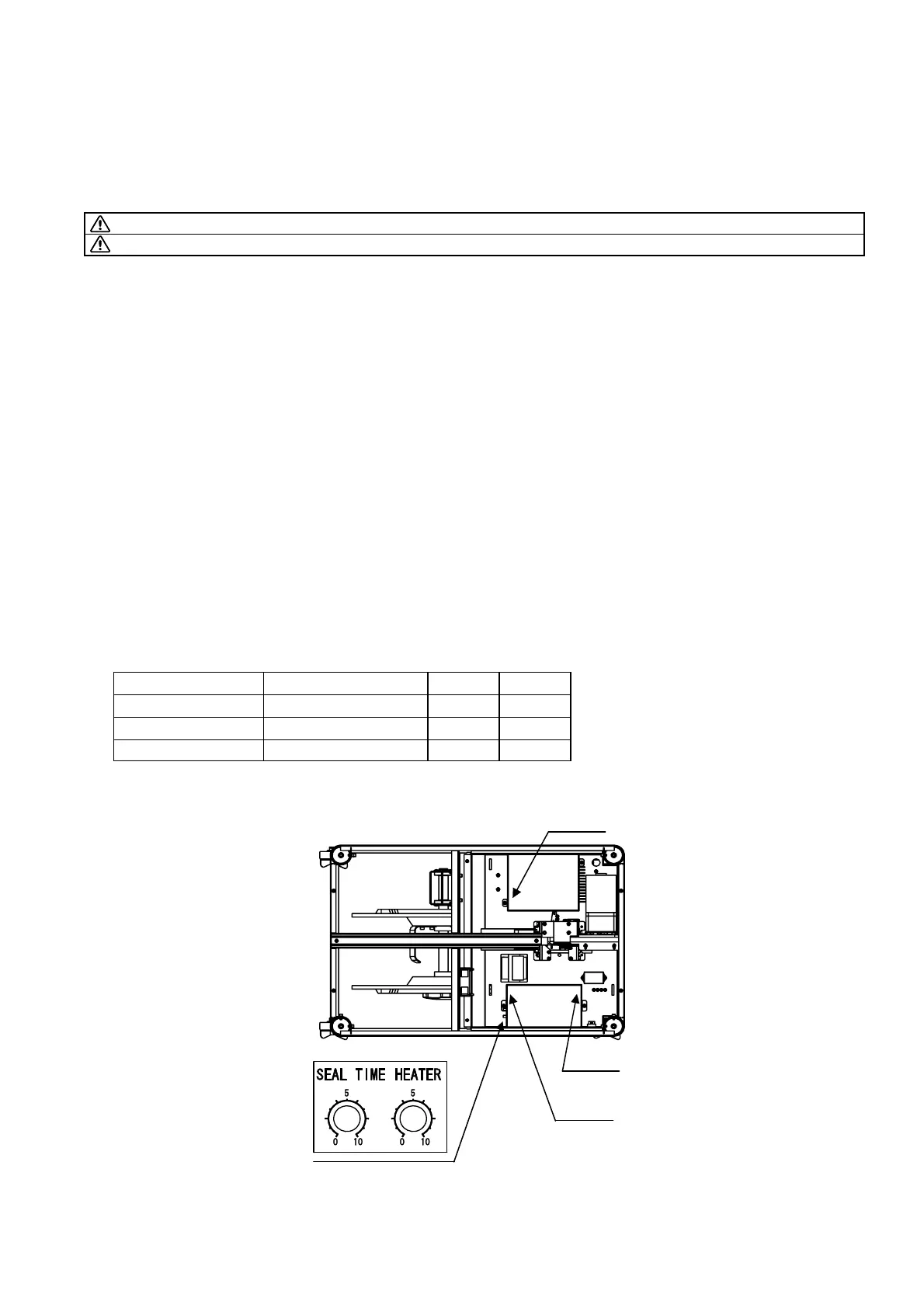

Inner Adjustment Dials and Fuses
Heater Dial, Seal Prolongation Dial and Fuse are equipped inside of Machine.
i-10 applies the HEAT SEAL process to seal PP straps.
Check the Sealed section occasionally as Seal Efficiency is affected with the Heater Temperature.
WARNING
CAUTION Carefully read the separate leaflet"Check That Seal"prior to adjusting the heater temperature.
This dial prolongs the cooling time before releasing the strap. It would be advisable to turn this dial clockwise
slightly when insufficient sealing is found.
Size Capacity
Ø 6.4X30 250V 6A
Ø 6.4X30 250V 20A
If a fuse blows out, turn off the power and unplug Power Supply Cable.
The Fuses prevent overload accidents.
Before adjusting machine,turn off the Power Select Switch and unplug the Power Supply Cable.
[Heater Adjustment according to varying strap characteristics]
The temperature of the heater has already been adjusted forPP-strap use in our Production Department.
[Heater]
[Seal Prolongation Dial] (SEAL TIME)
It may require further adjustment for other PP-strap specifications. Please read the separate leaflet
[FUSE]
[HeaterTemperature Adjustment Dial]
counterclockwise will lower the temperature.
Fuse 1 ( 6A )
Fuse 2 ( 10A )
The temperature should be adjusted according to the working environment, the local climate and the
installation location of the machine. In a location where high temperature is required, turning the dial
clockwise raises the temperature. In a place where low temperature is needed, turning the dial
Midget Fuse
Midget Fuse
Description
Replace the blown fuse according to the list below.
Fuse 2
Fuse 1
Ø 6.4X30 250V 10A
Midget FuseFuse 3 ( 20A )
Fuse 3
