Maintenance Model 6DS-SP Planarizer
9 - 76 Version 4.0 - February 1998

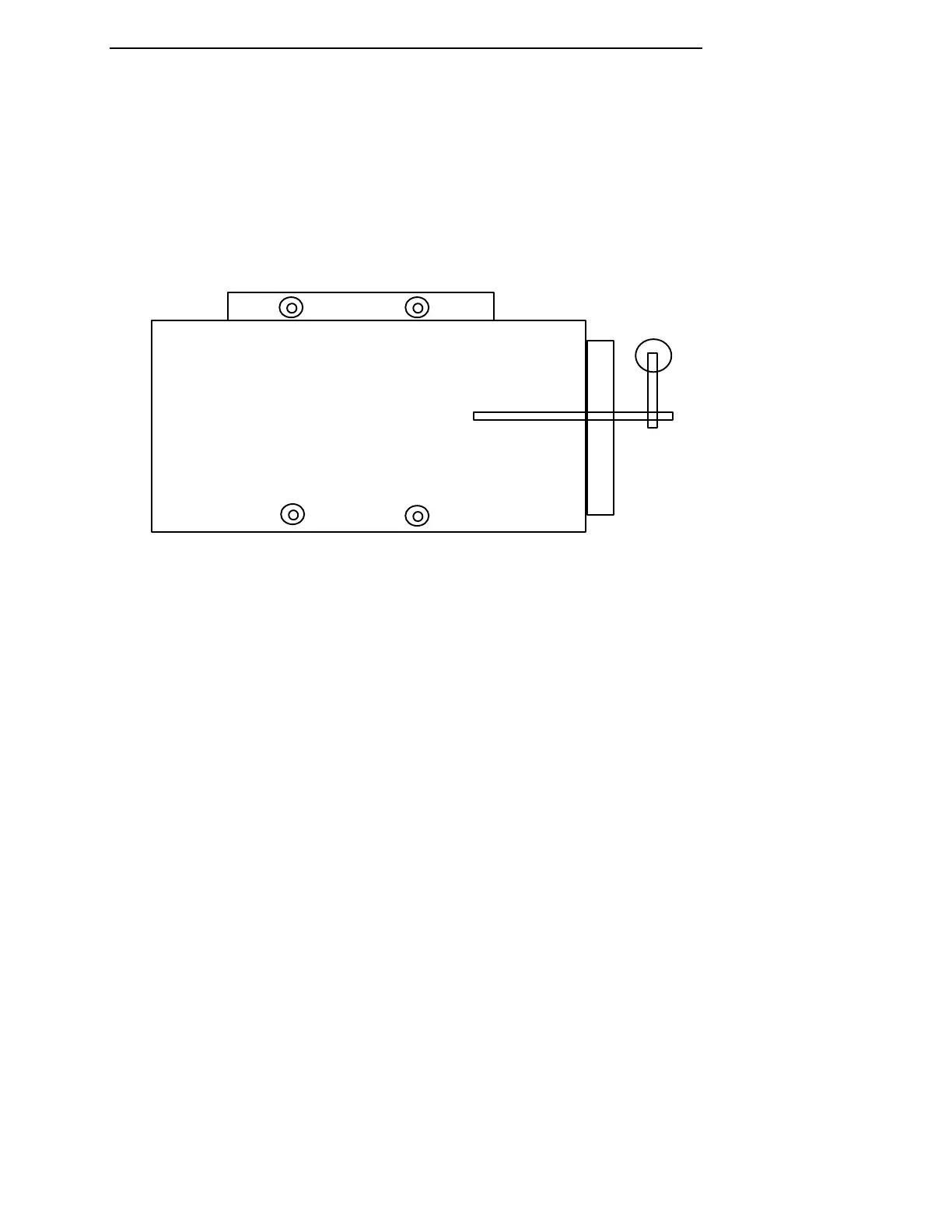

Figure 9-15 Sketch Showing Robot Leveling Adjustment Jam Nut/Set Screw
Pairs and Dial Indicator Reading Points
A
B
CD
1
2
3
4
56
7
9. Place a small Post-it note at each of the points on the surface plate
corresponding to those points labeled 1, 2, 3, 4, 5, 6, and 7 in Figure 9-
15.
10. Zero the dial indicator at Point 1.
11. Move the indicator to each of the points listed below and record the
reading on the Post-it note placed there:
Point 1: __0__
Point 2: _____
Point 3: _____
Point 4: _____
Point 5: _____
Point 6: _____
Point 7: _____
