Strasbaugh Machine Description
Version 4.0 - February 1998 2 - 7

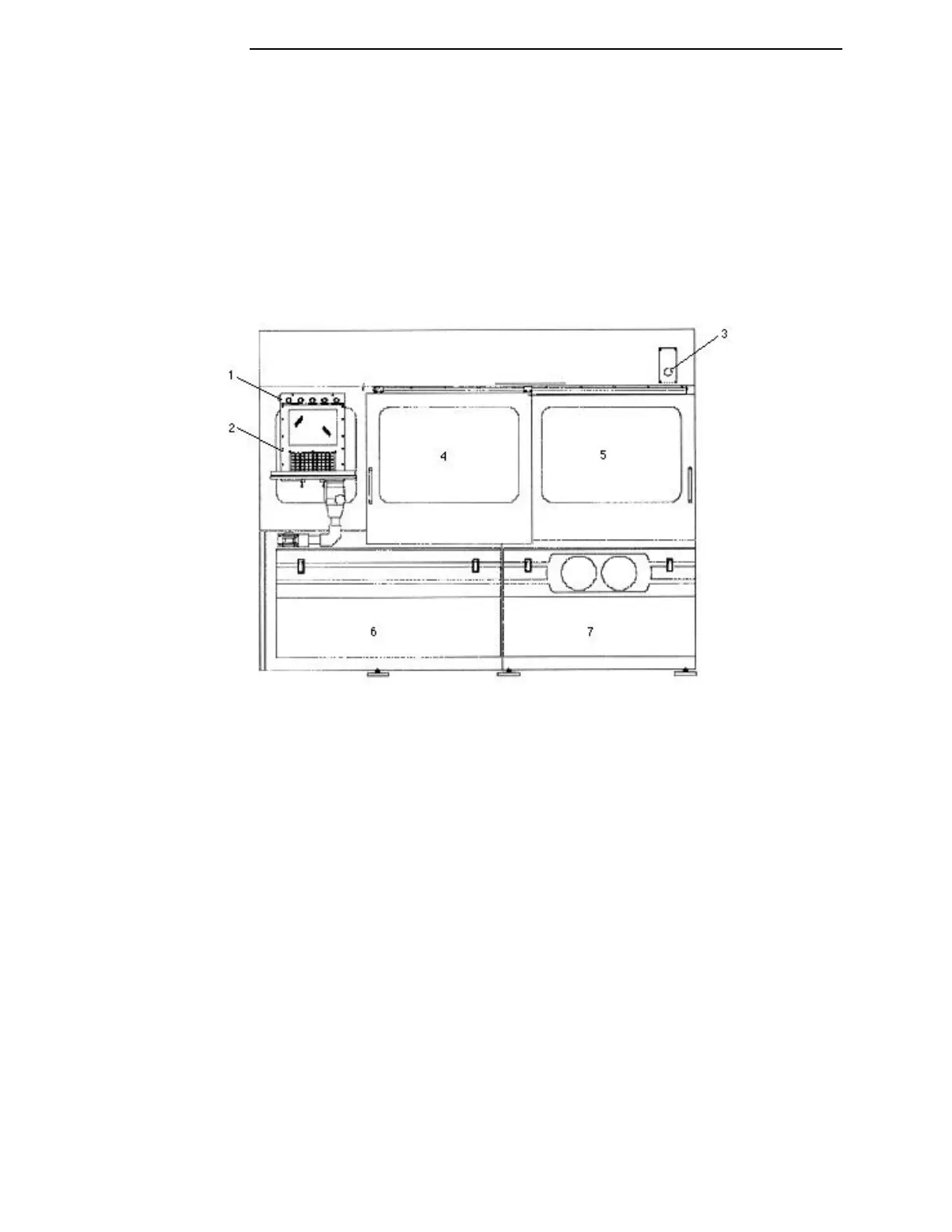

Figure 2-1 Model 6DS-SP Planarizer - Front View
1 Control Panel
2 Monitor and Keyboard
3 Right Top Emergency Off Button
4 Left Side Polish Section (Operator) Door
5 Right Side Polish Section (Operator) Door
6 Lower Left Front Service Door
7 Lower Right Front Service Door
7a Optional Fixed Remote Monitor
