Strasbaugh Mechanical Maintenance Procedures
Version 4.0 - February 1998 9 - 169
TABLE LOCKING CYLINDER REED SWITCH
ADJUSTMENTS
A. BEFORE YOU BEGIN
Tools Required
• flat blade screwdriver with a 24-in. handle
• small flat blade screwdriver
• flashlight
• mirror attached to a long handle

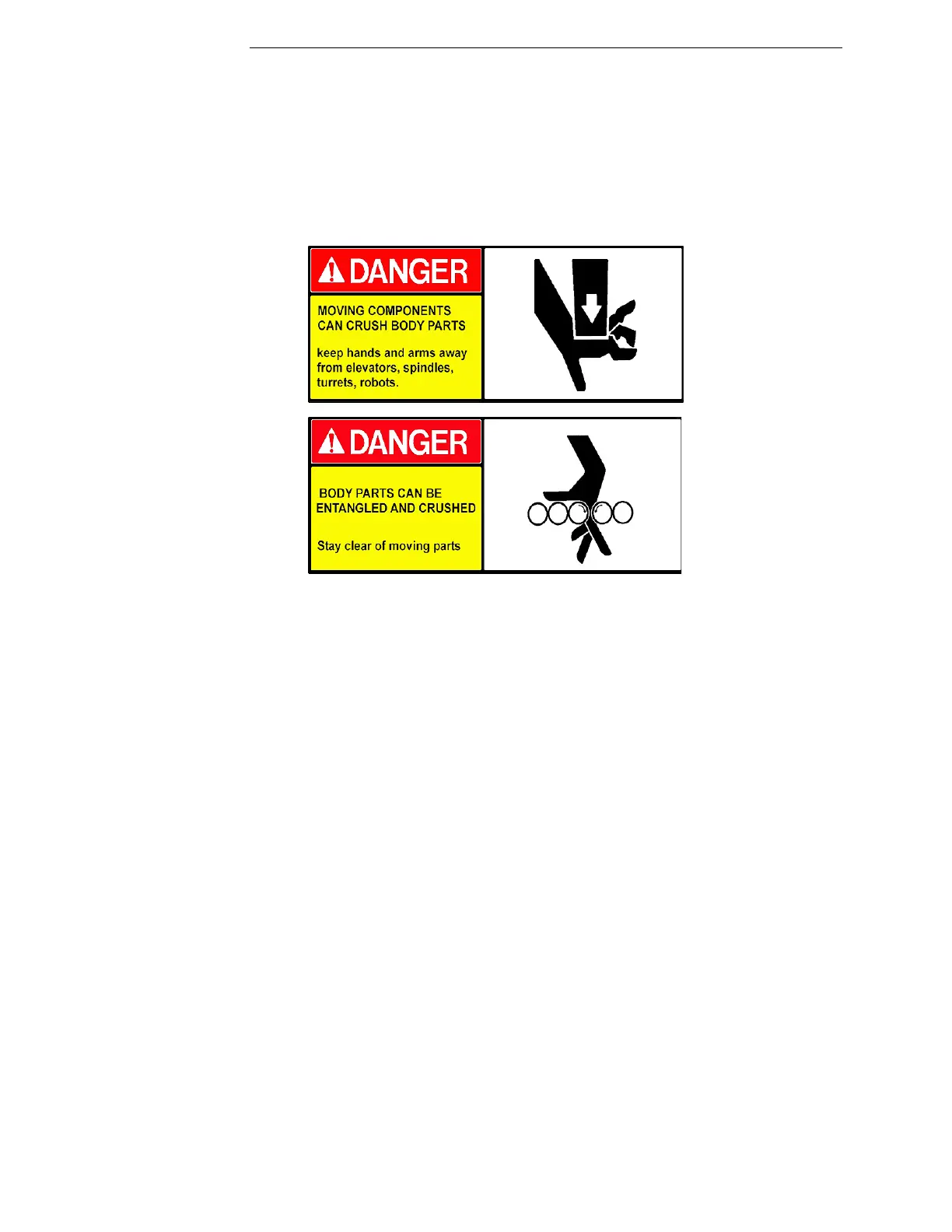

B. TEST THE PRESENT POSITION AND ADJUST
1. Close all machine doors.
2. If needed, at Page 1 of the Manual Control Menu select Shuttle Move
and choose Rear to move the shuttle to its rear position.
3. At the Diagnostics Menu, select Toggle Output and enter 3 to turn
Output 3 (Second Table Lock) ON, engaging the table polish position
locks.
