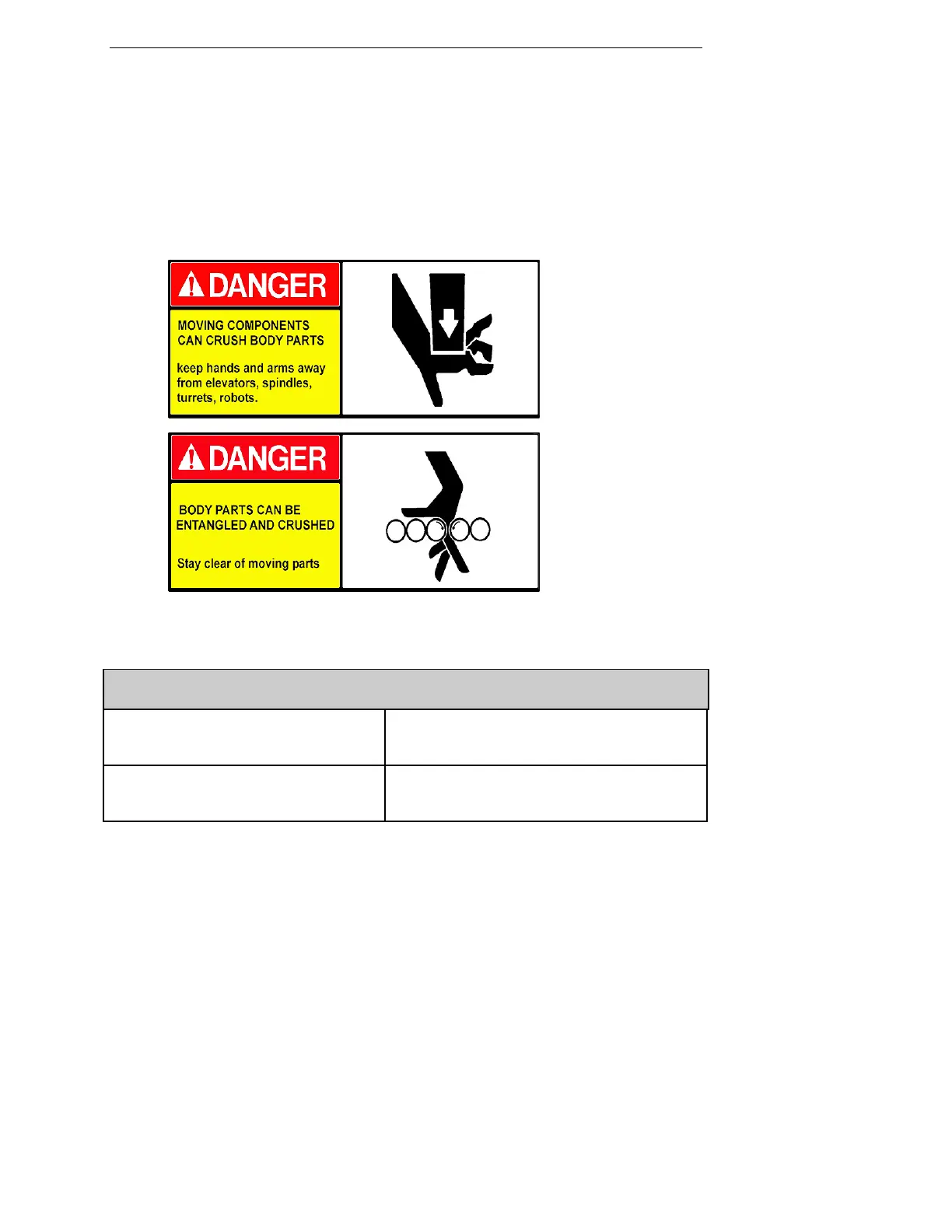

Maintenance Model 6DS-SP Planarizer
10 - 34 Version 4.0 - February 1998
BRIDGE LEFT/RIGHT CURTAIN
POSITION CALIBRATION
Note: This procedure must be done even if the curtain rinse option is not
installed.
CALIBRATION VARIABLE(S) SET DURING THIS PROCEDURE
14 Bridge left curtain position
Curtain rinse option
Nominal value: -8 in.
The distance in negative inches from the primary
table center to a position that will place the left
carrier over the optional curtain rinse nozzles.
15 Bridge right curtain position
Curtain rinse option
Nominal value: -19 in.
The distance in negative inches from the primary
table center to a position that will place the right
carrier over the optional curtain rinse nozzles.
LEFT CURTAIN
A. BEFORE YOU BEGIN
Tools Required
• none
