Strasbaugh Software Calibration Procedures
Version 4.0 - February 1998 10 - 45
PROGRAMMABLE ARM CALIBRATION
[#4 IN CONDITIONING ARM ADJUSTMENT SERIES]
The optional programmable conditioning arm calibration and parameter setup is
used only to establish a park and table center position rather than to define the
operating sweep endpoints. The Conditioning Parameters Menu has choices that
define the sweep endpoints in terms of inches from the table center.

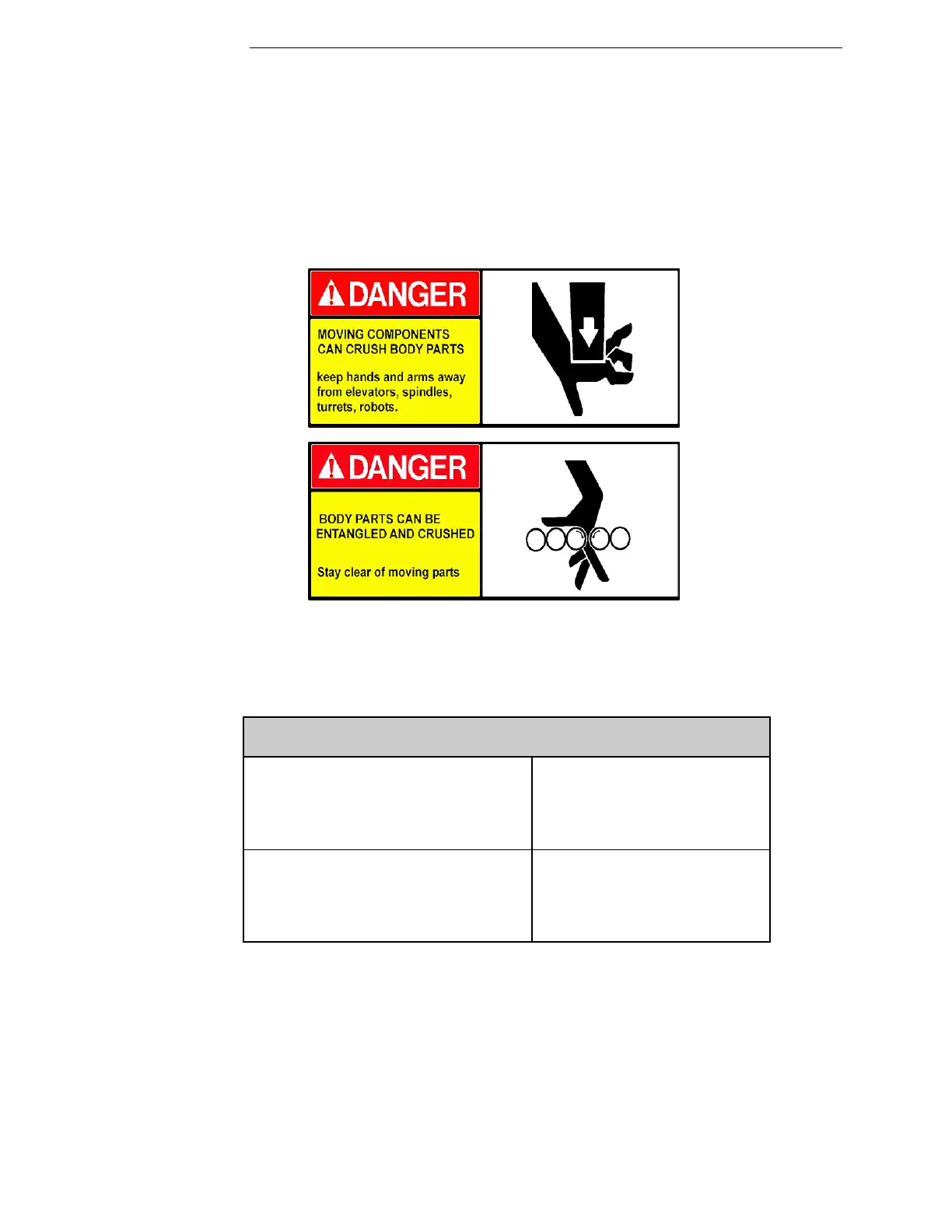

CALIBRATION VARIABLES SET DURING THIS PROCEDURE
125 Prog cond park position
Programmable conditioning arm
Nominal value: 0
The distance from the
programmable arm home position,
expressed in counts, to place the
arm directly over the conditioning
rinse tank.
126 Prog cond tbl center position
Programmable conditioning arm
Nominal values:
100000 for lift type arm
110000 for lever type arm
The distance from the
programmable arm home position,
expressed in counts, to place the
arm directly over the table center.
