Strasbaugh Software Calibration Procedures
Version 4.0 - February 1998 10 - 143

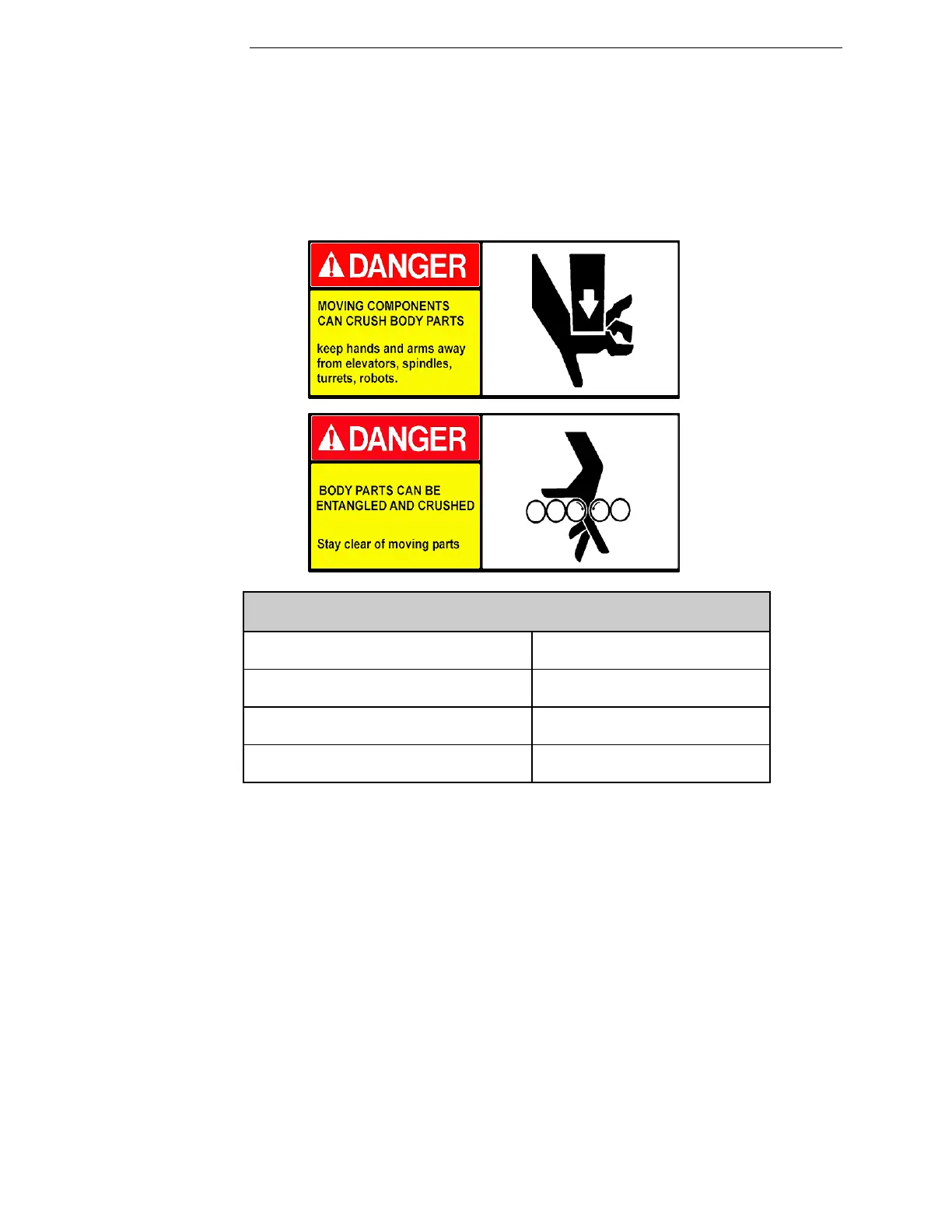

POLISH FORCE DEAD WEIGHT AND
SCALE FACTOR CALIBRATION
CALIBRATION VARIABLES SET DURING THIS PROCEDURE
33 Left force scale factor
Nominal value: 1
The "span" calibration for the left
spindle down force.
34 Left spindle dead weight
Nominal value: 140 lbs.
The "zero" calibration for the left
spindle down force.
43 Right force scale factor
Nominal value: 1
The "span" calibration for the right
spindle down force.
44 Right spindle dead weight
Nominal value: 140 lbs.
The "zero" calibration for the
Right spindle down force.
1. LEFT SPINDLE
A. BEFORE YOU BEGIN
Tools Required
• scale (for weighing carriers)
• Strasbaugh Load Cell Carrier Kit
• Sensotec Portable Indicator
• spacer block ( 1” x 4” x 4” steel shim)
• flat blade screwdriver
