User manual for M1-H0401
For more information, please visit our website www.en.streamax.com
8 - 10
Serial No.
Print
Description
1 Power DC 8-36 V power input
2 Sensor&Serial Interfaces of serial port and sensor
3 AHD1~4 Analog Audio & Video input 1-4
4 A/V OUT&CAN Analog Audio & Video output&CAN interface
5 IPC Interface of PON power supply
6
GPS
GPS antenna interface
7
WIFI
WIFI antenna interface
8
M
4G main antenna interface
9
D
4G sub antenna interface
warning:
External antennas are only suitable for antennas of type C6D-3000TKX placed in accessories boxes,
and other external antennas are prohibited from use. BT, WIFI supports a maximum antenna gain of 5
dBi. 4G band 2 supports a maximum antenna gain of -2.17 dBi, 4G band 4 supports a maximum antenna
gain of 0.26 dBi, 4G band 5 supports a maximum antenna gain of 0.01 dBi, 4G band 12 supports a
maximum antenna gain of -1.72 dBi, 4G band 13 supports a maximum antenna gain of 0.08 dBi, 4G
band 14 supports a maximum antenna gain of 0.36 dBi, 4G band 66 supports a maximum antenna gain
of 0.26 dBi, 4G band 71 supports a maximum antenna gain of -1.72 dBi,

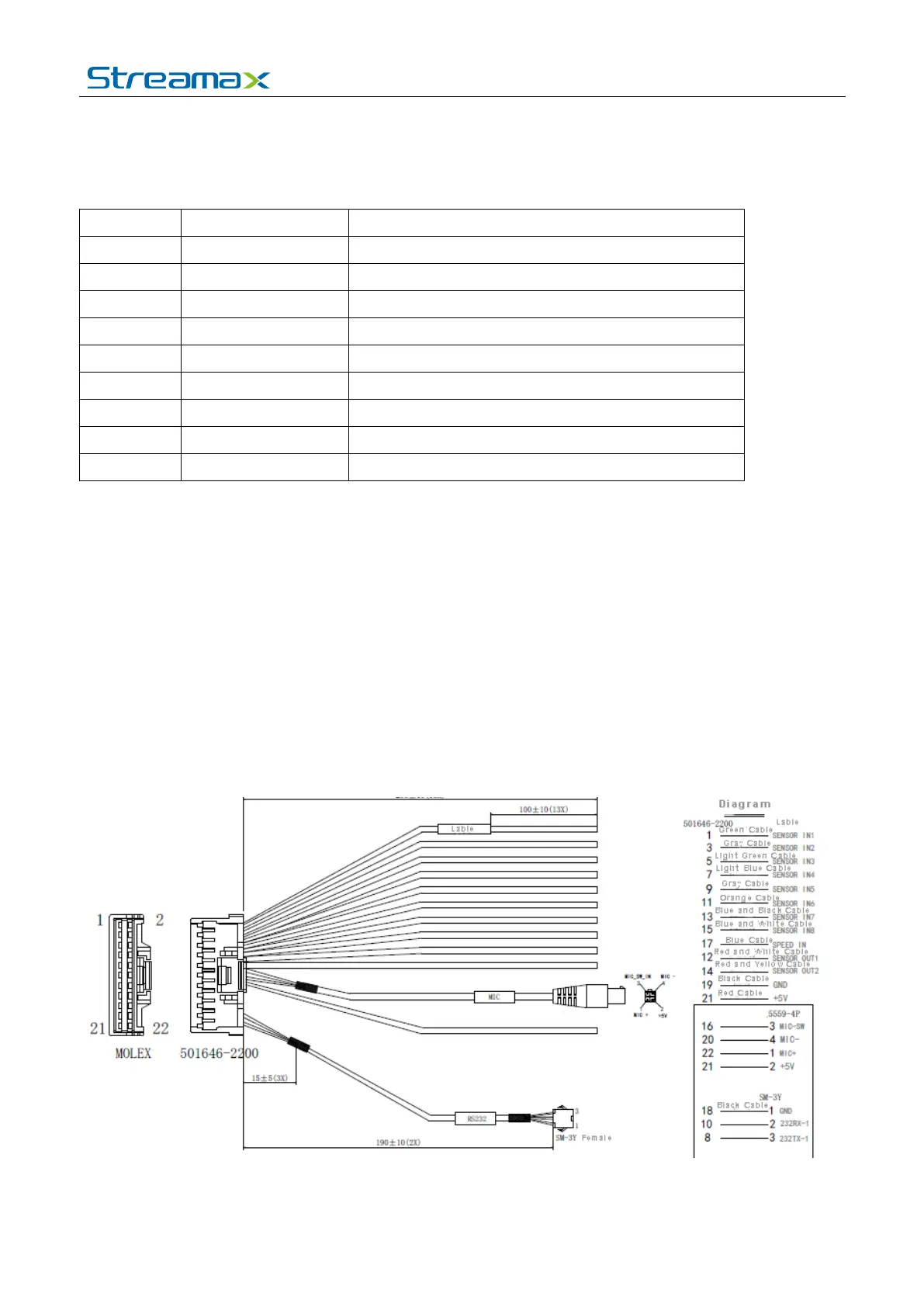

1.5. Definition and Pictures of External Cables
Alarm Cable Definition
