ENGLISH
Thank you for selecting the Vantage
®
II Series helmet-mounted LED ashlight. As with any ne tool,
reasonable care and maintenance of this product will provide years of dependable service.
Please read this manual before using your ashlight. It includes important safety and operating
instructions.
SAVE THESE INSTRUCTIONS. This guide contains important safety and operating instructions for
your Vantage
®
II series ashlight.
LED SAFETY
LED RADIATION (RG-2). DO NOT STARE INTO BEAM. MAY BE HARMFUL TO
EYES. PER IEC 62471 ED 1.0:2006-07.
BATTERY SAFETY
EXPLOSION RISK, BURN, AND FIRE HAZARD. DO NOT DISASSEMBLE,
CRUSH, SHORT CIRCUIT, HEAT ABOVE 212°F (100°C), OR DISCARD IN
FIRE. DO NOT RECHARGE BATTERY. KEEP AWAY FROM CHILDREN. BATTERY MUST BE
RECYCLED OR DISPOSED OF PROPERLY.
USE ONLY: Streamlight, Panasonic or Sanyo size CR123A; Duracell 123A, or Energizer 123A.

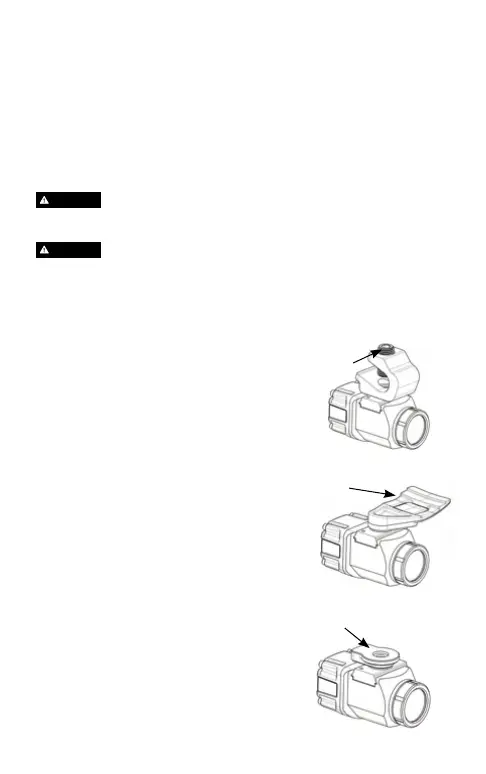

MOUNTING: FIRE HELMET
1. Select the desired position above or below the helmet brim.
2. Loosen the clamp locking screw.
3. Slide the clamp assembly over the brim of
the helmet and rotate it to the desired position.
4. Tighten the locking screw until the Vantage
®
II is securely
attached to the helmet using the hex key provided.
MOUNTING: INDUSTRIAL MOUNT
1. Insert locking tab into hard hat.
2. Push locating tab until assembly securely clicks.
3. To remove, depress tab and pull light from helmet.
MOUNTING: GALLET HELMET
1. Insert clamp in helmet slot until securely clicks
2. To remove, depress lock tab on helmet and slide rearwards.
CLAMP
LOCKING
SCREW
LOCKING
TAB
GALLET
CLAMP
CAUTION
CAUTION
