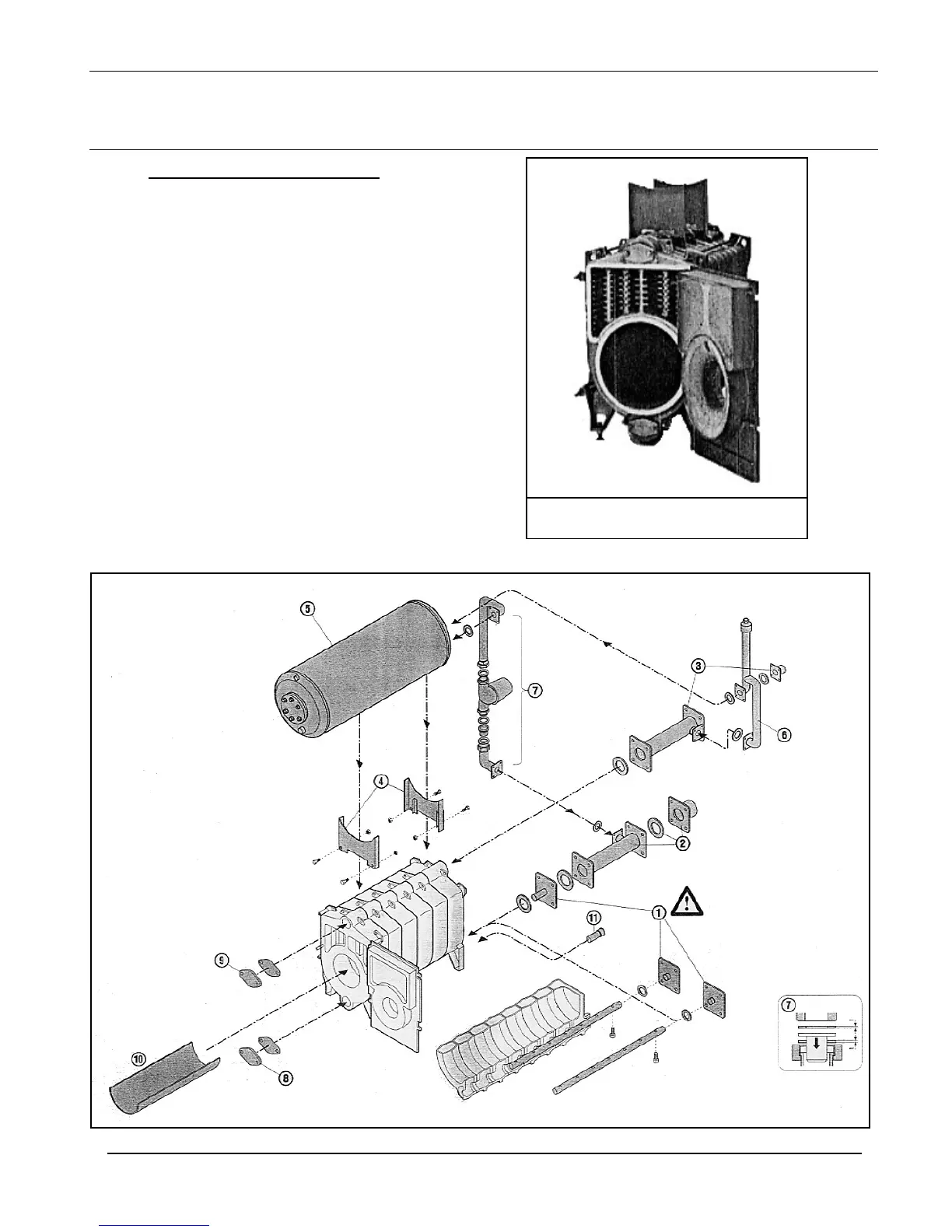

Calorifier assembly and connections:
1. Injector tubes (Note: Ensure the holes for the
direction of water are facing upwards.
2. Header for the return connection to calorifier.
3. Header for the flow connection to the
calorifier.
4. Calorifier mounting bracket.
5. Calorifier.
6. Pipework to calorifier (flow).
7. Pipework to calorifier (return).
8. Blank flange for return connection.
9. Blank flange for flow connection.
10. Reflector plate.
11. Injector tube.
Boiler block showing calorifier
ASSEMBLY INSTRUCTIONS FOR: Ca 7s / BCa 7s
