Strebel Ca 7s - Page 8

Page 8
23/03/01

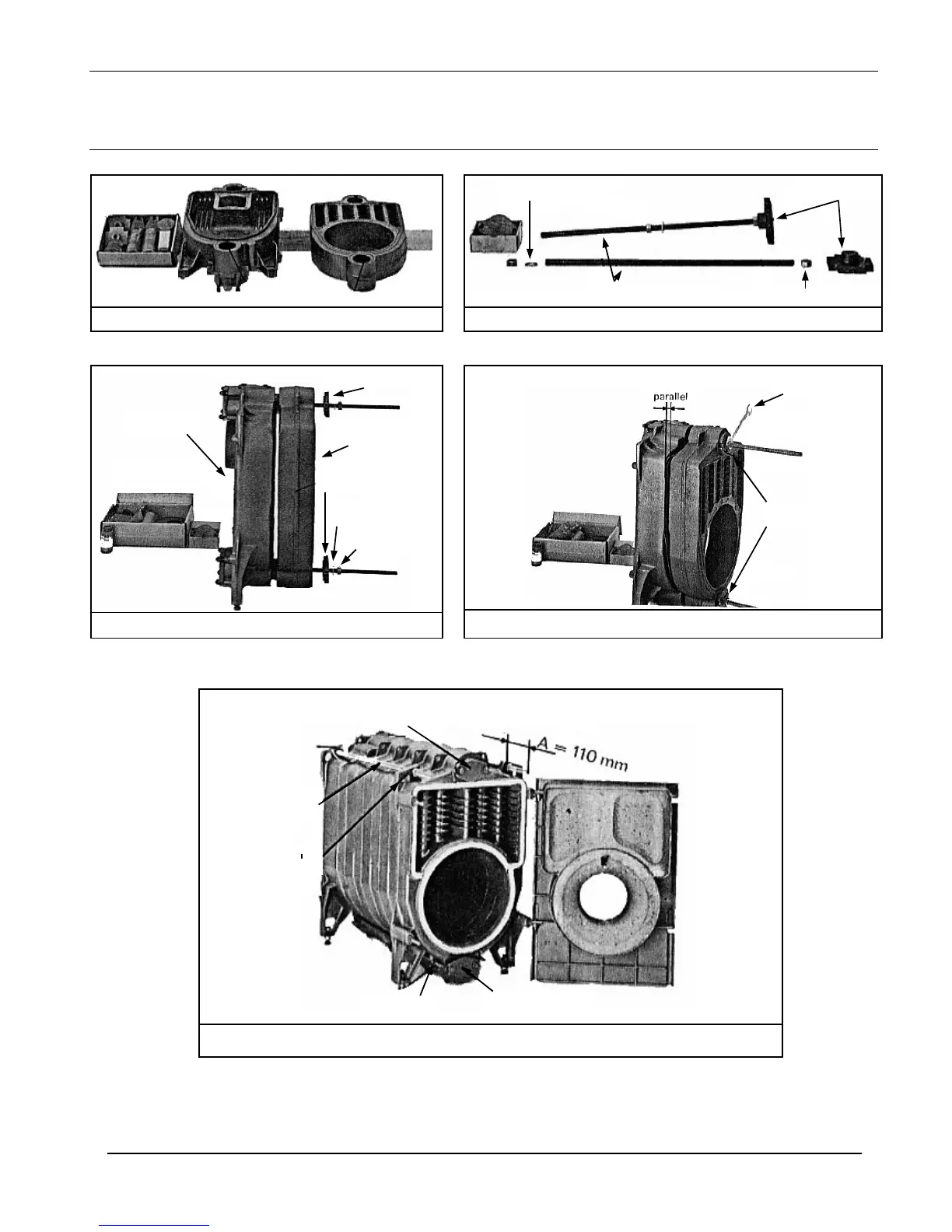

Rear and Intermediate sections Pulling-up Bars
Pulling-up Brass nut &
2 x M20 Pulling-up
M20 Steel nut
Locate nipples into nipple ports and take up slack
Pulling-up flange
1st Intermediate
section
Pulling-up
Brass
Brass
Rear
Spanner
Flange
Tighten flanges alternately until faces are touching.
Blanking Flange
Blanking Flange
Tie bar M12
Tie bar M20
Cast lug for tie bar
Once the boiler block is pulled up use the tie bars to secure as shown
ASSEMBLY INSTRUCTIONS FOR: Ca 7s / BCa 7s
