Strobel VEB100 Series Mechanic's Instructions

258.21.63en

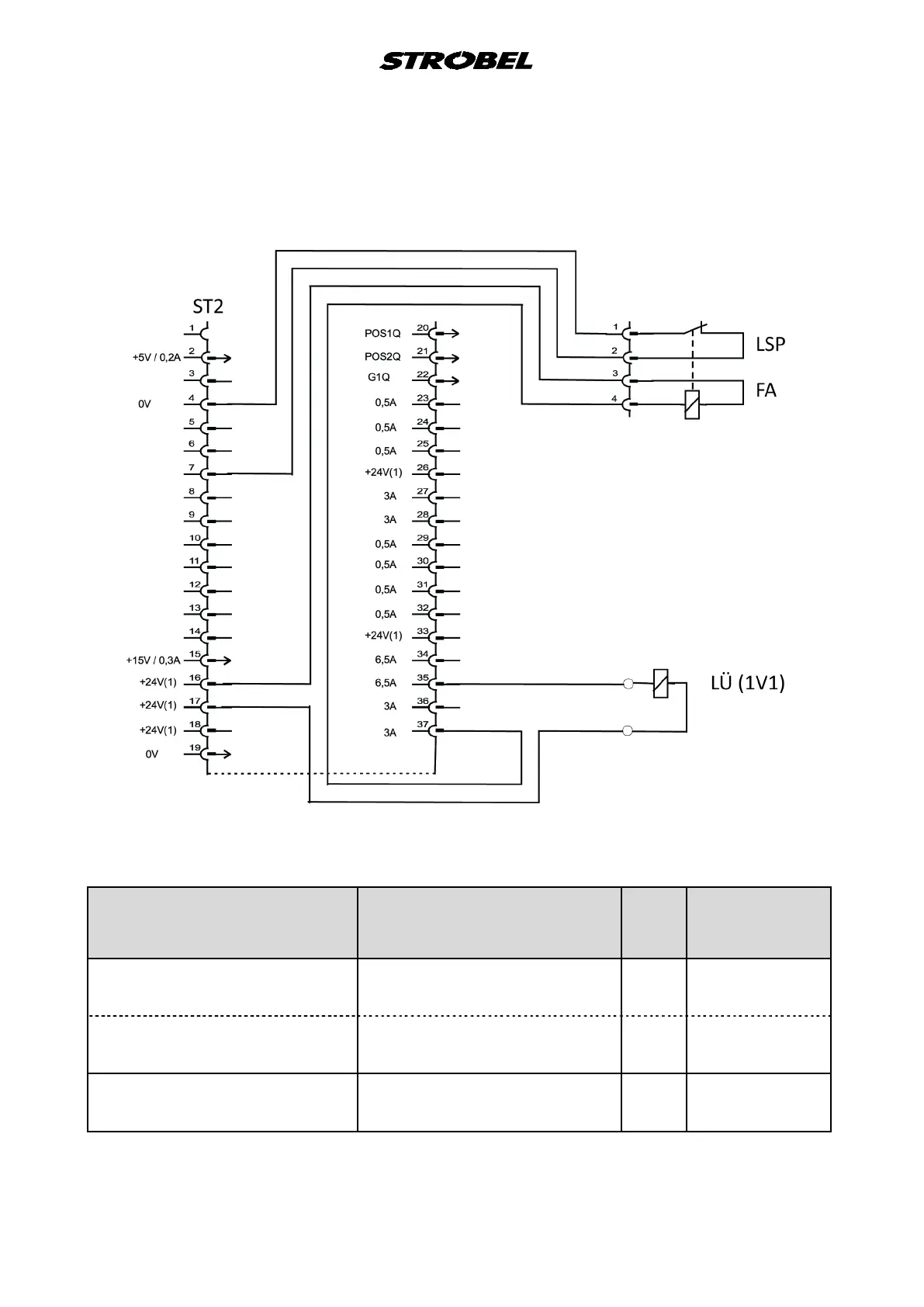

Electrical connection plan cl. 45, 58, 103, 120, 170, VEB
(DC1200-AB611A)
Control box Efka drive
(1) Nominal voltage 24V, idle voltage max. 30V
Designation
Strobel operating manual
Designation
Efka operating manual
PIN
37 pin
Sub-D
Colour code
connection cable
Thread trimmer (FA) Output 1 (M1) 37
16
yellow
brown
Run inhibition (LSP) Input 1 (IN1) 7
4
grey
blue
Lifting (LÜ) Press foot lifting (FL) 35
17
white
brown
