PART 1 • English

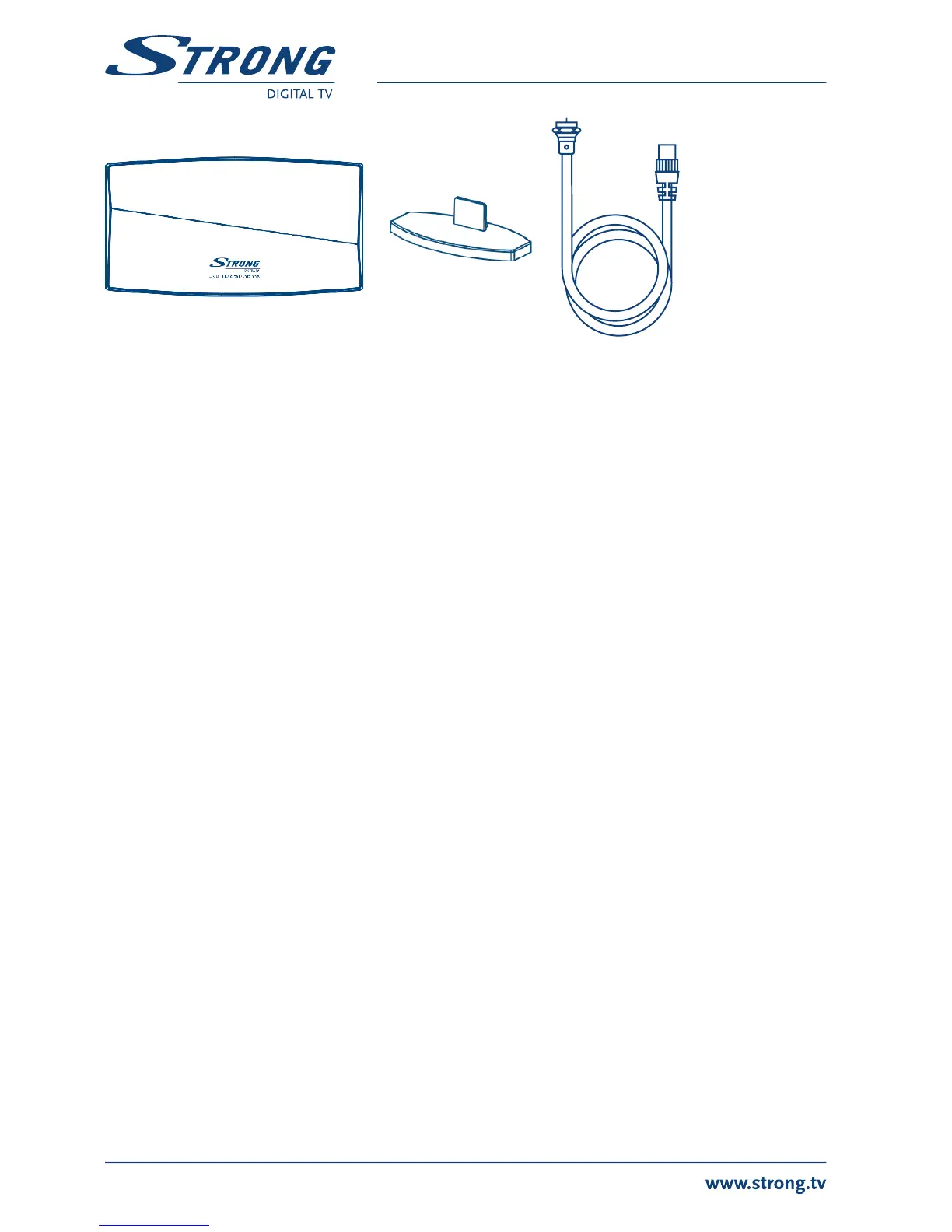

Main unit Standing Unit Coaxial Cable
3.0 SAFETY NOTES
n Use only originally supplied accessories
n Before you make any connections: disconnect your equipment from the 230 V
main power to avoid electrical shocks during installation
n Short Circuit in the coaxial cable MAY permanently damage your Digital Receiver
n Never install the Antenna outside your house or in humid rooms such as bathrooms
n Never use AC Adaptors with wrong specifications, this MAY permanently damage
your antenna or Digital Receiver. Always check voltages and polarisation of the
adaptor before connecting it
4.0 CONNECTING THE ANTENNA
n Check if the broadcast in your country is Horizontal or Vertical polarized
n Click the Antenna in the plastic holder as shown in the pictures
n Disconnect your Digital Receiver from the 230 Volts main power
n Connect the Supplied RF cable to the antenna: carefully press the inner lead of the
cable into the Female-F connector at the back of the antenna. Turn the covering
nut clockwise with your HANDS until it is fixed
n Connect the other side of the RF cable to your Digital Terrestrial Receiver. Normally
the input connector on your receiver is marked as “ANT” (in) or as “RF”(in)
n Connect your Digital Receiver to the 230 Volts main power.
