25
Attachment screws
(torx)
Filter cover
Filter element
The air suction ¿ lter is to be checked at least once a year or after use in a dusty environment.
The ¿ lter can be checked from the outside if the battery is removed (see illustrations below).
If the ¿ lter is severely contaminated, it will need to be replaced.
The removable ¿ lter cover is located on the outside at the rear housing where it is ¿ xed with
two screws.
Procedure:

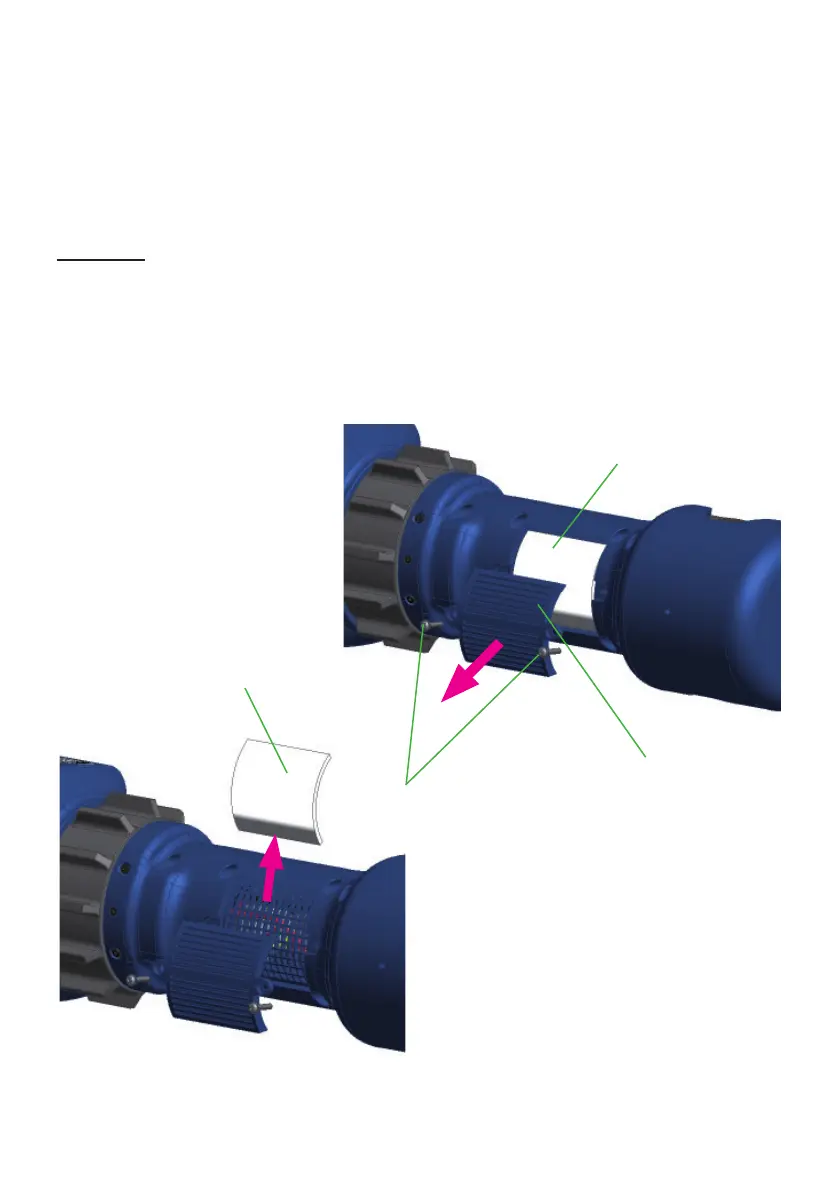

1. Unscrew the two attachment screws at the cover with a torx wrench/screwdriver (TX 15)
and take the cover off (see illustration below).
2. Now you can take out the ¿ lter element and replace it by a new one.
3. Reassembling will be carried in reverse order.
Do not exceed the torque of 1.5 Nm (13 lbf·in.), to avoid damaging the thread or housing.
9.3 Checking and exchanging the ¿ lter element
Filter element
