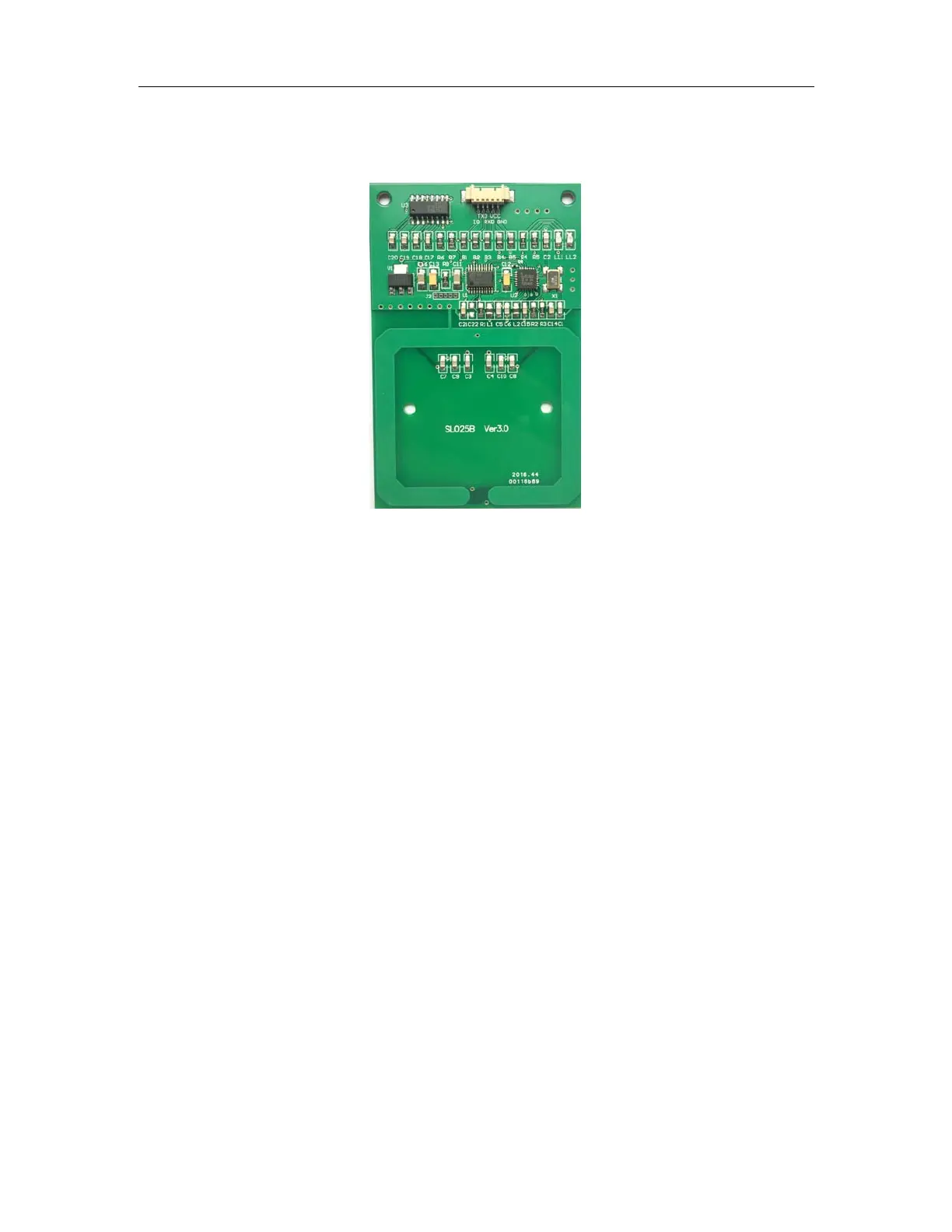

StrongLink SL025B
http://www.stronglink-rfid.com
1. MAIN FEATURES
• Tags supported: Mifare 1k, Mifare 4k, Mifare UltraLight and NFC
NTAG203
• Auto-detecting tag, Built-in antenna
• RS232 interface, baud rate 9,600 ~ 115,200 bps
• 4.4 ~ 12.0VDC power supply
• Work current less than 80mA
• Operating distance: Up to 70mm, depending on tag
• Storage temperature: -40 ºC ~ +85 ºC
• Operating temperature: -25 ºC ~ +70 ºC
• Dimension: 86 × 55 mm
• Two LEDs, green led is auto light when tag in detection range, red led
is controlled by host
• The OUT pin at low level indicates tag in detective range, and high
level indicating tag out
• Support IAP firmware update
