Shelf Assembly
Shelf Bracket
11
R
888 Porter Rd. Muskegon, MI 49441 Phone: 231.798.8888 Fax: 231.798.4960 www.structuralconcepts.com

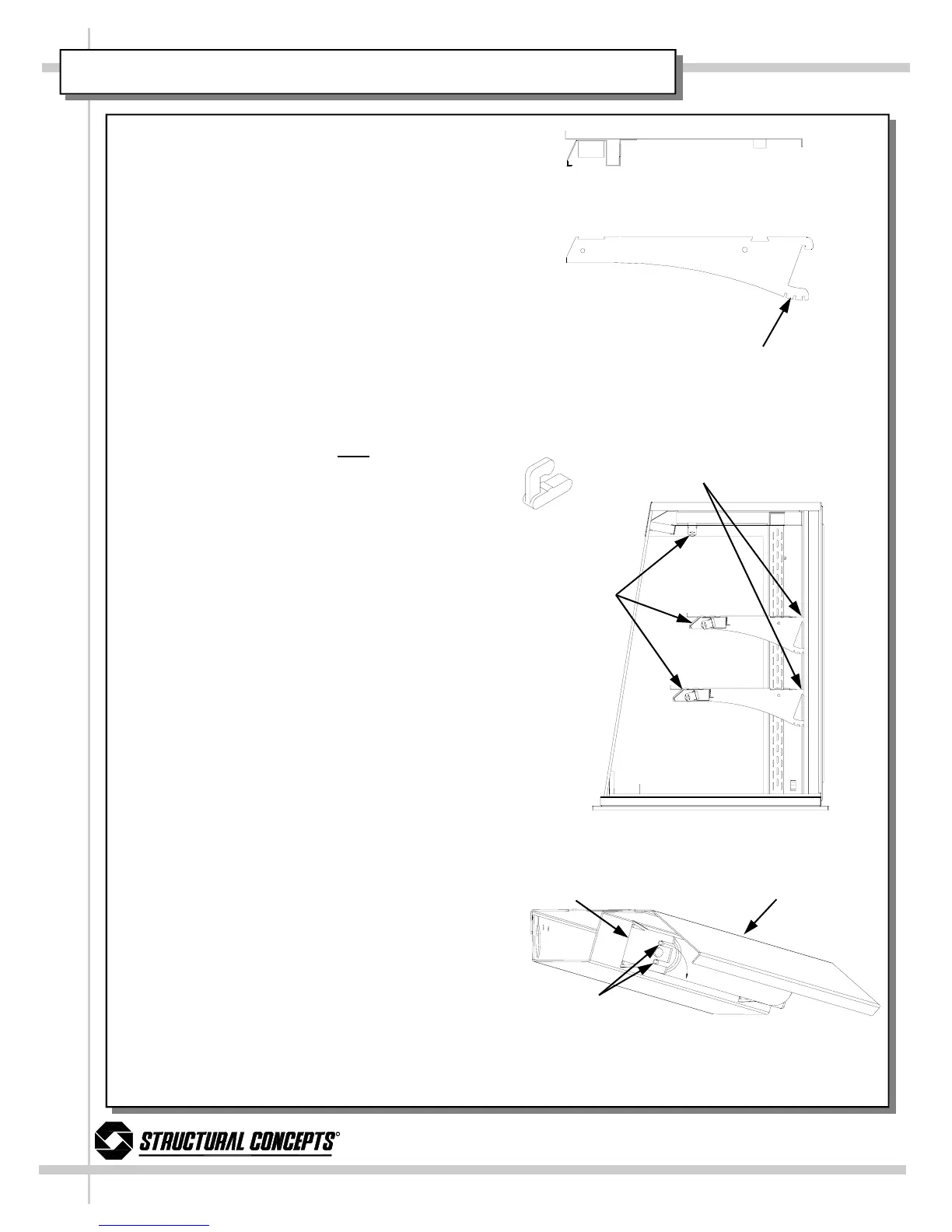

MAINTENANCE FUNDAMENTALS
Adjustable Shelf
• Adjustment of the angle of the shelves can be
made by pivoting the lower portion of the shelf
bracket in the upright.
• The shelves can be adjusted to an angle of: 0,
5, and 10 degrees.
• See illustration at right.
Shelf Assembly Removal
• Shelves can be removed for cleaning or ad-
justments
• For lighted shelving, turn off power, unplug the
light cord.
• Lift shelf straight up to separate from brackets.
• Remove brackets. Note it may be necessary
to remove the nylon shipping bracket retainer.
Pliers will be required to accomplish this task.
Light Fixtures
Light fixtures are located at the top inside of case
(from the front) and may be provided on the un-
derside of each shelf assembly
Removal of lamp:
• Rotate lamp (1/4 turn) so that pins are aligned
in slots and remove bulb.
Installation of lamp:
• Align pins with slot.
• Insert pins into socket and rotate 1/4 turn to
secure pin contacts in socket.
See illustration at lower right.
Lamp Pins
Light Socket
Light Fixture
Bracket Retainers
Light Fixtures
Adjustment
Notches
