LOWER LOUVERED FRONT PANEL REMOVAL (SCREW REMOVAL) - PAGE 2 of 2
2. Removing Lower Louvered Front Panel From Case - Screw Removal Method

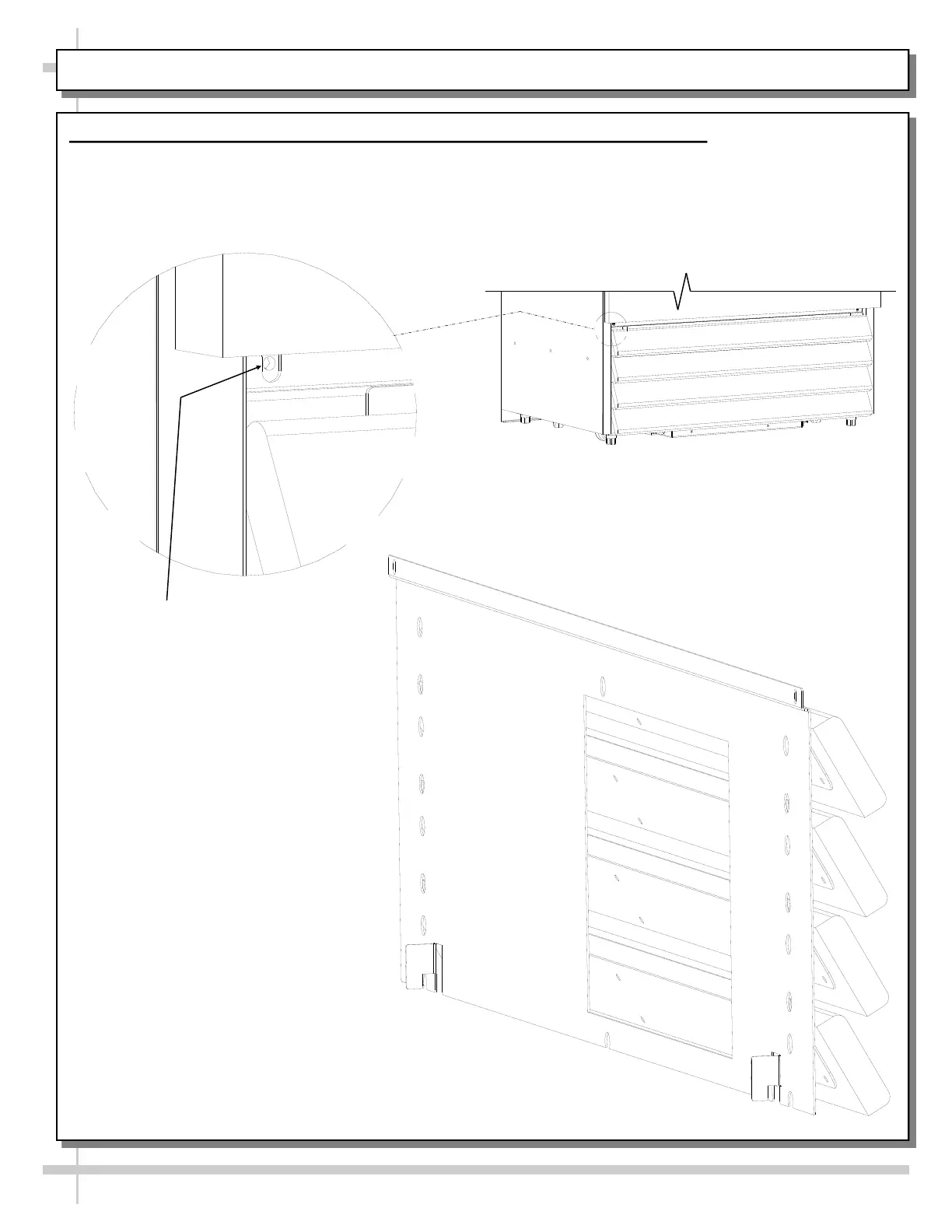

Remove two (2) screws holding lower louvered front panel to case. See illustration below.
Grasp front panel slats and lift upward and away from case.
See illustrations below.
See next page for access to temperature controller (after removal of lower louvered front panel)
Front Panel
Screw Location
(one at each end)
To Next Page
