To Select Settings:
The HOME screen is where most user interaction will take place. Up to three handpieces may be displayed on the
screen simultaneously. When the console is initially turned on, the console settings are factory default settings until a
user preference file is selected or the settings are manually modified.

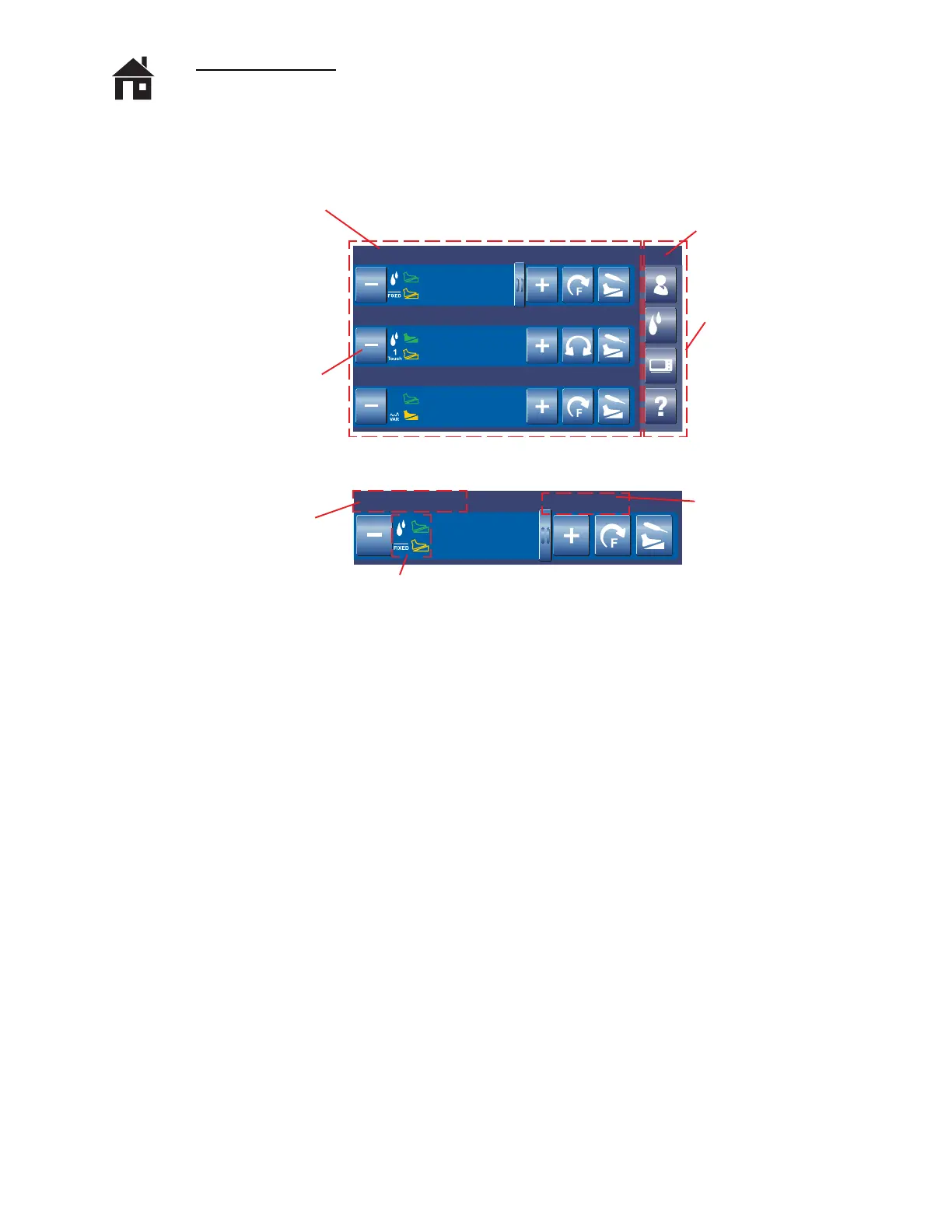

Figure 7. Home Screen - Overview
65000
SABER DRILL
1520
FORMULA HANDPIECE
40%
CORE HIGH TORQUE
Coring Tool
ACL
Attached Handpieces
Three handpieces may
be attached to the
console and two may
be operated simulta-
neously.
Handpiece Operating Area
View and modify key
handpiece settings.
Console Operating Area
Access key console
functions.
View User Preference File Name
View name of file that contains
handpiece settings for a specific
procedure, for example, ACL
(Anterior Cruciate Ligament)
surgery.
View Handpiece Name
View name of active
handpiece. Three
handpieces may be
connected and displayed.
Two powered handpieces
may be operated from the
same console,
simultaneously.
View Cutting Accessory or
Attachment Name
View cutting accessory or
attachment name if the
handpiece, accessory and/or
attachment have been
selected or have recognition
capability.
View Option Settings
View option settings such as irrigation,
footswitch control, and fixed or variable RPM
(revolutions per minute). All of these settings
may be modified.
NOTE: If the console screen is touched in two places simultaneously, unintended button activation may result.
