26
To Adjust the Console Options: - Standard and Advance User Mode
From the Adjust Options screen, touch the Adjust Console Options button to access console adjustments and settings.
To Adjust Audio/Video Controls - Standard Mode
To Adjust Irrigation Pump Settings:
NOTE: If using the irrigation pump, assemble the irrigation pole to the mounting bracket located on the back of the
console. Hang the irrigation bag from the pole. Install the irrigation cassette into the console pump. Attach the
irrigation clips onto the handpiece and connect the tubing.
From the HOME screen, touch the Adjust Irrigation Pump Settings button to adjust and apply an irrigation flow rate to a
handpiece cutting accessory. AUTO PRIME and FLUSH options are also provided.
Adjust irrigation pump settings - no pump cassette
CORE HIGH TORQUE
SABER DRILL
FORMULA HANDPIEC
36 %
75 %
Adjust Irrigation
% Setting
• Touch the slide
bar or plus/
minus buttons to
adjust the flow
rate percentage
of irrigation [1 to
100% or OFF] to
the cutting
accessory of the
handpiece.
• At 100%,
irrigation to the
handpiece is set
to maximum
flow rate. The rate
decreases as the
setting approaches
zero.
FLUSH Tubing Set - Touch and hold to provide a continuous flow
rate
of 300 mL/min with no irrigation clip and a minimum pressure of
30 psi when the tubing is blocked.
AUTO PRIME
Tubing Set
• Touch to activate
the priming
sequence of the
installed irrigation
cassette.
• The tubing will be
primed from the
pump head to the
irrigation tip.
Select Handpiece
• Touch one or all of the handpiece buttons to allow activation of the irrigation pump. If no buttons are selected, the pump
will not operate.
• Activation will apply an irrigation flow rate to the handpiece cutting accessory.
• The flow rate will depend on the type of handpiece.
• Activating a handpiece will gain control of the console irrigation. While the first activated handpiece is running,
activating another handpiece will not change pump flow, but may reduce irrigation to the first handpiece if a dual
disposable irrigation cassette REF 5400-050-002 is used. To gain complete control of console irrigation, stop the first
handpiece and activate the other handpiece.

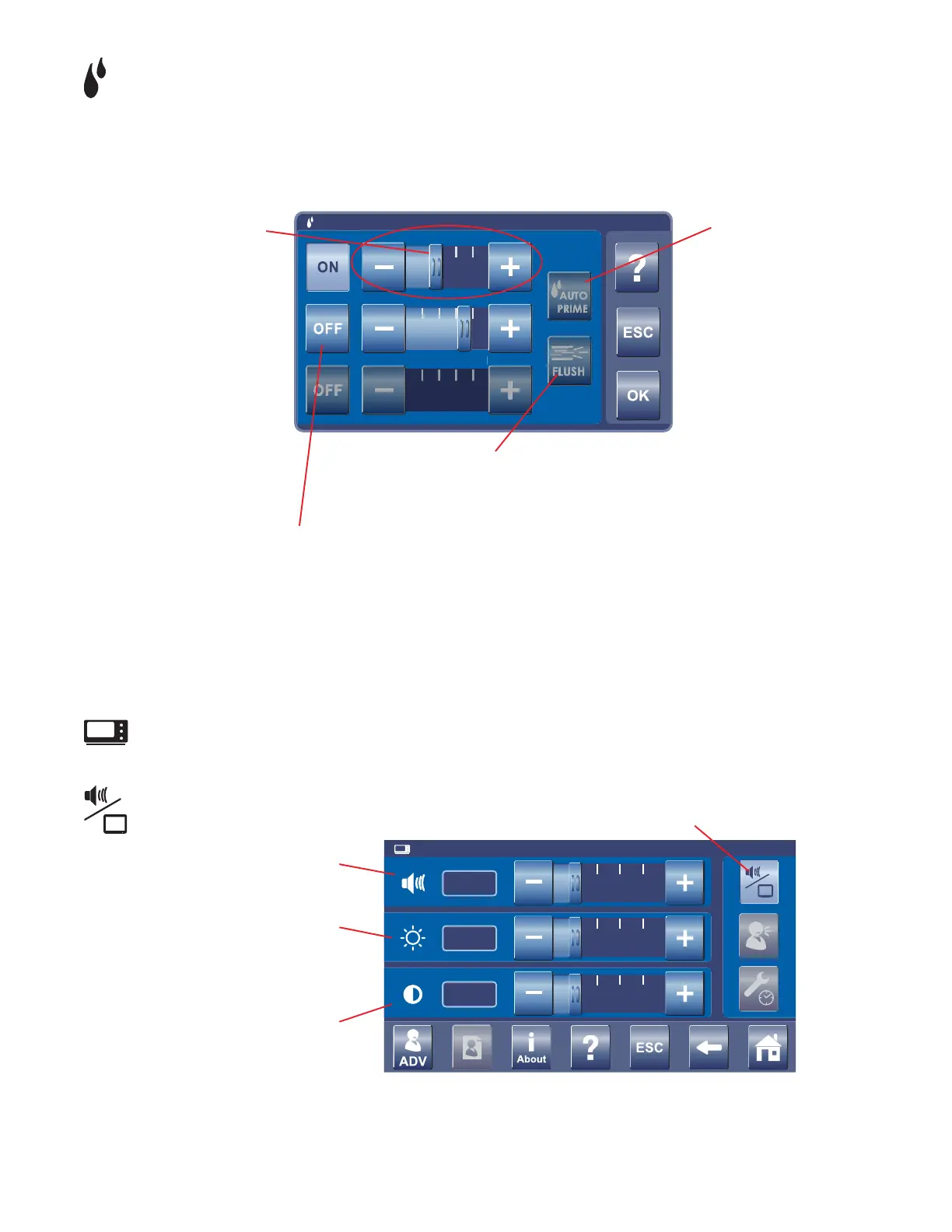

Figure 19. Adjust Irrigation Pump Settings Screen
Adjust console options
23 %
23 %
23 %
Adjust Volume
Touch the slide bar or plus/
minus buttons to adjust the
percent of console volume
[0 to 100%].
Adjust Contrast
Touch the slide bar or plus/
minus buttons to adjust the
percent of console display
contrast [0 to 100%].
Adjust Brightness
Touch the slide bar or plus/
minus buttons to adjust the
percent of console display
brightness [0 to 100%].
Figure 20. Adjust Console Options Screen - Standard User Mode
Touch the button to adjust the
console controls.
To Next Page
