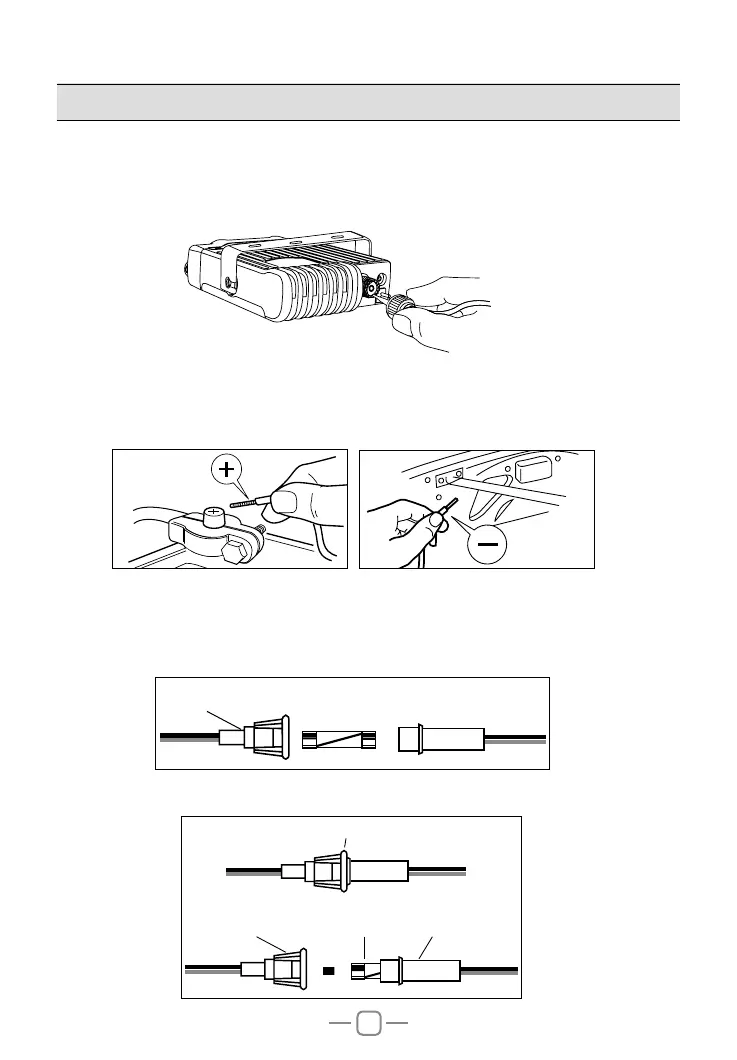

4.02 Antenna connection
4.03 Power connection
Note: Never press PTT before install the antenna, it might burn the final transistor.
1. Screw on the antenna into antenna jack.
2. To make full use of this radio, it is necessary to locate the antenna in a well
grounded place, and well adjust the SWR.
* Please enquiry the local dealer for choosing and intallation of suitable antenna.
This radio requires a 13.2V DC power supply (14.2V DC is ideal)
Connect the red wire to the positive terminal of the battery, and the black wire to the
negative terminal of the battery.
4.04 Fuse replacement
This radio adopt 5A, 250V fuse
1. Open the fuse holder
, 250V FUSE
IN-LINE
FUSE HOLDER
2. Replace the fuse and screw on the holder.
FUSE
IN-LINE
FUSE HOLDER
IN-LINE
FUSE HOLDER
IN-LINE
FUSE HOLDER
